For automotive procurement managers and OEM engineers, the distinction between ball joints and tie rods goes beyond simple geometry; it defines the chassis’s durability profile. While metal fatigue is a known variable, premature field failures—often driven by seal degradation and lubricant loss—remain the primary cause of warranty claims and supply chain disruptions.
The fundamental difference lies in their kinematic function: Ball Joints act as the vertical pivot points connecting the control arm to the steering knuckle, allowing suspension articulation. Tie Rods serve as the horizontal transmission linkage, transferring steering force from the rack to the wheel. While both utilize a ball-in-socket design, their load vectors and failure modes differ significantly.
Ball Joint vs Tie Rod Anatomy
Understanding these differences is critical for sourcing components that meet IATF 16949 standards. Below, we dissect the engineering roles, location dynamics, and the critical material science behind their longevity.
Smoothing out the bumps: The Chassis Ecosystem
Suspension systems are not static; they are dynamic kinetic chains that must manage forces in three dimensions simultaneously. When a vehicle traverses uneven terrain, the wheels must move vertically (jounce and rebound) while maintaining the driver’s intended steering angle.
The synergy between ball joints and tie rods makes this possible. They are the "connective tissue" of the chassis. A failure in either component compromises vehicle handling and safety. However, from a manufacturing standpoint, achieving a "smooth ride" isn’t just about machining steel; it is about managing friction coefficients and ensuring that the grease inside these joints remains uncontaminated for the vehicle’s entire lifecycle.
Chassis Suspension Geometry
Where are ball joints and tie rods located?
Identifying the correct component location is the first step in failure analysis and quality control.
Ball Joints:
These are typically pressed or bolted into the Control Arms (upper and lower). They connect the control arm to the Steering Knuckle. In a MacPherson strut setup, you will usually find one lower ball joint per side. In a Double Wishbone setup, there are both upper and lower ball joints. They bear the weight of the vehicle and the force of the suspension movement.
Tie Rods:
These are located between the Steering Rack (or Gearbox) and the Steering Knuckle. They are divided into two parts: the "Inner Tie Rod" (attached to the rack) and the "Outer Tie Rod" (attached to the knuckle). They do not bear the vehicle’s vertical weight but sustain immense tension and compression loads during steering maneuvers.
Component Location Map
What do ball joints do?
Ball joints are the heavy lifters of the suspension system. They function similarly to the human hip joint, allowing the steering knuckle to pivot rotationally (for steering) and vertically (for suspension travel).
Dive Deeper: The "Achilles Heel" – Why Dust Boots Determine Lifespan
While the industry often focuses on the metallurgy of the ball stud—typically 40Cr steel with high-frequency quenching—GJBUSH data indicates that over 80% of ball joint failures are not metallurgical. They are caused by the degradation of the rubber dust boot.
Standard aftermarket manufacturers often utilize Natural Rubber (NR) blends for cost reduction. While NR has excellent mechanical properties, it suffers from poor resistance to oil (swelling) and ozone (cracking). Once the boot cracks, water and road grit intrude, creating an abrasive paste that grinds down the polymer bearing and leads to the dreaded "clunking" noise and play.
At GJBUSH, we mitigate this risk by utilizing Chloroprene Rubber (CR) for our dust boots.
CR offers superior chemical resistance to the Lithium-based molybdenum disulfide grease used inside the joint. Furthermore, our CR formula is engineered to maintain flexibility across a temperature range of -40°C to 120°C, ensuring the seal does not become brittle in winter or soft in summer.

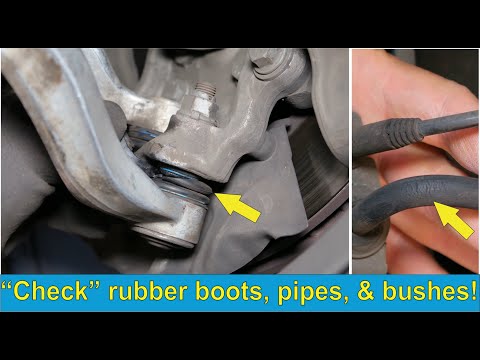

I recently analyzed a test video that perfectly illustrates the importance of rubber integrity in these components.
In this video (specifically around the 1:30 mark), you can see the technician physically squeezing and inspecting the rubber boots. He notes that any sign of cracking or "dry rot" is an immediate failure criteria. This manual check mimics the constant cyclical stress the rubber endures on the road.
The GJBUSH Advantage:
To prevent the failures seen in the video, we employ a high-precision injection molding process for our boots rather than standard compression molding. This allows us to control the wall thickness with micron-level precision, eliminating weak points (stress risers) where cracks typically initiate during articulation. Additionally, we use triple-lip sealing designs that mechanically lock onto the stud and housing, ensuring that even under extreme articulation angles, the seal remains airtight. For OEMs, this translates to reduced warranty costs and higher brand reliability.
What do tie rods do?
Tie rods are the transmission lines of the steering system. When the driver turns the steering wheel, the steering rack moves laterally. The tie rods transmit this linear motion to the steering knuckle, forcing the wheels to turn.
Because they are responsible for alignment (Toe-in / Toe-out), even a small amount of wear in the tie rod ball socket results in vague steering feel, wandering, and uneven tire wear. Like ball joints, they utilize a ball-in-socket design, but the range of motion is generally more restricted to the horizontal plane.
Tie Rod Assembly
How do the ball joints and tie rods work together?
The relationship between these components is symbiotic. As the vehicle travels down the road:
- The Ball Joint accommodates the vertical bumps, allowing the wheel to move up and down without breaking the suspension arm.
- The Tie Rod adjusts its angle slightly to accommodate this up-and-down movement while keeping the wheel pointed straight.
If the Ball Joint is stiff or seized (due to poor surface finish or lack of grease), it increases the load on the Tie Rod, potentially causing the tie rod to bend. Conversely, a loose Tie Rod introduces vibration that accelerates wear on the Ball Joint.
From a manufacturing perspective, the breakaway torque (the force required to start moving the stud) must be harmonized. GJBUSH engineers use polished ball studs (Ra 0.4 or better) and POM (Polyoxymethylene) engineering plastic seats to ensure low friction and consistent torque, ensuring the driver feels a smooth, connected response rather than a "notchy" resistance.
Conclusion
While Ball Joints and Tie Rods serve different kinematic roles—vertical support versus lateral steering—they share a common dependency on manufacturing precision and material integrity. For OEMs and Purchasing Managers, the differentiator is rarely the steel itself, but the rubber sealing technology that protects it.
At GJBUSH, we combine IATF 16949 compliant metal processing with advanced Chloroprene Rubber (CR) formulations to produce chassis parts that survive the harshest environments. Don’t let a $0.50 rubber boot compromise your $50,000 vehicle.
Ready to upgrade your chassis component durability? Contact our engineering team today for a custom material review and sample comparison.
