Procurement managers sourcing NVH components often face a critical bottleneck: premature rubber-to-metal bonding separation under high dynamic loads, leading to catastrophic field failures and costly warranty claims. Inconsistent batch quality actively destroys PPAP compliance.
GJBUSH engineers eliminate delamination risks by implementing a strict micro-crystalline phosphating process and automated Chemlok adhesive application, ensuring that the peel strength exceeds the ultimate tear strength of the rubber compound itself.

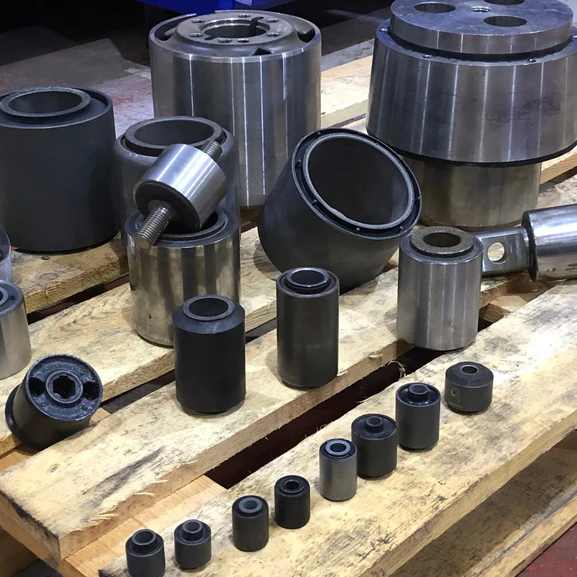

Rubber to Metal Bonded Bushing
Understanding the exact factory floor engineering behind these vibration control units is essential for maintaining strict IATF 16949 standards across mass production runs.
What is a Rubber Bushing?
When chassis systems experience intense multi-directional forces, poor vibration isolation leads to harsh ride quality and accelerated metal fatigue across the vehicle frame.
A rubber bushing acts as a dynamic isolator, absorbing radial, axial, and torsional loads while dampening high-frequency vibrations transmitted from the road to the chassis.

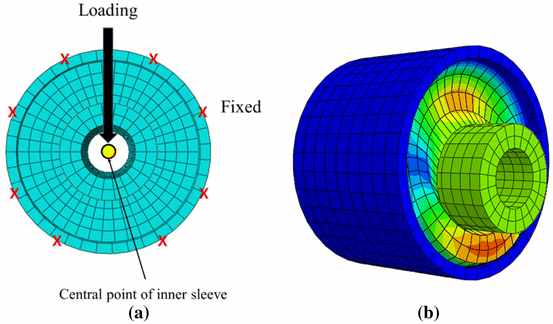

Rubber Bushing Stiffness Vectors
Manufacturing Process of Rubber Bushings
Generic manufacturing processes often overlook surface preparation, resulting in hidden micro-voids at the bonding interface that only reveal themselves during rigorous MTS fatigue testing.
The factory-level manufacturing process involves precise metal pipe cutting, deep degreasing, multi-stage surface treatments, adhesive coating, and high-pressure rubber injection vulcanization.

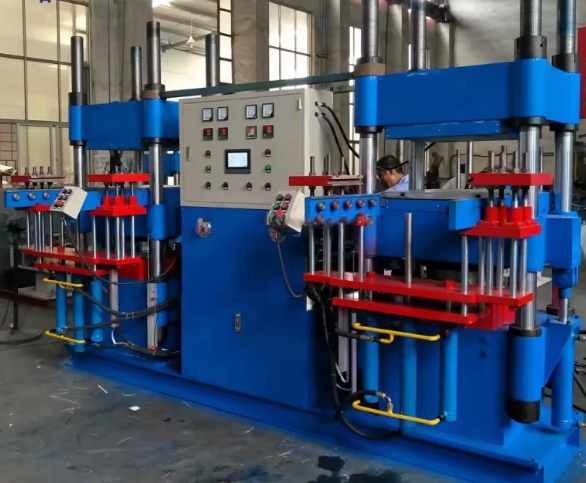

Vulcanization Press for Bushings
At the GJBUSH 27,000 square meter facility, we understand that optimizing the vulcanization curve means nothing if the metal substrate is not perfectly prepared. The primary cause of NVH component failure is rarely the rubber compound tearing; it is almost always the adhesive layer peeling away from the metal under continuous dynamic stress. To combat this, we utilize a strict phosphating process that creates a uniform micro-porous surface on both the inner and outer metal sleeves. This drastically increases the mechanical locking area for the bonding agent.
Following surface treatment, we apply industry-leading Chemlok adhesives using automated spray systems to guarantee a precise, micron-level thickness. If the coating is too thick, the adhesive layer fractures under shear stress; if it is too thin, bare metal spots cause immediate bonding failure. By tightly controlling this application alongside the subsequent mold temperature and pressure distribution, we ensure exceptional mass production consistency. When our Tier 1 clients conduct their FMEA, they can be confident that our bonding process fundamentally lowers the Risk Priority Number for delamination.
I recently analyzed a test video demonstrating the industry-standard evaluation method for this exact bonding strength.
Materials Used in Rubber Bushings
Specifying the wrong elastomer compound leads to early degradation from ozone exposure or rapid changes in dynamic stiffness when operating temperatures fluctuate.
Premium NVH bushings utilize engineered Natural Rubber formulations with optimized carbon black ratios to balance fatigue life and damping coefficients, permanently bonded to high-tensile steel or aluminum sleeves.

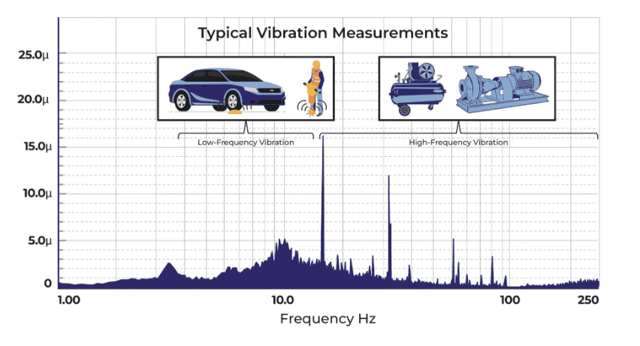

NVH Elastomer Materials
What are the Types of Rubber Bushings?
Choosing a generic isolator for a complex multi-link suspension often results in compromised radial stiffness and unacceptable articulation angles during operation.
Common variants include standard cylindrical bushings for control arms, flanged bushings for shock absorbers, and hydro-bushings featuring fluid-filled cavities for complex, frequency-dependent damping.

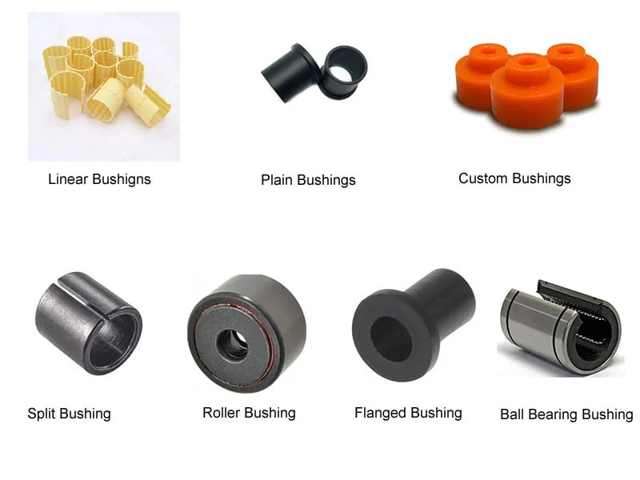

Types of Rubber Bushings
Applications for Rubber Bushings
Substandard vibration isolators in heavy-duty or high-torque environments lead to excessive engine movement and premature powertrain wear.
These critical NVH components are heavily deployed in suspension control arms, subframe mounts, engine and transmission mounts, and exhaust hangers across passenger vehicles and commercial transit systems.

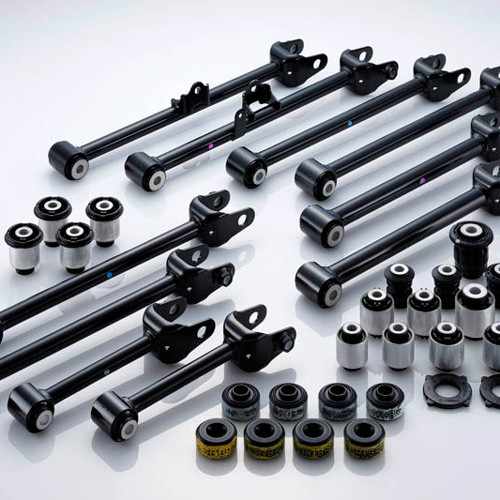

Suspension Bushing Application
Conclusion
Partnering with a reliable Tier 2 manufacturer like GJBUSH eliminates the supply chain anxiety associated with NVH component sourcing. With our 27,000 square meter factory, fully equipped in-house NVH laboratory, and unwavering adherence to IATF 16949 standards, we deliver mass production consistency that meets the exact specifications of demanding OEMs like Ford and Segway-Ninebot. Contact our engineering team today to discuss your specific NVH requirements, fatigue life targets, or to request a custom PPAP sample review.
