Suspension noise and handling instability are among the top warranty complaints faced by automotive OEMs and fleet managers today. While effective diagnostics can solve immediate repair needs, understanding the root cause of bushing failure is critical for sourcing durable components that survive the warranty period.
A car suspension bushings is a vibration-isolating component consisting of a specific rubber compound bonded between two metal sleeves. It acts as a flexible joint that absorbs road energy while maintaining suspension geometry. Unlike rigid metal connections, these "silent blocks" facilitate movement without friction, preventing metal-to-metal contact and significantly reducing Noise, Vibration, and Harshness (NVH) transmission into the cabin.
Suspension Bushing Structure
For purchasing managers and engineers, distinguishing between a cosmetic surface crack and a structural bond failure is the first step in quality control.
What are the functions of car suspension bushings?
Suspension bushings serve as the critical interface between the vehicle’s frame and its moving suspension components, such as control arms, stabilizer bars, and transmission mounts.
Their primary function is to permit limited motion on specific axes while restricting unwanted movement on others. This "tuned compliance" allows the suspension to absorb bumps (vertical travel) while keeping the wheels aligned during cornering (lateral stiffness). Furthermore, they act as a damping barrier, filtering out high-frequency road noise that would otherwise resonate through the chassis. In transmission applications, they manage torque reaction forces, preventing engine vibration from shuddering through the vehicle body.
Bushing Force Distribution
Without high-quality bushings, the vehicle’s suspension would be rigid, loud, and prone to rapid fatigue damage due to unmitigated stress transfer.
What are the symptoms of damaged bushings?
When rubber compounds age or the bonding agent fails, the bushing loses its ability to constrain movement, leading to immediate feedback in vehicle dynamics.
The most common symptom is an audible clunking or knocking noise when driving over irregularities or braking. Beyond noise, drivers will experience "steering wander," where the vehicle drifts without steering input, or uneven tire wear caused by dynamic alignment shifts. In severe cases of transmission bushing failure, you may feel excessive vibration in the gear shifter or floor pan during acceleration.
I recently reviewed a diagnostic video that perfectly illustrates the auditory and visual signs of a failed control arm bushing. Note the metal-to-metal contact sound:
Recognizing these symptoms early prevents collateral damage to more expensive components like the steering rack or transmission housing.
How to check if suspension bushes need replacing?
Accurate diagnosis requires a combination of dynamic road testing and static physical inspection under the chassis.
A dry pry bar test is the industry standard for verifying bushing integrity. With the vehicle lifted but the suspension loaded (if possible), apply leverage to the control arm. If the arm moves excessively relative to the mount, or if you see gaps opening between the rubber and metal sleeve (debonding), the bushing has failed. Visual inspection should also check for oil contamination, which causes Natural Rubber (NR) to swell and turn into a jelly-like substance, destroying its stiffness properties.
Pry Bar Inspection
If the rubber shows deep cracks or the inner sleeve has migrated off-center, immediate replacement is required to restore safety and NVH performance.
Replacing the suspension bushings
Replacement is a precision process that often requires hydraulic equipment to ensure the interference fit is maintained without damaging the new component.
The process typically involves removing the control arm and using a hydraulic press to force the old bushing out and the new one in. It is critical to note the orientation of the bushing; many hydraulic bushings or voided rubber bushings are directional. Installing them at the wrong angle will result in incorrect stiffness characteristics and premature failure. For OEMs, the ease of installation is determined by the dimensional tolerance of the outer metal sleeve, a metric we strictly control at GJBUSH.
Hydraulic Press Installation
While replacement fixes the immediate issue, OEMs must ask: Why did the part fail in the first place?
Dive Deeper: The Role of Multi-Axial Fatigue Testing in Supply Chain Security
For Purchasing Managers and R&D Engineers, the goal is not just fixing failures, but preventing them through rigorous supplier validation. A bushing might look perfect visually and pass basic hardness tests, yet fail catastrophically after only 10,000 cycles on the road. This is where Fatigue Testing becomes the non-negotiable standard for quality.

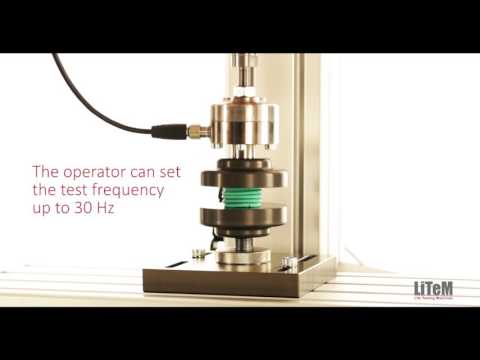

I recently analyzed a lab test video that mirrors the protocols we use at the GJBUSH NVH Laboratory. It demonstrates a rubber specimen undergoing cyclic compression testing:
At GJBUSH, we utilize MTS Hydraulic Servo Systems to go beyond simple static checks. We focus on Dynamic Stiffness (Kd) and Loss Angle, which are the true indicators of how a bushing behaves under real-world stress.
Why this matters for your supply chain:
- Simulation of Real Loads: A static press test tells you nothing about durability. Our fatigue tests simulate 100,000 to 1,000,000 cycles at frequencies ranging from 1Hz to 50Hz. This exposes weaknesses in the Rubber-to-Metal Bonding process (such as poor phosphating) that wouldn’t show up in a fresh part.
- Heat Generation & Hysteresis: As rubber flexes, it generates heat (hysteresis). If the compound formulation isn’t optimized for heat dissipation, the internal temperature will rise, degrading the polymer chains and causing the bushing to collapse. Our testing verifies that the Tangent Delta remains stable even under thermal stress.
- Predicting Warranty Costs: By validating the fatigue life curve (S-N curve) of our transmission and suspension bushings, we provide OEMs with data-backed assurance. We don’t just guess that the part will last; we prove it destructively in the lab so it doesn’t fail on your customer’s vehicle.
For high-torque applications like transmission mounts, relying on suppliers who only perform dimensional checks is a liability. GJBUSH’s integration of material science and dynamic validation ensures that the parts you receive deliver consistent performance from the factory floor to the end of the vehicle’s life.
Conclusion
Diagnosing suspension issues is vital for maintenance, but sourcing components validated by dynamic fatigue testing is vital for brand reputation. GJBUSH combines 27,000 sqm of manufacturing capacity with OEM-level R&D capabilities to deliver bushings that survive the toughest conditions.
