For OEM purchasing managers and automotive engineers, the nightmare scenario isn’t a worn-out part after 100,000 miles—it is a catastrophic batch failure at 5,000 miles. When sourcing control arm bushings, the critical differentiator between a reliable component and a liability is not just the rubber geometry, but the microscopic bond between the polymer and the metal.
How do you test control arm bushings? A control arm bushing is a rubber-to-metal bonded vibration isolator that acts as the interface between the vehicle’s frame and the suspension control arm. It manages torsional movement, suppresses road noise, and maintains wheel alignment under dynamic loads.
Control Arm Bushing Structure
While many manufacturers can mold rubber, fewer can guarantee the chemical and mechanical adhesion required for IATF 16949 standards. This guide explores the engineering reality behind adhesion failure and the validation protocols we use at GJBUSH to prevent it.
The Anatomy of Failure: Why "Cheap" Bushings Peel
In the aftermarket and OEM sectors, failure modes tell the true story of manufacturing quality. A bushing can fail due to fatigue (cracking over time), which is expected behavior. However, adhesive failure (de-bonding) is a manufacturing defect that compromises vehicle safety immediately.
When the rubber peels away from the metal sleeve cleanly, it indicates that the chemical bond never formed correctly. This leads to immediate loss of suspension geometry, metal-on-metal clunking, and potential loss of steering control.
Bushing Adhesion Failure

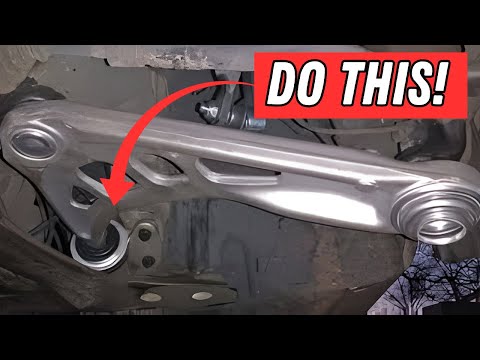

I recently analyzed a diagnostic video that perfectly illustrates the symptoms of this failure in the field. The footage highlights the severe "clunking" and wheel movement caused when a control arm bushing loses its structural integrity.
In the video, you can see the excessive play in the control arm. For an OEM, if this occurs during the warranty period, the cost is not just the replacement part ($10–$20), but the labor, the alignment, and the brand reputation damage. At GJBUSH, we treat "adhesive failure" as a zero-tolerance defect. Unlike fatigue, which is a material limit, de-bonding is a process negligence. By identifying these symptoms early in the validation phase, we protect our clients from massive recall liabilities.
The Science of Stick: Phosphating & Chemlok Application
The secret to a bushing that survives 100,000 cycles lies in the pre-vulcanization preparation of the metal sleeves. A simple degreasing wipe is insufficient for automotive-grade bonding.
At GJBUSH, we utilize a multi-stage metal preparation process including shot blasting and zinc-phosphate coating to create a crystalline surface structure that mechanically interlocks with the adhesive.
Phosphating Process Line
The bonding process is not just about "glue." It is a complex chemical reaction that occurs during vulcanization.
- Surface Roughness: We use shot blasting to increase the surface area of the inner and outer metal sleeves.
- Phosphating: This chemical treatment creates a non-conductive, crystalline layer on the metal. This layer prevents under-bond corrosion, which is the leading cause of failure in salted road environments.
- Chemlok Application: We strictly apply a two-coat system (Primer + Adhesive). The primer bonds to the metal/phosphate, and the adhesive bonds to the rubber.
During the vulcanization process (typically at 160°C – 175°C), the rubber cross-links with the adhesive, creating a bond often stronger than the rubber itself. If a supplier skips the phosphating step to save cost, the bushing might look perfect initially but will fail rapidly when exposed to moisture and road salt.
Validation Protocol: Destructive Testing (ASTM D429)
Manufacturing the part is half the battle; proving it works is the other. We employ rigorous destructive testing to verify batch consistency before shipping.
Our standard requires "Cohesive Failure" results in pull-out tests, meaning the rubber material must tear before the bond releases from the metal.
Destructive Testing Setup
To ensure our phosphating and adhesive processes are working, we reference ASTM D429 Method B (Stripping Strength) and perform axial push-out tests. This is where the rubber-to-metal bond is stressed until destruction.
I recently analyzed a test video showing a multi-axial durability rig similar to what is used in high-end validation labs. This setup applies forces in multiple directions to simulate real-world chaos.
While fatigue testing (like the video above) determines lifecycle, our batch-release focus is often on the Push-Out Force.
- Adhesive Failure (FAIL): If the metal sleeve comes out clean, shining like new, the batch is rejected. It means the glue failed.
- Cohesive Failure (PASS): If the metal sleeve is covered in torn chunks of rubber, the bond was successful. The rubber failed before the glue did.
At GJBUSH, we target a rubber retention rate of >95% on the metal surface. This confirms that the weak point is the material limit of the Natural Rubber (NR) itself, not the manufacturing process. This specific distinction—Cohesive vs. Adhesive failure—is the primary metric OEMs should demand from their suppliers’ quality reports.
Sourcing Strategy: Beyond the Price Tag
When comparing quotes for control arm bushings, a 15% price difference often reflects the removal of invisible steps like phosphating or the use of generic, single-coat adhesives instead of genuine Chemlok.
Smart procurement involves auditing the supplier’s adhesion process and demanding destructive test reports for every production lot.
For an OEM, the math is simple. Saving $0.50 on a bushing by skipping the phosphate coating can lead to a $200 warranty claim per vehicle. High-quality bonding is an insurance policy against field failure.
Conclusion
A control arm bushing is only as good as its bond. At GJBUSH, we combine precise Natural Rubber formulations with rigorous phosphating and adhesive protocols to ensure our parts meet SGS IATF 16949 standards. We don’t just mold rubber; we engineer durability.
Ready to validate your current supply? Contact our engineers for a custom sample review and adhesion benchmark test.
