Tier-1 suppliers frequently struggle when translating seemingly simple 3D blueprints into mass-produced components, only to encounter catastrophic stiffness deviations, interfacial delamination, or early elastomer tearing during the launch phase.
Delivering a high-lifespan automotive bushing requires strict adherence to Advanced Product Quality Planning (APQP). By combining CAE mold flow intervention, swaging technology, and MES digital error-proofing, GJBUSH locks dynamic stiffness variations into an extremely narrow tolerance band for millions of units.
Chassis NVH Rubber Bushing APQP Lifecycle
Bridging the massive engineering gap from initial CAD blueprints to stable, zero-defect mass production demands profound manufacturing heritage.Founded in 1998, GJBUSH leverages a founding team with over 40 years of specialized rubber-to-metal bonding expertise, positioning us at the forefront of global bushing design. Operating under SGS-certified IATF 16949 and ISO 14001 quality frameworks, our facility deploys over 200 high-end manufacturing machines and a world-class NVH testing center. With an annual capacity in the tens of millions, we provide global Tier-1 suppliers with comprehensive co-development and mass production services for control arms, subframes, and engine mount systems.
1. How to Evaluate Chassis Suspension Bushing Blueprint Tolerances? APQP Requirement Decomposition & NVH Alignment
Chassis projects frequently require massive rework late in the development cycle because the initial requirement alignment was superficial. Customers often provide basic 2D dimensional tolerances and a set of static three-axis stiffness targets, assuming it is a simple build-to-print job. However, rubber is an incompressible, hyperelastic material; its physical behavior after vulcanization and assembly presents a massive chasm compared to static blueprint geometry.
The core of APQP requirement decomposition is translating OEM DVP (Design Verification Plan) specifications into a manufacturable process map. Before cutting steel for molds, engineers must reverse-engineer metal tolerances and rubber shrinkage rates to eliminate structural interference digitally.

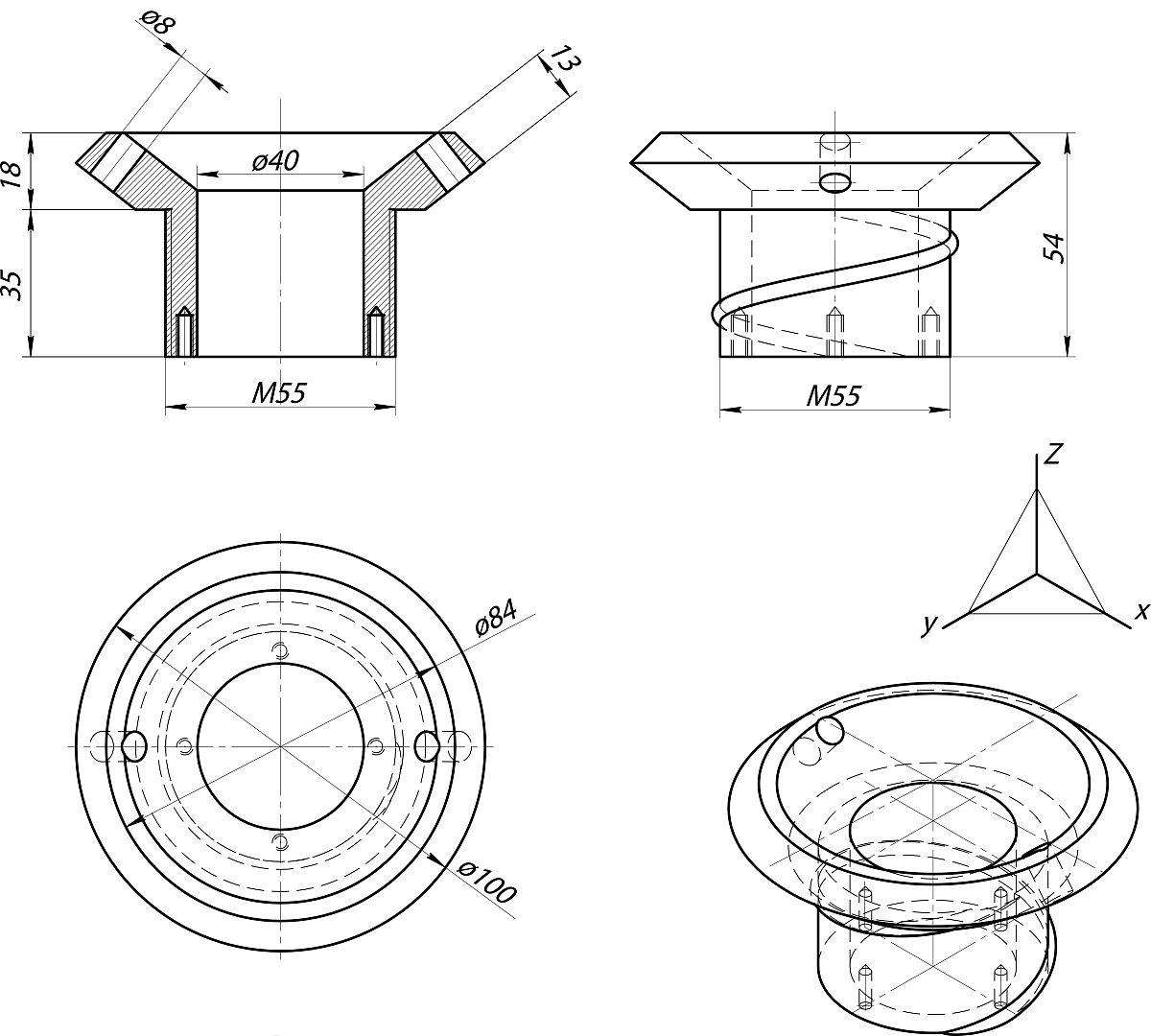

3D Blueprint Analysis and NVH Alignment
3D Data Translation and Rubber Shrinkage Compensation Strategies
Transitioning design intent into a physical component begins with predicting thermodynamic material properties.
Design-End Interference and Material Matching Analysis:
Traditional contract manufacturers often make a fatal mistake upon receiving a blueprint: they immediately outsource the CNC machining of the metal skeleton at a 1:1 geometric ratio. This completely ignores the thermal expansion and post-vulcanization shrinkage of the elastomer. When the rubber cools to room temperature, it undergoes volumetric shrinkage, violently pulling on the inner metal sleeve. This skews the concentricity of critical mounting holes, pushing them far outside the OEM tolerance band. Furthermore, if engineers fail to execute digital interference checks during extreme deflection angles, the inner and outer metal sleeves may physically crash into each other on the vehicle, generating severe suspension clunks.
The GJBUSH APQP Intervention and Co-Design Matrix:
To eliminate these rudimentary trial-and-error loops, my engineering team at GJBUSH intervenes the moment a project is initiated.
- Dimensional Re-engineering: Relying on our massive, proprietary rubber material database, we calculate the exact shrinkage rate of the selected compound. During the 3D modeling phase, we proactively apply micro-level reverse compensation to the mold cavity. This guarantees that once the vulcanized product cools, the final outer diameter and hole pitch fall perfectly within the Tier-1’s ultra-strict tolerance requirements.
- NVH Target Reverse Engineering: We do not simply "build to print" based on requested Radial and Axial stiffness targets. Instead, we analyze the specific load distribution logic of the suspension architecture (e.g., MacPherson vs. Double Wishbone). We reverse-engineer the required Shore A hardness and design topological weight-reduction voids to naturally hit the target Dynamic-to-Static Stiffness ($Kd/Ks$) ratios.
- Freezing Technical Specifications: Before any tooling begins, we lock in all ambiguous technical details—draft angles, parting line placements, and salt spray corrosion requirements—in a formal, written technical agreement, ensuring the entire APQP process operates with an absolute, unified engineering objective.
2. Why Do Rubber Anti-Vibration Mount Prototypes Fail? OTS Tooling Samples & CAE Mold Flow Analysis
Transitioning from the digital blueprint to the first physical Off-Tooling Sample (OTS) is historically the most volatile phase of automotive part development. Many factories undergo five or six costly mold iterations and still fail to resolve internal micro-cracking or incomplete rubber fills.
Eliminating tooling sample failures requires digital simulation. By deploying CAE finite element analysis and mold flow simulations, engineers can predict rheological trajectories and stress concentrations, achieving a "First Time Right" mold launch.
CAE Finite Element Analysis and Mold Flow Simulation
Elastomer Rheology and CAE Mold Flow Intervention
The most terrifying aspect of the prototyping phase is not a dimensional error, but a physical defect hidden deep within the rubber matrix.
Rheological Defects and Stress Tracking FMA:
Unvulcanized rubber compounds possess extremely high viscosity during injection. If the runner and gate designs in the mold are suboptimal, the compound generates massive shear friction as it flows at high velocity. This friction spikes localized temperatures, triggering premature "Scorch" before the cavity is fully filled. Scorching breaks the polymer cross-linking network, resulting in visible flow marks, knit lines, and catastrophic mechanical weakness. Additionally, drastic thickness variations in the rubber cross-section create severe stress concentrations. When subjected to high-angle torsion during fatigue testing, these specific nodes will instantly tear.
GJBUSH’s Digital Prototyping and Material Property Control:
To ensure our prototypes meet mass-production mechanical standards on the first try, GJBUSH front-loads the development into the digital realm:
- Finite Element Stress Relief (FEA): Utilizing advanced CAE software, we input our exclusive S/N (Stress-Life) and E/N (Strain-Life) constitutive material models. We apply multi-axis loads to the virtual bushing assembly. The system automatically exposes high-stress "red zones." My engineers optimize the fillet radii of the rubber shoulders and adjust the draft angles of the primary load-bearing surfaces, neutralizing tear risks before cutting any P20 steel.
- Mooney and Rheometer Dual Verification: Once the prototype compound is mixed, it must pass rigorous inspections using our Mooney Viscometer and Rheometer. We precisely map the $T10$ (scorch time) and $T90$ (optimum cure time). This data dictates the exact clamping pressure and curing time curve for the trial mold, entirely preventing under-curing (soft, gummy rubber) or over-curing (brittle, fragile rubber).
- Cross-Sectional Micro-Validation: After the OTS sample drops, we perform more than just dimensional checks. We slice the bushing straight down the central axis and place it under an Optical Profile Projector to scan for microscopic cavitation voids and flow blind spots. This ensures the structural integrity of the sample we submit to the Tier-1 client is absolutely flawless.
3. How to Prevent Suspension Bushing Batch Quality Inconsistency? Large-Tonnage Injection Molding & CPK Control
Tier-1 clients do not fear a factory’s inability to make ten beautiful prototypes; their true nightmare is approving a design, only to watch the dynamic stiffness fluctuate wildly when the order scales to one million units per year, triggering catastrophic OEM assembly line stoppages.
Securing millions-scale consistency requires heavy capital investment and rigid process control. By replacing manual operations with fully automated surface treatments, 400T large-tonnage injection presses, and strict CPK monitoring, manufacturers guarantee zero-defect uniformity.
400T Injection Machine and CPK Production Control
Vulcanization Defect Tracing and Large-Tonnage Molding
Human intervention is the ultimate enemy of batch-to-batch quality stability.
Delamination and Stiffness Drift FMA:
Traditional contract manufacturers relying on manual adhesive brushing and open-cavity compression molding will inevitably collapse under high-volume orders. Manual adhesive application guarantees uneven coating thicknesses and invites sweat and oil contamination. Once the vehicle hits wet roads, the metal interface suffers disastrous delamination. Furthermore, open-cavity molding easily traps ambient air inside the highly viscous rubber, forming microscopic voids (Cavitation). These invisible bubbles cause the dynamic stiffness within the exact same batch to drift by up to 30%, completely destroying the chassis NVH tuning and steering tracking.
The GJBUSH Industry 4.0 Mass Production Moat:
To comfortably absorb massive global orders, GJBUSH executed a total automated reconstruction of our production lines:
- Flawless Automated Surface Prep: We operate fully automated adhesive coating, shot blasting, and phosphating lines, alongside flexible CNC machining centers. In climate-controlled cleanrooms, robotic arms apply nano-level adhesive coatings to the metal skeletons, eradicating all human-induced contamination. We routinely expose samples to brutal corrosion trials in our Salt Spray Test Chamber, ensuring the bonding substrate is invincible.
- Ultra-High Pressure Closed-Loop Injection: Our facility houses multiple 400T+ automated large-tonnage injection vulcanization presses. The compound is forced into completely vacuum-sealed cavities under immense hydraulic pressure. This advanced process delivers a 100% void-free structure and ensures the polymer cross-linking density is uniformly distributed down to the molecular level.
- CPK Process Capability Lockdown: Leveraging our comprehensive management systems, we actively harvest real-time data on critical process parameters, including vulcanization temperature, injection pressure, and curing time. We ensure our Process Capability Index (CPK) consistently remains above 1.67 (indicating a highly capable process), statistically severing any possibility of non-conforming products exiting the factory.
4. What Factory Tests Are Required for Chassis Rubber Bushings? Static Stiffness (Ks), Push-Out Force, & Bond Limit Verification
Without brutal physical destruction and multi-axis fatigue testing to back them up, any promises regarding product lifespan are merely theoretical. A vehicle will endure millions of pothole impacts and extreme temperature swings over its lifecycle, establishing a ruthless barrier to entry for chassis components.
Factory validation must extend far beyond basic dimensional checks. True zero-defect delivery relies on a full-spectrum physical testing matrix, including multi-directional stiffness sweeps, massive destructive push-out forces, full-temperature aging, and multi-channel dynamic fatigue.
Bushing Testing: Push-Out Force and Multi-Channel Fatigue
Multi-Axis Stress Superposition and Fatigue Interrogation
If a factory only utilizes a simple linear tensile machine to calibrate chassis parts, those parts will inevitably fail when subjected to complex real-world stresses.
Dynamic Fatigue and Torsional Bottleneck FMA:
Complex suspension architectures (such as Multi-Link or Double Wishbone setups) subject bushings to extreme tri-axis composite stress: simultaneous vertical jounce, axial push-pull forces, and massive torsional deflection angles. This multidirectional tearing is the ultimate killer of polymer networks. If the chemical bond between the rubber and the inner metal sleeve is even slightly compromised, the extreme axial impact of a pothole will violently push the metal tube out of the bushing, causing the entire suspension corner to collapse.
The GJBUSH NVH Testing Center and Exclusive Swaging Tech:
We invested heavily in an OEM-grade testing matrix to provide indisputable data for every production batch:
- Destructive Push-Out Validation: Our laboratory is equipped with 10KN, 100KN, and 200KN Electronic Tensile Machines. We apply brutal axial push-out forces to finished bushings, guaranteeing that even under the most destructive suspension bottom-out events, the chemical covalent bonds remain unbreakable and the inner sleeve never dislodges.
- Full-Spectrum Dynamic Sweeping: Utilizing our 400Hz High-Frequency Dynamic Tester, we precisely map the Dynamic-to-Static Stiffness ($Kd/Ks$) ratio across low-frequency high-amplitude (pothole simulation) and high-frequency micro-amplitude (road hash simulation) states, ensuring the product perfectly matches the OEM’s acoustic intent.
- Swaging Technology for +50% Lifespan: For high-torsion control arm bushings, GJBUSH strictly enforces our "Swaging" post-processing protocol. We utilize heavy servo presses to radially compress the outer metal shell, forcing permanent pre-compression into the rubber and neutralizing residual cooling tensile stress. Validated on our Single-Channel Torsional Tester, this process consistently boosts torsional fatigue life by over 50%.
- Multi-Channel Fatigue & Environmental Profiling: Prototypes face extreme thermodynamic cycling in our Ozone, Heat (120°C), and Low-Temperature (-40°C) Aging Chambers. Finally, we input the OEM’s actual DVP road spectrum into our Dual-Channel and Tri-Channel Fatigue Platforms, executing millions of synchronized multi-axis cycles to simulate a grueling 15-year vehicle lifecycle.
5. How to Optimize OEM Chassis Projects Post-Launch? MES Full-Lifecycle Traceability & Co-Development Closed Loop
A mature chassis project does not end when the first mass-production batch ships. As vehicles hit diverse global markets, unpredictable NVH feedback arises, and OEMs frequently request subtle handling tweaks for mid-cycle facelifts to enhance sportiness or comfort.
A top-tier supplier acts as a continuous R&D partner. By utilizing an MES (Manufacturing Execution System) for full-lifecycle traceability and leveraging deep custom engineering capabilities, manufacturers form a rapid "Feedback-Data-Iteration" V-model closed loop.
MES Traceability and NVH Co-Development Closed Loop
Eliminating Data Silos and Digital V-Model Agility
If an unexpected squeak occurs in the aftermarket, traditional supply chains waste weeks pointing fingers because they lack granular digital traceability.
Traceability Failures and Response Lag:
Modern automotive supply chains are incredibly complex. If a control arm develops a rattle in the field, the OEM demands immediate batch identification and corrective action. Contract factories lacking digital traceability rely on chaotic paper records. They cannot pinpoint which exact CNC machine cut the sleeve or which furnace experienced a slight temperature fluctuation, making root-cause analysis nearly impossible.
GJBUSH’s Digital Empowerment and Custom Rig Development:
Pushing process control to the absolute limit is how we deliver trust to our global clients:
- MES Absolute Digital Binding: GJBUSH has fully deployed a factory-wide Manufacturing Execution System (MES). Every single bushing shipped carries a unique digital passport. If an anomaly arises, I can instantly trace the Shore A hardness of the raw compound batch, identify the exact CNC machine that cut the inner tube, locate the specific 400T injection press used, and pull the exact T90 curing curve from that exact second in time. This transparency makes quality analysis surgically precise.
- Custom DVP Rig Development: Driven by our robust in-house equipment engineering capabilities, if a client (such as a global micro-mobility leader or heavy agricultural machinery manufacturer) requires a unique NVH test outside standard protocols, GJBUSH will custom-build the testing platform specifically to execute their DVP parameters.
- Agile Iteration: Backed by our extensive material databases and connected digital threads, when a Tier-1 requests a handling upgrade, we can rapidly adjust the mold cavities or damping formulations. We deliver revised OTS samples in record time, perfectly closing the full-lifecycle NVH R&D loop.
Conclusion: Co-Develop Chassis NVH for Zero-Defect Mass Delivery
From micro-level shrinkage compensation during the blueprint phase to intercepting rheological defects via CAE mold flow analysis; from securing millions-scale consistency with 400T injection molding to engineering long-life DNA via swaging and tri-channel fatigue testing—every step of transitioning an automotive bushing from CAD to mass production requires a profound mastery of material science, structural mechanics, and digital manufacturing.
As a certified High-Tech Enterprise with over 40 years of R&D heritage, GJBUSH is far more than a contract manufacturer; we are your strategic R&D partner for complex chassis NVH challenges. Whether you are struggling with dynamic stiffness drift on a current control arm program, or seeking a reliable, high-capacity partner for an upcoming global platform, submit your 3D models and DVP testing specifications to our engineering team today. GJBUSH will unleash our world-class MES manufacturing matrix to guarantee your zero-defect mass-production launch!
Author Bio:
Scarlett is an Automotive NVH Engineering Strategist at GJBUSH with 14 years of chassis R&D experience. Working closely with manufacturing partners, she documents advanced rubber-to-metal bonding techniques, CAE simulations, and testing insights to assist global Tier-1 suppliers and OEMs in co-development.
