When Tier-1 chassis integrators and global automakers develop high-performance suspensions, rubber bushing lead times often spiral out of control during prototype iteration and validation. Ambiguous dynamic-to-static stiffness targets and unverified stress concentrations can lead to bushing fatigue tearing during road trials, causing severe project delays.
Custom automotive chassis bushing development typically requires 6 to 10 months, progressing through CAE 3D stiffness decoupling, rapid OTS compound tuning, DVP&R durability testing, and PPAP sign-off. Leveraging validated elastomeric rheology databases and mechanical swaging significantly reduces validation cycles and accelerates volume readiness.
Custom Automotive Bushing R&D Process from OTS to PPAP Approval
While co-developing anti-vibration suspension systems with global OEMs and Tier-1 integrators, the GJBUSH engineering team—backed by our founder’s 40 years of elastomeric design pedigree—identified that lead-time overruns usually stem from poor upstream parameter definition and disconnects in manufacturing tooling. By utilizing our proprietary elastomeric material database (S/N and E/N curves) and end-to-end digital MES tracking, we hold development lead times within tight project milestones while leveraging heavy-duty mechanical swaging to increase control arm bushing torsional fatigue life by approximately 50%. Below is a technical analysis of how to streamline chassis bushing development from initial design concept to defect-free PPAP volume delivery.
1. Why Do Suspension Bushing Kick-off Phases Suffer Lead-Time Bottlenecks, and How Can CAE 3D Decoupling Freeze NVH Targets?
During the initial phase of control arm bushing development, systems engineers often struggle with conflicting stiffness requirements across different coordinate axes, forcing projects into loops of mold rework and compound reformulation. Vague boundary conditions and undefined acoustic frequency bands are the primary reasons early prototype iterations fail to balance straight-line ride comfort with aggressive roll stabilization.
Accelerating engineering sign-off requires non-linear Finite Element Analysis (CAE) to decouple radial, axial, and torsional stiffness early in the program, locking in sensitive NVH frequency bands before physical tooling begins.
FEA Hyperelastic Mesh Decoupling and Internal Void Profile Optimization
Failure Mode Analysis (FMA) of Axial Conflicts and Non-Linear Finite Element Simulation
1. "Ride vs. Handling" Trade-off Induced by Symmetric Geometries (FMA):
Within multi-link or subframe suspension architectures, elastomeric bushings endure conflicting mechanical demands. Along the X and Y axes, the bushing must provide compliance to absorb road imperfections and isolate mid-frequency acoustic energy (60–120 Hz) from the subframe and cabin. Conversely, along the Z axis and torsional articulation paths, insufficient static support stiffness causes excessive lost motion, compromising vehicle steering precision and yaw stability. When engineers bypass upfront digital decoupling, initial prototype tooling inevitably yields physical mounts that either amplify cabin booming or cause sloppy, delayed handling.
2. Implementing Mooney-Rivlin and Ogden Hyperelastic CAE Constitutive Models:
To freeze engineering tolerances before cutting tool steel, GJBUSH CAE specialists import customer 3D CAD geometries directly into advanced hyperelastic Finite Element Analysis (FEA) solvers. Utilizing Mooney-Rivlin and Ogden elastomeric material cards calibrated from our in-house testing database, we execute coupled thermo-mechanical non-linear mesh simulations.
By profiling asymmetric crescent-shaped void channels and reinforcing local metal-to-rubber interface thicknesses, we independently manipulate directional stiffness. This geometry ensures high static stiffness (Ks) along the primary load path to support cornering loads while permitting controlled elastomer deformation along secondary axes to suppress high-frequency dynamic stiffening.
3. R&D Timeline and Validation Efficiency Comparison:
Virtual iteration identifies structural interference and localized strain concentrations before tooling, eliminating redundant physical prototyping. The table below illustrates the efficiency gains achieved through upstream CAE decoupling:
| Program Milestone & Technical Metric | Empirical Trial-and-Error Workflow | GJBUSH CAE & NVH Upstream Decoupling | Engineering Value for Tier-1 Platform Integrators |
|---|
| Drawing & Parameter Freeze Timeline | 4 to 6 weeks with repetitive design loops | 7 to 10 business days | Accelerates CAD sign-off and eliminates downstream tooling delays. |
| Tri-Axial Stiffness Coordination | Interdependent axes; adjusting one alters all | Independent radial/axial/torsional tuning | Resolves the mechanical conflict between handling rigidity and NVH damping. |
| First-Off Prototype (T0) Scrap Rate | Elevated scrap due to high strain concentrations | Uniform stress distribution; high T0 pass rate | Minimizes tooling modification costs caused by early tearing or stiffness drift. |
| NVH Tolerance Band Accuracy | Addresses only basic low-frequency static twist | Covers mid-to-high frequency acoustic isolation | Delivers reliable hardware execution for active chassis domain controllers. |
2. What Technical Challenges Define Rapid OTS Prototype Sampling, and How Does CNC Machining Synchronize with Rheological Tuning?
Before hard production molds are cut, project teams rely on Off-Tool Sample (OTS) or soft-tooled prototypes to complete initial vehicle handling drives and baseline rig verification. Using conventional manual turning and off-the-shelf rubber stocks often results in poor metal surface roughness and dynamic hardening under high frequencies, yielding false-positive prototype data that fails when production molds arrive.
Accelerating OTS prototype delivery while ensuring dynamic fidelity requires CNC flexible machining lines for high-precision metal hardware, combined with short-relaxation elastomeric formulations that hold down the high-frequency dynamic-to-static stiffness ratio (Kd/Ks).
Precision CNC Sleeve Turning and Short-Relaxation Elastomer Compounding
CNC Sleeve Precision and Polymer Viscoelastic Reconstruction
1. Surface Roughness Variance and "False Dynamic Compliance" (FMA):
Because dedicated production tooling requires several weeks to manufacture, the industry routinely machines individual inner and outer sleeves from bar stock for initial validation builds. When fabricated on standard manual lathes, these components often exhibit micro-tapering and erratic surface roughness (Ra values). This inconsistency degrades rubber-to-metal bonding integrity and introduces unpredictable internal friction. Furthermore, when prototypes are molded from standard commercial rubber compounds, they suffer severe dynamic hardening when subjected to 100 Hz micro-amplitude excitations. The resulting storage modulus spikes significantly above OEM NVH specifications, invalidating subjective cabin noise evaluations.
2. Flexible CNC Precision Machining and Macromolecular Compound Tuning:
GJBUSH eliminates prototype variance by processing all OTS metal hardware through our internal CNC Flexible Machining Lines and Automated Adhesive Coating Systems. Our multi-axis CNC lathes turn and chamfer inner and outer sleeves in a single setup, ensuring concentricity and surface roughness remain strictly within DVP tolerances before parts enter automated phosphating and primer application.
Simultaneously, leveraging our comprehensive elastomeric rheology database, compounding engineers reformulate the natural rubber matrix by introducing short-relaxation-time polymers and highly dispersed silica networks. Under high-frequency dynamic loads, these engineered polymer chains slide and reorient rapidly, dissipating mechanical energy as heat and preventing the storage modulus from spiking at elevated frequencies.
3. OTS Dynamic Performance Benchmark:
Combining precision CNC metal fabrication with tailored elastomeric chemistry allows us to deliver high-fidelity OTS prototypes that mirror mass-production behavior within compressed delivery windows:
| Technical Parameter & Frequency Domain | Standard Turn-Bench Prototypes & Commercial Rubber | GJBUSH CNC Flexible Prototyping & Tuned Compound | Engineering Impact on Vehicle Level Testing |
|---|
| Sleeve Concentricity & Taper Tolerance | Inconsistent taper; causes mechanical binding | Strict geometric tolerances & uniform roughness | Ensures interference-free fitment into aluminum or steel control arms. |
| High-Frequency Dynamic Stiffness (100Hz) | Averages ~4800 N/mm (severe dynamic stiffening) | Maintained below 2950 N/mm across tolerances | Delivers production-representative acoustic damping during prototype road trials. |
| Dynamic-to-Static Ratio (Kd/Ks at 100Hz) | Elevated range of 1.75 – 1.95 | Controlled within a tight 1.22 – 1.28 band | Suppresses structural cavity ringing over coarse asphalt surfaces. |
| OTS Prototype Delivery Lead-Time | Typical industry turnaround: 20–30 business days | Expedited delivery within 10–15 business days | Keeps vehicle developmental schedules on track for OEM winter/summer testing. |
3. How Can Engineers Prevent Validation Loops During DVP&R, and Why Are 400 Hz Sweeps and Multi-Channel Rigs Essential?
Design Verification Plan and Report (DVP&R) execution is the ultimate technical hurdle before freezing an automotive bushing design. When components lack adequate dynamic fatigue resistance or thermal stability under multi-axial loads, prototypes frequently suffer internal cohesive tearing mid-way through extended durability schedules, trapping the program in expensive redesign and re-testing loops.
Eliminating DVP&R test loop failures requires an internal pre-validation regimen that subjects candidate designs to 0–400 Hz dynamic sweeps and multi-channel torsional fatigue loading before formal certification.
Multi-Axis Torsional Endurance Test Rig and 400Hz Dynamic Analyzer
![]()
Multi-Axial Cumulative Damage Analysis and Laboratory Validation Protocols
1. "Thermal Stress Degradation" Under Multi-Channel Articulation (FMA):
In real-world operation, control arm bushings absorb simultaneous radial impacts, axial displacements, and angular torsional articulation. Simple single-axis durability rigs generate low heat buildup and often fail to reproduce real-world stress states. However, on independent DVP&R three-channel multi-axis endurance rigs, complex high-frequency shear cycles generate intense internal hysteresis heating. If the polymer crosslinking network lacks oxidative stability, continuous internal temperatures between 70°C and 95°C trigger thermal reversion and bond scission. Consequently, bushings can suffer sudden cohesive elastomer tearing around 60% of the target test duration.
2. Semi-EV Crosslink Systems and 400 Hz Dynamic Frequency Sweeps:
To ensure zero-defect DVP&R execution, GJBUSH formulates all high-stress chassis bushings with a verified Semi-Efficient Vulcanization (Semi-EV) anti-aging compound architecture. This sulfur-to-accelerator stoichiometry increases the proportion of mono- and di-sulfidic crosslinks, significantly raising the thermal degradation threshold and preventing polymer softening under chronic hysteresis heating.
Before submitting samples for customer DVP&R sign-off, our testing laboratory evaluates prototypes using a precision 400 Hz High-Frequency Dynamic Elastomer Test System to record storage modulus sweeps and loss factor (Tan δ) stability across wide temperature gradients. We then load the parts into our Three-Channel Torsional Fatigue Test Rigs integrated with Thermal-Aging Environmental Chambers, subjecting them to multi-axial stress cycles to verify fatigue margins.
3. In-House Accelerated Durability Test Data:
This rigorous internal screening ensures that parts shipped to Tier-1 customers and independent test tracks pass stringent DVP&R certification protocols on the first attempt:
| Qualification Test & Environmental Condition | Standard Baseline Rubber Formulation | GJBUSH High-Frequency Semi-EV Formulation | Reliability Benefit for Vehicle Program Sign-off |
|---|
| 0–400 Hz Dynamic Frequency Sweep | Phase drift and modulus spike beyond 200 Hz | Smooth modulus & phase transition across spectrum | Prevents unexpected suspension resonance during high-speed road operation. |
| Three-Channel Torsional Fatigue Endurance | Cohesive internal tearing near ~450,000 cycles | Exceeds 1,000,000 multi-axis cycles without failure | Ensures chassis durability across off-road, high-load, and commercial duty cycles. |
| Thermal Aging Compression Set Limit | Excessive permanent deformation after heat cycling | Maintains elastomeric memory within design limits | Preserves vehicle handling precision across extreme winter and summer climates. |
| DVP&R First-Time-Right Sign-off Rate | Prone to redesign loops and schedule overruns | Consistent first-time qualification and delivery | Protects Tier-1 supplier milestones and vehicle launch schedules. |
4. Why Does Durability Often Drop Between Soft Tooling and Volume Molds, and How Does Heavy-Duty Swaging Eliminate Residual Tensile Stress?
A common engineering setback occurs when prototypes molded from prototype tooling pass initial durability tests, but parts produced from multi-cavity volume production molds suffer early fatigue failure. This durability cliff occurs because rapid demolding and ambient cooling in volume production lock unpredictable thermal residual tensile stresses into the rubber-to-metal bonding interface.
Preventing the durability cliff between prototype sampling and volume production requires combining stable compound rheology with heavy-duty mechanical hydraulic swaging to transform latent residual tensile stress into uniform pre-compressive stress.
Heavy-Asset Mechanical Swaging Converting Residual Tensile Stress to Pre-Compression
Thermal Shrinkage Mechanics and Million-Cycle Rig Validation
1. "Residual Tensile Traps" Caused by Thermal Coefficient Mismatch (FMA):
When rubber bushings are vulcanized at elevated temperatures and removed from the mold to cool, the elastomeric matrix attempts to contract volumetrically. Because the thermal expansion coefficient of rubber is significantly higher than that of the surrounding steel or aluminum sleeves, the rigid metal hardware physically restricts this natural contraction. Consequently, the elastomer locks in a high level of static thermal residual tensile stress. When installed in a high-axle-load skateboard chassis undergoing full-jounce articulation or severe cornering, operational tensile stresses compound with this internal residual stress, initiating micro-cracks at the inner sleeve interface that propagate into catastrophic structural tears.
3. Comparative Torsional and Radial Fatigue Rig Evaluation:
The empirical efficacy of this process is validated in our fatigue testing center. Using Single- and Dual-Channel Dynamic Torsional Fatigue Rigs, we evaluate standard un-swaged control samples alongside GJBUSH swaged production bushings under severe radial and torsional load schedules:
| Evaluation Metric & Testing Parameter | Standard Un-Swaged Molded Bushing | GJBUSH Swaged Production Bushing | Engineering Reliability & TCO Impact for Tier-1s |
|---|
| Internal Residual Stress State | High static radial tensile stress present | Uniform internal pre-compressive stress | Eliminates latent internal micro-fissures and suppresses crack growth. |
| High-Angle Torsional Fatigue Limit | Cohesive rubber cracking near 420,000 cycles | Exceeds 850,000 cycles without structural failure | Improves operational fatigue life by approximately 50% under heavy loads. |
| Multi-Axis Offset Shear Resistance | Debonding occurs under prolonged shear loads | No interfacial delamination under peak loads | Ensures suspension structural integrity across commercial and off-road cycles. |
| Production Lot Consistency | Variable fatigue distribution across batches | High dimensional and structural uniformity | Simplifies platform PPAP qualification and minimizes supplier quality risks. |

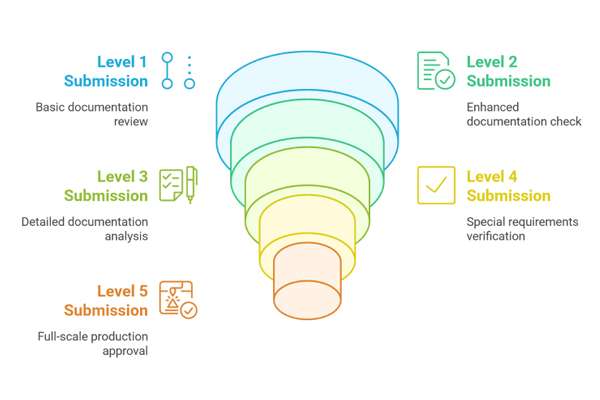

5. How Can Suppliers Ensure Flawless Global PPAP Delivery, and What Role Do 400T Injection Interlocks and 200KN Push-Out Audits Play?
Passing DVP&R proves that a bushing design meets engineering requirements, but Production Part Approval Process (PPAP) sign-off marks the start of volume manufacturing. Minor variations on the factory floor can cause dynamic stiffness dispersion across batches, triggering customer quality alerts, assembly line rejections, and warranty claims.
Ensuring zero-defect PPAP delivery across millions of production units requires replacing manual floor supervision with 400T+ smart injection vulcanization presses linked to MES cloud interlocks, reinforced by 200KN destructive bonding audits.
400T High-Pressure Injection Presses and 200KN Push-Out Testing
Industry 4.0 MES Interlocks and Zero-Defect Quality Traceability
1. "Dynamic Modulus Drift" Induced by Manual Process Variation (FMA):
During high-volume manufacturing, manual interventions—such as opening a mold early to speed up cycle times or localized temperature drops caused by failing heating cartridges—can leave microscopic under-cured zones inside the bushing. While these parts pass standard room-temperature dimensional and Shore hardness checks, their dynamic stiffness drifts after limited road use. When installed on vehicle assembly lines, this batch-to-batch variation causes left-to-right handling imbalances and unpredictable vehicle tracking, exposing Tier-1 suppliers to costly warranty claims.
2. 400T Smart Injection Presses with MES Cloud Interlocks:
At GJBUSH, we maintain high-volume production consistency by replacing manual supervision with automated hardware interlocks. Our production floor operates dozens of networked 400T+ High-Pressure Smart Injection Vulcanization Presses and Automated Adhesive Application Systems, integrated directly into our centralized Manufacturing Execution System (MES).
For safety-critical chassis bushings, validated cure profiles—including multi-stage temperature curves, injection pressure limits, and precise countdown timers—are pushed directly from the engineering cloud to individual programmable logic controllers (PLCs) under read-only security. Operator modification is restricted. If embedded mold sensors detect that an operational parameter deviates from the established tolerance band by even a microsecond, the PLC aborts the cycle, locks the press, and flags the part for quarantine.
3. 200KN Destructive Push-Out Testing and Full DVP Traceability:
Before any production lot is released for packaging and global shipment, our quality assurance engineers execute physical audits within our testing center. Using our calibrated 200KN Electronic Universal Testing Machines, technicians sample production bushings to conduct destructive push-out and axial tear-load evaluations, visually verifying that the failure interface displays 100% rubber cohesive tear.
All mechanical test records—including Shore/Rockwell hardness, tensile modulus, and destructive push-out values—are automatically aggregated with environmental chamber data in the MES. This closed-loop quality architecture, spanning initial compound formulation and mechanical cold-working to final destructive testing, ensures that every bushing delivered to global OEMs and Tier-1 integrators conforms to validated PPAP specifications.
Conclusion: Partner with GJBUSH for Accelerated, Zero-Defect Chassis Bushing Engineering
Custom automotive rubber bushing development is an interdisciplinary engineering process that merges non-linear elastomeric FEA, viscoelastic polymer chemistry, and precision manufacturing control. Moving an NVH component from initial CAD packaging to PPAP volume delivery on schedule requires both analytical depth to solve high-frequency acoustic challenges and robust factory automation to prevent residual stress failures.
From deploying upstream CAE 3D stiffness decoupling to isolate directional loads, to reformulating short-relaxation polymer networks that hold 400 Hz dynamic-to-static ratios (Kd/Ks) within tight tolerances; from validating Semi-EV cure architectures under multi-channel fatigue loading, to utilizing heavy-duty Mechanical Swaging Technology to extend torsional fatigue life by approximately 50%, GJBUSH delivers the end-to-end manufacturing engineering required for automotive chassis programs. Supported by dozens of 400T+ Smart Injection Vulcanization Presses and error-proof MES Industry 4.0 quality interlocks, we operate as a direct, dependable R&D and manufacturing partner for global OEMs and Tier-1 suspension integrators.
If your engineering team is evaluating lead-times for a new vehicle platform or troubleshooting NVH acoustic isolation, multi-axial fatigue, or dynamic stiffness dispersion on an existing chassis program, contact our engineering team today. Send us your DVP&R requirements, operating load files, or 3D CAD suspension assemblies to initiate technical evaluation. Together, we can engineer high-performance rubber-to-metal chassis systems for global mobility.
