For fleet managers and automotive OEMs, suspension failure is not just a maintenance issue—it represents a critical safety risk and a significant driver of warranty costs. Identifying worn ball joints early through standardized inspection protocols is essential for maintaining vehicle integrity and preventing catastrophic control arm separation.
To check if a ball joint is bad, elevate the vehicle safely on a lift or jack stands. Grasp the tire at the 12 and 6 o’clock positions and attempt to rock it vertically. Any noticeable play, clicking sounds, or visible movement in the joint indicates internal wear. Additionally, visually inspect the rubber dust boot for tears or grease leakage.
Ball Joint Inspection Shake Test
While the physical "shake test" is the industry standard for diagnosis, understanding the root cause of failure requires a deeper look at the component’s engineering. A ball joint often fails not because of the steel stud, but because the protective seal has been compromised.
1. How Do You Check for a Bad Ball Joint?
Effective diagnosis requires differentiating between ball joint wear and other suspension issues like wheel bearing failure. A systematic approach ensures accurate identification of the problem source.
The primary method involves physically manipulating the wheel assembly to simulate road forces while the suspension is unloaded. This reveals "play" or clearance that shouldn’t exist in a tight, healthy joint.
Suspension System Diagnostic
1.1 The "12 and 6 O’Clock" Shake Test
The "12 and 6" test is the most reliable field method for detecting vertical (axial) play.
- Unload the Suspension: Lift the vehicle until the wheel hangs freely. Note: For vehicles with load-carrying ball joints (often on the lower arm), you must support the lower control arm to relieve spring tension.
- Position Hands: Place hands firmly at the top (12 o’clock) and bottom (6 o’clock) of the tire.
- Apply Force: Push in with one hand while pulling out with the other in a rocking motion.
- Evaluate: You are feeling for a "clunk" or shifting movement. If the wheel rocks but the ball joint remains stationary, the issue may be the wheel bearing. If the movement originates at the knuckle-to-control-arm connection, the ball joint is defective.
1.2 Listen and Observe During the Test
Visual and auditory cues often precede tactile feedback.
- Auditory: Listen for a metallic "clunk" or "click" during the shake test. This sound indicates the ball stud is hitting the housing due to a depleted polymer bearing or excessive internal clearance.
- Visual: Watch the joint itself while a helper rocks the wheel. If the stud moves separately from the housing (radial play), the unit is compromised.
2. What are the Risks of Driving on a Bad Ball Joint?
Ignoring early warning signs leads to progressive material fatigue. The risks escalate from minor discomfort to critical safety failures that can ground an entire fleet.
Driving with a worn ball joint compromises steering precision and suspension geometry, leading to unpredictable handling. In extreme cases, the joint can separate completely, causing the wheel to detach from the suspension assembly while driving.
Ball Joint Failure Consequence
2.1 The Catastrophic Failure Scenario
The ball joint acts as the pivot point between the steering knuckle and the control arm. If the ball stud pulls out of its socket due to extreme wear, the control arm disconnects. This causes the wheel to collapse into the wheel well, instantly stripping the driver of steering control and braking ability. For OEMs, such failures in the field can trigger massive recalls and liability claims.
2.2 Before Total Failure
Before a complete separation, a bad ball joint creates significant operational inefficiencies:
- Uneven Tire Wear: Because the joint cannot hold the alignment angle (camber), tires develop "feathering" or rapid inner-edge wear, shortening tire life by up to 50%.
- NVH Issues: Excessive vibration and metal-on-metal noise degrade the driving experience and can damage mounting points on the chassis.
3. When Should a Ball Joint be Replaced?
Replacement schedules should be dictated by condition monitoring rather than just mileage, as operating environments (e.g., industrial sites vs. highways) drastically affect lifespan.
A ball joint must be replaced immediately upon the detection of any perceptible play, torn dust boots, or audible knocking. There is no "safe margin" for wear in these critical suspension components.
Ball Joint Replacement Comparison
3.1 Don’t Wait for Symptoms to Worsen
Wear in a ball joint is exponential. Once the internal polymer liner is worn and the grease is contaminated, the friction coefficient rises dramatically. This accelerates the wear rate of the metal ball stud. Waiting for the noise to get "loud enough" risks damage to the steering knuckle, which is a much more expensive repair.
3.2 Passing Your Annual Vehicle Inspection
Regulatory standards (such as MOT in the UK or DOT inspections in the US) have strict tolerance limits. Generally, any axial play exceeding manufacturer specifications (often as low as 0.5mm) results in an immediate failure. For commercial fleets, failing these inspections disrupts logistics and incurs downtime costs.
4. How Can You Protect Your Car’s Ball Joints from Aging Quickly?
While driving habits matter, the longevity of a ball joint is primarily determined by its sealing technology. The battle for durability is won or lost at the rubber dust boot.
Protecting ball joints relies on maintaining the integrity of the rubber dust boot to prevent water intrusion and grease loss. Selecting parts with high-grade, ozone-resistant rubber compounds is the single most effective way to extend component service life.
Chloroprene Rubber Dust Boot
4.1 The Importance of the Rubber Dust Boot
The dust boot serves two critical functions: retaining the lubricating grease and excluding abrasive contaminants like road salt, sand, and water. Once this barrier is breached, the "sandpaper effect" begins inside the joint, destroying the polished surface of the ball stud in days.
4.2 Quality of Replacement Parts is Crucial
Dive Deeper: The Science of Sealing – Why Material Selection Matters

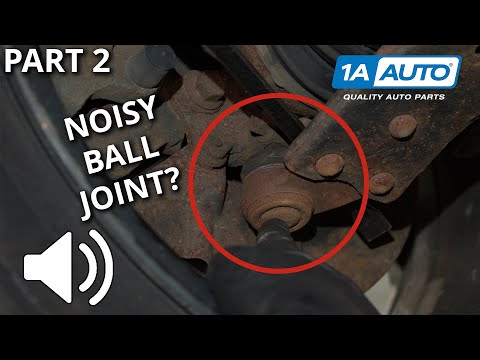

I recently analyzed a diagnostic video that perfectly illustrates the root cause of most ball joint failures. In the footage, a mechanic points out a ball joint that is loose and noisy. However, the "smoking gun" is visible immediately: the rubber boot is torn open.
As shown in the clip, once the boot tears, the internal grease escapes, and moisture enters, leading to rapid corrosion. But why do boots tear? In many aftermarket parts, the failure is chemical, not mechanical. Manufacturers using low-cost Natural Rubber (NR) or generic blends often face premature "ozone cracking." Ozone in the atmosphere attacks the double bonds in polymer chains, causing the rubber to become brittle and crack under stress.
At GJBUSH, we address this by utilizing Chloroprene Rubber (CR) for our dust boots, specifically formulated for high-performance suspension applications. Unlike standard rubber, CR exhibits superior chemical stability.
- Ozone & Weather Resistance: Our CR compound undergoes rigorous ASTM D1171 ozone resistance testing. It resists surface cracking even after years of exposure to road pollutants and UV radiation.
- Thermal Stability: The engine bay and braking systems generate immense heat. Our CR boots maintain flexibility and sealing pressure across a temperature range of -40°C to 120°C.
- Oil Resistance: Suspension components are often exposed to leaking engine oil or road tar. CR prevents the swelling and softening that causes standard rubber boots to slip off the housing.
For Purchasing Managers and R&D Engineers, specifying ball joints with CR boots is a direct strategy to reduce warranty claims. A ball joint is only as good as its seal; by ensuring the rubber can outlast the warranty period, we ensure the steel mechanism inside remains lubricated and wear-free.
4.3 Driving Habits
While material science protects the part, operation plays a role. Consistently driving over potholes at speed or hitting curbs imposes impact loads that can deform the ball stud housing. However, with a robust CR boot protecting the internals, the joint is far better equipped to handle these stresses without seizing.
Conclusion
Detecting a bad ball joint starts with the "12 and 6" shake test, but preventing failure starts with material selection. For OEMs and aftermarket distributors, choosing ball joints equipped with Chloroprene Rubber (CR) dust boots ensures that the critical lubrication barrier remains intact, significantly extending service life.
At GJBUSH, we combine 27 years of rubber manufacturing expertise with precision metal machining to deliver suspension components that withstand real-world abuse. If you need R&D support for vibration control or durable suspension parts, our engineering team is ready to assist.
