Unpredictable dynamic stiffness and premature rubber-to-metal debonding compromise chassis handling. Relying on generic bushing data increases NVH failures. Precision engineering and rigorous multi-axis validation solve this.
A front lower control arm bushing isolates high-frequency chassis vibrations while constraining kinematic wheel movement. Engineering a reliable bushing requires precise natural rubber formulation, stringent CAE multi-physics simulation, and MTS dynamic stiffness validation to prevent premature fatigue cracks and vulcanization separation under multi-axial loads.
Front Lower Control Arm Bushing Engineering
Balancing low-frequency displacement durability with high-frequency vibration isolation requires moving beyond basic geometry. The following sections detail the exact validation protocols, failure metrics, and material science required for OEM-level suspension architecture.
What is the Kinematic Role of a Front Lower Control Arm Bushing?
Chassis designers struggle to balance steering precision with cabin comfort. Stiff bushings harsh the ride, while soft bushings ruin alignment. Accurate radial and axial stiffness curves are mandatory.
The front lower control arm bushing acts as the primary pivot point between the suspension assembly and vehicle frame. It absorbs road impacts and defines suspension geometry by maintaining precise compliance rates across three operational axes during braking and cornering.
Kinematic Suspension Bushing Testing
CAE Simulation and Multi-Physics Coupling
To achieve exact static and dynamic stiffness targets, relying on physical trial-and-error is obsolete. Component engineering requires a closed-loop CAE validation phase.
When acting as a co-development partner, GJBUSH utilizes advanced FEA to predict and resolve core design challenges before mold creation:
- Structural Strength & Stiffness: Predicting deformation under static and dynamic loads to ensure components neither yield nor fracture.
- Fatigue Failure Risk: Simulating stress concentrations under cyclic loading to forecast operational lifespan.
- NVH Optimization: Identifying frequency response curves to eliminate structural vibration and noise sources.
- Thermal Management: Optimizing heat dissipation in high-temperature operating zones near the exhaust or brakes.
- Process Defect Prediction: Modeling die casting and welding flows to optimize manufacturing parameters.
- Topology Optimization: Reducing component mass for lightweighting while maintaining kinematic constraints.
- Multi-Physics Interaction: Analyzing structure-thermal and fluid-solid coupling to guarantee system stability in high-speed scenarios.
- Collision Safety: Simulating body energy absorption and occupant protection across multiple impact conditions.
By mapping the stress distribution in a digital twin, engineers adjust the metal sleeve geometry and rubber volume to prevent localized stress spikes, which catalyze early-stage material shear.
How to Identify and Measure Control Arm Bushing Failure Modes?
Visual inspections miss internal structural degradation. Undetected micro-cracks lead to catastrophic debonding under heavy braking. Quantifiable physical metrics must define end-of-life parameters.
Bushing failure goes beyond subjective cabin noise. True degradation is characterized by permanent rubber deformation, severe hysteresis loss, and complete vulcanization separation between the elastomer and the steel outer shell, compromising suspension geometry.

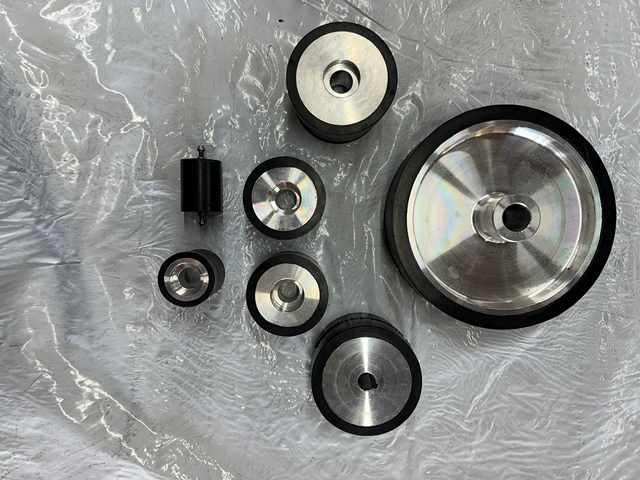

Rubber-to-Metal Debonding Failure
MTS Fatigue Validation and Failure Metrics

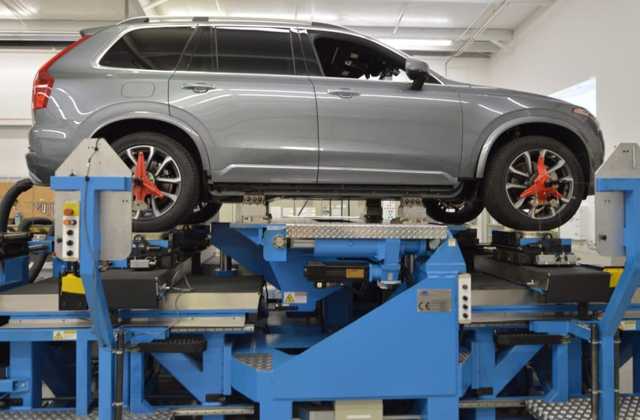

OEM and Tier-1 procurement standards dictate that suspension components survive harsh environmental and mechanical stress without geometry deviation. GJBUSH relies on rigid MTS multi-axis dynamic testing to benchmark durability.
Standard component fatigue tests apply cyclic loads simulating real-world road inputs. The typical testing cycle ranges strictly between 10^5 and 10^6 cycles. The test continues until it reaches the 10^6 cycle mark or triggers a definitive failure threshold.
Quantitative Failure Triggers:
| Metric | Critical Threshold | Engineering Implication |
|---|
| Surface Cracking | >= 2.0 mm | Indicates severe elastomeric fatigue and imminent structural rupture. |
| Dynamic Strain Signal | > 150% abrupt change | Represents internal hysteresis breakdown or internal void formation. |
| Bolt Hole Deformation | >= 0.3 mm | Loss of clamping force integrity, leading to kinematic alignment shifts. |
Once any of these thresholds are met, the part fails the validation protocol. Analyzing these specific limits prevents catastrophic in-service rubber-to-metal separation.
Component vs. Assembly Validation: Why Does Press-Fit Tolerance Matter?
Pressing a new bushing into an old control arm alters radial pre-load. Incorrect interference fit ruins dynamic stiffness. Assembly-level tolerances dictate functional NVH performance.
Replacing just the bushing requires exact interference fit tolerances. Variations in the control arm bore diameter alter the compression ratio of the rubber outer sleeve, shifting the static stiffness curve and potentially inducing early fatigue or push-out failure.
Bushing Assembly Tolerance
Geometric Tolerancing and Pre-Load Optimization
The integration of a rubber-to-metal bushing into the control arm housing is a critical process. The outer diameter of the bushing must be marginally larger than the bore of the control arm.
This intentional interference fit compresses the rubber upon insertion, creating a pre-load state. This pre-load increases the fatigue life of the elastomer by reducing tensile stresses during dynamic operation.
- Insufficient Interference: Leads to micro-movements between the outer metal sleeve and the control arm housing. This fretting wear eventually causes knocking noises and loss of alignment constraints.
- Excessive Interference: Over-compresses the rubber matrix, shifting the radial stiffness curve higher than the CAE design target. This degrades high-frequency NVH isolation, transmitting road harshness directly into the chassis.
For SQE and chassis engineers, validating the dimensional accuracy of both the bushing outer shell and the arm bore is mandatory. Consistent IATF16949 manufacturing processes ensure repeatable press-fit characteristics across volume production.
How Does Advanced Rubber Formulation Elevate NVH Performance?
Standard natural rubber degrades rapidly under high thermal loads and high-frequency vibrations. Inadequate damping causes premature hardening. Custom elastomeric chemistry is the only solution.
Optimizing the natural rubber formula involves molecular modification to control hysteresis and thermal expansion. Engineering the exact blend of polymers and fillers allows the bushing to isolate specific frequency bands while maintaining dimensional stability in extreme environments.
Rubber Damping Formulation
High-Frequency Isolation and High-Temperature Chemistry
GJBUSH develops custom formulations to address the conflicting demands of wide temperature ranges and specific dynamic frequencies.
High-Frequency Damping Formulation:

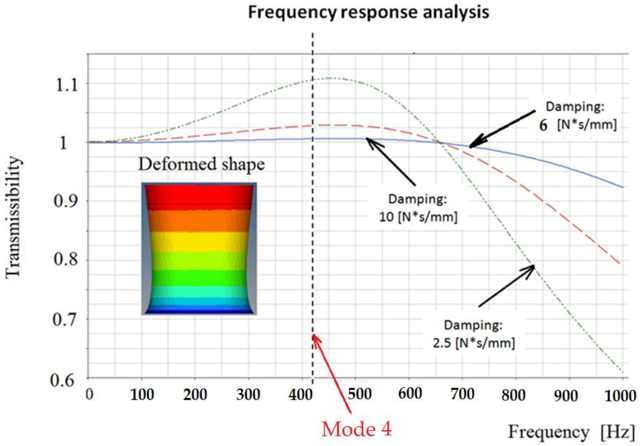

To isolate high-frequency road inputs, standard Natural Rubber (NR) requires modification. GJBUSH engineers utilize ultra-high molecular weight NR and reduce protein content to minimize hysteresis heat generation. An NR/SBR blend is deployed alongside a specialized carbon black and silica co-filler system. This specific matrix significantly enhances the damping capability, effectively broadening the vibration isolation frequency band when combined with tailored internal bushing geometries.
High-Temperature Stability (> 80°C):
Close proximity to exhaust routing or heavy braking zones exposes bushings to extreme thermal stress. Normal NR hardens and cracks rapidly above 80°C.
- Polymer Blending: Incorporating EPDM into the matrix to drastically improve thermo-oxidative resistance.
- Antioxidant Systems: Utilizing composite anti-aging agents to prevent molecular chain scission.
- Thermal Expansion Control: Formulating specific low-expansion compounds to prevent dimensional deviation, ensuring the press-fit integrity and dynamic stiffness remain constant across wide operating temperature gradients.
Technical FAQ: Expert Answers on Front Suspension Rubber Bushes?
Chassis engineers frequently encounter contradictory data regarding bushing validation. Ambiguous test parameters delay PPAP approval. Clear, data-backed answers streamline the procurement and engineering cycle.
Addressing specific SQE and engineering queries clarifies the technical path from prototype to mass production. Focusing on measurable test parameters ensures alignment between Tier-1 system requirements and Tier-2 component manufacturing capabilities.
Chassis Engineering Inspection
Essential Procurement and Engineering Inquiries
- How do you guarantee sample-to-production consistency?
Consistency is driven by strict APQP/PPAP adherence under IATF16949:2016 standards. In-house rheometer testing verifies the cure characteristics of every rubber batch, ensuring the loss tangent and shear modulus match the approved prototype phase exactly. - Can you modify the radial-to-axial stiffness ratio?
Yes. By altering the internal geometry of the metal insert (e.g., adding voids or flanging) and adjusting the elastomeric crosslink density, the directional stiffness ratios can be tuned without changing the external package dimensions. - What surface treatments prevent bonding failure?
Preventing debonding requires precise surface preparation. The metal substrates undergo strict degreasing, shot blasting to a specific roughness profile, and the application of a dual-coat adhesive system before injection molding and vulcanization.
Conclusion
Designing a robust front lower control arm bushing demands rigorous CAE modeling, precise elastomeric chemistry, and uncompromising MTS fatigue validation. Relying on generic components compromises chassis integrity. Request a technical review with GJBUSH engineers to align your specific suspension project requirements with proven, data-driven manufacturing capabilities.
