Empty commercial trucks and off-road pickups frequently suffer from violent chassis bouncing, harsh ride quality, and high-frequency vibrations when navigating uneven roads or construction sites. This rigid, unforgiving dynamic behavior not only destroys passenger comfort but severely accelerates the mechanical fatigue of the entire chassis architecture.
Improving heavy-duty leaf spring suspension comfort requires optimizing the shackle bushings at both ends of the spring pack. By utilizing high tear-resistant Natural Rubber (NR) formulations, preventing interfacial debonding via high-pressure injection molding, and applying swaging to reverse residual stress, manufacturers can effectively isolate friction noise and drastically enhance commercial vehicle chassis NVH.
Truck and Pickup Leaf Spring Suspension NVH and Bouncing Analysis
For system-level NVH tuning of commercial vehicles and premium pickups, Tier-1 suppliers must rely on heavy-asset manufacturing partners with profound engineering capabilities. Founded in 1998, GJBUSH leverages over 40 years of specialized rubber-to-metal product development experience. Operating as an SGS IATF 16949 and ISO 14001 certified advanced manufacturing facility, we deploy over 200 state-of-the-art machines, including an armada of 400T+ automated injection vulcanization presses and robotic surface treatment lines. Backed by a comprehensive proprietary material fatigue database (S/N, E/N) and a world-class tri-channel fatigue testing matrix, GJBUSH delivers high-durability, zero-defect suspension solutions to global OEMs and commercial chassis integrators.
1. Why Do Truck and Pickup Leaf Spring Suspensions Bounce Severely? Heavy-Duty NVH and Metal Friction FMA
Many consumers and novice mechanics mistakenly attribute a stiff commercial chassis solely to harsh shock absorber valving. In reality, on vehicles utilizing solid axle architectures, the multi-leaf spring serves as both the primary load-bearing beam and a massive, natural friction dampener. The only barrier capable of stopping this intense kinetic energy from transferring directly into the vehicle frame is the rubber shackle bushing.
When multi-leaf springs flex and rub against each other to dissipate energy under load, they generate severe high-frequency mechanical noise and micro-vibrations. If the shackle bushings possess an excessively high static stiffness or lose their dampening ability, this harsh metal-on-metal friction transfers directly into the cabin.
Leaf Spring Friction Heat and Bushing NVH Dampening
Acoustic Transfer and Micro-Abrasive Wear Failure Mode Analysis
From an engineering perspective, the dual nature of the leaf spring as both a structural support and a damping mechanism creates immense NVH isolation challenges.
1. Multi-Leaf Friction and Acoustic Resonance (FMA):

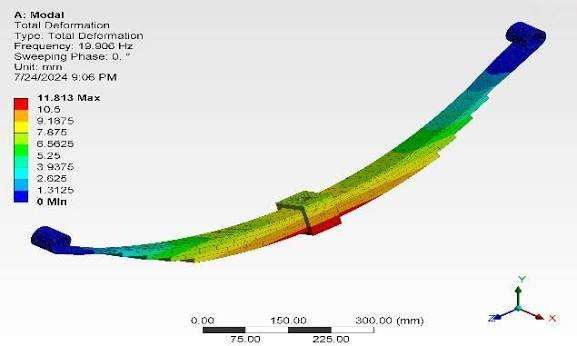

A commercial vehicle’s leaf spring pack consists of multiple curved spring steel blades stacked together. When the vehicle encounters a deep pothole or carries a massive payload, all the steel blades flex in unison. During this synchronized bending, adjacent steel blades slide against one another, creating intense, dry mechanical friction. While this friction is highly effective at absorbing massive, low-frequency kinetic suspension energy, it simultaneously generates a tremendous amount of high-frequency acoustic noise—akin to a harsh, metallic scraping. If the leaf spring bushing (shackle bushing) connecting the spring eye to the chassis is poorly tuned—such as having a hyper-rigid static stiffness without frequency-dependent isolation capabilities—these high-frequency friction vibrations travel unimpeded through the U-bolts and chassis shackles, causing severe structural resonance inside the cabin.
2. Three-Body Abrasive Wear and Clearance Noise:
In brutal operating environments like construction sites, logging roads, or muddy off-road trails, standard sliding rubber bushings fail rapidly. When contaminated mud and water penetrate the microscopic gaps between the inner rubber bore and the metal shackle pin, high-hardness quartz sand particles are introduced into the friction interface. This initiates catastrophic "Three-Body Abrasive Wear." As the suspension articulates thousands of times a day, these trapped sand particles act like microscopic milling cutters, violently grinding away the inner diameter of the rubber. Once this wear creates even a millimeter of physical clearance, the suspension geometry becomes loose. Every time the wheel hits a bump, the hundred-kilogram leaf spring assembly slams rigidly against the chassis mount, generating massive, low-frequency clunking noises.
3. GJBUSH Benchmarking and Transmissibility Testing:
To scientifically evaluate and resolve these NVH failures, the GJBUSH testing center utilizes a highly advanced 400Hz High-Frequency Dynamic Tester to simulate the exact micro-excitations and metal friction profiles of leaf spring systems. We benchmarked standard ultra-rigid commercial bushings against our topologically optimized, non-linear stiffness designs. Under a simulated static payload of 3,000 kilograms, empirical telemetry data proved that the GJBUSH optimized bushing reduced dynamic transmissibility by nearly 35% in the critical 100Hz to 300Hz frequency band. This precise high-frequency filtering not only isolates the harsh metallic scraping of the spring pack but significantly smooths out the jarring, choppy ride characteristics commonly experienced in unladen pickup trucks.

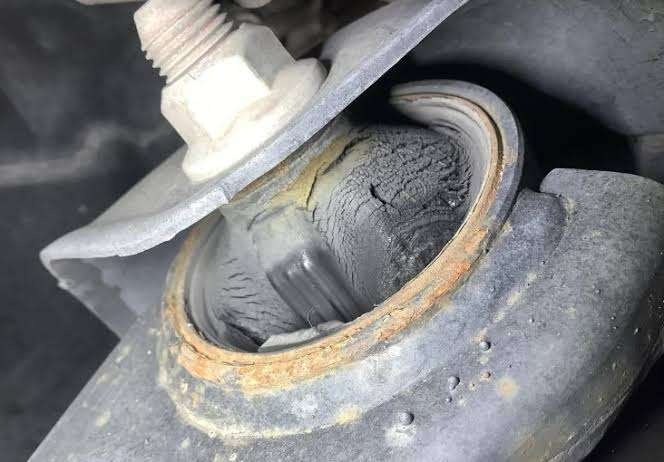

2. What Causes Leaf Spring (Shackle) Bushing Cracking? The Engineering Battle Between Radial Heavy Loads and Torsional Fatigue
Standard passenger car control arm bushings rarely need to manage more than a few hundred kilograms of force. In stark contrast, a single leaf spring shackle bushing on a fully loaded heavy-duty truck or commercial pickup is routinely subjected to static and dynamic downforces measured in multiple tons.
Early cracking and structural failure in leaf spring bushings stem from the brutal combination of extreme radial heavy loads and complex shearing stresses caused by high-angle suspension torsion. Without precise CAE optimization to balance support stiffness and torsional fatigue limits, the polymer will rapidly tear.
Commercial Vehicle Torsional Articulation and Bushing Failure
Extreme Compound Loading and Torsional Tearing Mechanics
The suspension pivot points on a heavy-duty commercial vehicle represent one of the most punishing physical environments in automotive polymer engineering.
1. Radial Overloading and Compression Set (FMA):
When a commercial truck bed is loaded with tons of cargo, that massive gravitational force is transferred entirely through the chassis rails, down through the shackles, and concentrated directly onto the radial cross-section of the leaf spring bushing. If the internal architecture of the bushing is poorly designed, or if the rubber compound lacks sufficient cross-linking density, this prolonged static crushing force causes the internal polymer chains to irreversibly slip and break. This failure mode is known as "Compression Set." The bushing becomes visibly flattened and permanently deformed. Consequently, the central metal inner sleeve shifts drastically off-center, entirely destroying the suspension alignment and often resulting in direct metal-to-metal interference between the shackle pin and the outer eyelet.
2. Torsional Fatigue and Flange Stress Concentrations:
An even more destructive failure mode occurs dynamically when the vehicle navigates deep ruts or performs severe cross-axle off-roading. During these maneuvers, the entire leaf spring assembly undergoes extreme torsional articulation, frequently twisting at angles exceeding ±15 degrees. Because the heavy-duty rubber bushing is press-fitted tightly into the spring eye and clamped by the shackle, it cannot physically rotate or slip; it must absorb this massive rotational force entirely through the internal shear deformation of its polymer matrix. Under these extreme twist angles, immense kinetic stress instantaneously concentrates at the flanged edges (shoulders) of the bushing or at the bonding line of the inner metal sleeve. If the compound lacks supreme tear resistance, microscopic fissures form instantly. Under cyclic loading, these fissures rapidly propagate into massive macroscopic tears, eventually snapping the bushing into completely separate pieces.

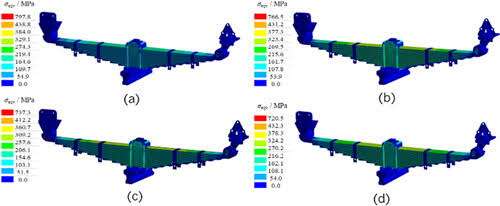

3. CAE Digital Twins and Non-Linear Stiffness Decoupling:
To conquer this brutal physical paradox, the GJBUSH CAE (Computer-Aided Engineering) co-development team leverages our proprietary Rubber Material Database (S/N, E/N curves) from the very inception of a project. We input hyperelastic constitutive models into our FEA (Finite Element Analysis) software, subjecting digital twins to extreme multi-ton radial loads and maximum twist angles. By calculating the 3D Strain Energy Density, we execute topological optimization on the bushing’s geometry—introducing precise internal voids, scalloped edges, and calculated chamfers. This structural reconstruction successfully disperses concentrated shear stresses across the entire rubber volume. The result is a non-linear stiffness profile that guarantees unyielding radial support for heavy payloads while maximizing the ultimate dynamic torsional fatigue limit of the polymer matrix.
3. How to Formulate Rubber for Heavy-Duty Truck Leaf Spring Bushings? Natural Rubber (NR) Tear Resistance and Compression Set Optimization
Flawless structural CAE design dictates how stress is distributed, but the chemical formulation dictates the absolute physical ceiling of how much stress the part can survive. When dealing with multi-ton commercial payloads, simply instructing the mixing mill to dump more reinforcing fillers to hit a higher Shore hardness is engineering malpractice that destroys ride comfort.
Developing an elite heavy-duty leaf spring bushing formulation requires leveraging the unique strain crystallization properties of premium Natural Rubber (NR) for extreme dynamic tear resistance, combined with a Semi-Efficient Vulcanization (Semi-EV) system to perfectly balance fatigue life and thermal compression set.
Heavy-Duty Natural Rubber Formulation and Compression Set Control
Polymer Network Reconstruction and Rheological Quality Control
A micro-deviation in the chemical formulation will invariably amplify into a catastrophic macro-failure after a million cycles of commercial suspension impact.
1. The Irreplaceable Physics of Natural Rubber (NR):
For chassis dampening components pushed to the absolute limits of gravitational loading, Natural Rubber remains the undisputed king of elastomers. When a heavily loaded truck bounces over a rocky trail, the shackle bushing is violently stretched and contorted. Under this immense strain, the randomly coiled polymer chains within Natural Rubber spontaneously align into highly ordered micro-crystalline structures parallel to the direction of force—a phenomenon known as "Strain Crystallization." This effectively means the rubber physically reinforces itself at the exact millisecond and location of maximum stress. This self-reinforcing mechanism grants the bushing phenomenal dynamic tear strength, supreme elasticity, and a resilience that synthetic rubbers like EPDM cannot replicate. GJBUSH strictly utilizes premium-grade natural elastomers, such as SMR CV60, establishing a bulletproof foundation for our heavy-duty matrix.
2. The Ultimate Vulcanization Compromise:
During the critical curing process, where the polymer chains are chemically linked, formulators face a severe engineering dilemma. A Conventional Vulcanization (CV) system—utilizing high sulfur and low accelerators—generates predominantly polysulfidic bonds. These long, flexible bonds grant incredible dynamic fatigue flex life but exhibit terrible thermal stability, meaning a heavily loaded CV bushing will suffer massive "Compression Set" and sag permanently under weight. Conversely, an Efficient Vulcanization (EV) system creates short, stiff mono-sulfidic bonds, offering incredible resistance to compression set but turning the rubber dangerously brittle under dynamic twisting.
GJBUSH chemical experts deploy a meticulously calculated Semi-Efficient Vulcanization (Semi-EV) system. By strictly managing elemental sulfur dosing (typically 1.0–1.5 phr) and pairing it with high-grade accelerators, we forge a 3D hybrid matrix featuring a perfect ratio of mono-, di-, and poly-sulfidic bonds. This molecular architecture ensures survival under millions of high-angle torsional twists while locking the static compression deformation strictly within the tightest global OEM tolerances.
3. Precision Rheology and High-Heat Validation:
To guarantee absolute batch-to-batch consistency for mass production, the GJBUSH physical testing laboratory is armed with high-precision Mooney Viscometers, Rheometers, and automated durometers. We validate our formulations by placing vulcanized prototypes into our Heat Aging Chambers at 100°C for 72 continuous hours under heavy static compression. By subjecting the compound to this thermal-mechanical torture, we ensure the compression set percentage remains vastly superior to standard aftermarket requirements, permanently eradicating the dreaded "sagging chassis and loose suspension" syndrome that plagues aging commercial vehicles.
4. How to Prevent Interfacial Debonding in Leaf Spring Bushings? Automated Coating and Large-Tonnage Precision Injection Molding
Analyzing warranty claims from the commercial aftermarket reveals a disturbing trend: many heavy-duty bushings are not scrapped because the rubber body tore, but because the rubber suffered a catastrophic interfacial debonding from the central metal sleeve. Once the metal sleeve loses chemical adhesion, it slides freely within the rubber, destroying alignment and creating severe safety hazards.
Preventing fatal interfacial debonding requires fully automated cleanroom surface treatments to guarantee peak chemical reactivity, coupled with 400T+ closed-loop injection molding to eliminate high-pressure compound turbulence that washes away the adhesive.
400T Injection Molding and Automated Interfacial Coating
Covalent Chemical Bonding and "Adhesive Sweep" FMA
Physical press-fitting can never replace a molecular covalent bond. However, the integrity of that chemical reaction is entirely dependent on the stability of the heavy manufacturing environment.
1. Flow Turbulence and "Adhesive Sweep" (FMA):
Legacy contract manufacturers relying on outdated, open-cavity compression molding presses suffer from horrific debonding rates when producing large-volume commercial bushings. As the massive hydraulic press closes, the highly viscous, pre-heated block of raw rubber is violently crushed, creating chaotic, turbulent flow dynamics within the mold cavity. This massive physical friction acts like an abrasive, literally scraping and washing away the carefully applied chemical bonding agents from the metal sleeve—a fatal defect known as "Adhesive Sweep." This leaves microscopic bare metal blind spots completely devoid of adhesive. When the commercial vehicle is loaded with payload and hits the brakes, immense shear forces attack these unbonded blind spots, violently pushing the metal sleeve entirely out of the rubber matrix.
2. Industry 4.0 Automated Cleanroom Coating:
To meet the zero-defect standards demanded by global OEMs and top-tier Tier-1 suppliers, GJBUSH has invested millions into fully automated, heavy-asset surface preparation infrastructure. Every metal sleeve, precision-machined via our flexible CNC centers, undergoes automated shot-blasting and phosphating to remove oxidation and achieve the perfect micro-roughness. The components are then immediately transferred into a climate-controlled, dust-free cleanroom. Here, advanced robotic arms apply dual-layer bonding agents (such as Chemlok or Cilbond) to a micron-level uniform thickness. This total automation eliminates uneven manual brush strokes and permanently removes the risk of human sweat or ambient machine oil contaminating the highly sensitive chemical interface.
3. The 400T Precision Injection Paradigm Shift:
Within our core vulcanization sector, GJBUSH operates an extensive matrix of 400T+ high-pressure automated injection molding presses. For heavy-duty leaf spring bushings, we utilize advanced CAE mold flow analysis to engineer highly precise runner and gating systems. The plasticized, high-temperature elastomer is injected into a sealed, absolute-vacuum cavity under immense servo-hydraulic pressure. Crucially, the flow vectors are designed to run perfectly parallel to the metal bonding surfaces as a laminar flow. This controlled, parallel injection entirely eliminates the perpendicular crushing force that causes Adhesive Sweep. During destructive validation on our 100KN and 200KN Electronic Tensile Machines, GJBUSH assemblies consistently demonstrate the ultimate benchmark of adhesion: the rubber body is violently torn to shreds, but the chemical bond at the metal interface remains absolutely impenetrable.
5. How to Drastically Increase Commercial Vehicle Bushing Lifespan? Swaging (Pre-Compression) Process and Multi-Channel Fatigue Testing
For commercial trucks and heavy-duty pickups expected to survive hundreds of thousands of miles of severe abuse, possessing a flawless NR formulation and pristine injection molding is only half the battle. If a heavy-duty bushing is installed while still harboring massive internal stress generated during manufacturing, its lifespan will be severely crippled.
The ultimate heavy-asset manufacturing technology to elevate dynamic fatigue limits is the "Swaging" (Pre-Compression) process. By utilizing heavy hydraulic dies to physically crush the outer metal sleeve, manufacturers entirely neutralize cooling-induced residual tensile stress, rocketing fatigue lifespan by up to 50%.
Swaging Process and Multi-Channel Fatigue Testing
Residual Tensile Stress Eradication and MES Digital Error Proofing
This capital-intensive, post-processing intervention is the definitive barrier separating premium OEM-grade chassis components from rapid-failure aftermarket commodities.
1. Thermal Shrinkage and Fatal Tensile Stress (FMA):
Inside the high-pressure injection mold, the rubber and metal chemically cross-link at blistering temperatures exceeding 160°C. However, when the heavy-duty bushing is demolded and cools to ambient room temperature, fundamental thermodynamics take over. The linear coefficient of thermal expansion of the polymer is vastly higher than that of the steel outer and inner sleeves. The rubber attempts to undergo massive volumetric shrinkage as it cools, but because it is chemically welded to the unyielding metal skeleton, it cannot contract. Consequently, an enormous amount of "Residual Tensile Stress" becomes permanently trapped deep within the rubber network. Rubber is highly resilient to compression but highly vulnerable to tension. Installing a bushing already stretched to its limit ensures that the moment the truck hits a pothole, the surface will immediately tear and propagate deep fissures.
2. Swaging Intervention and Radial Pre-Compression:
To shatter this thermodynamic limitation, GJBUSH strictly mandates the "Swaging" process for all high-durability, metal-sleeved suspension components. After the leaf spring bushing has completely cooled, it is loaded into a specialized, heavy-tonnage hydraulic swaging machine. Utilizing a precision-machined 8-jaw conical die, we apply hundreds of tons of uniform radial force to physically crush the outer metal sleeve, permanently reducing its outer diameter by a calculated 2 to 3 millimeters.
3. Tri-Channel Fatigue Rigs and MES Integration:
This violent mechanical compression forces the outer sleeve inward, brutally squeezing the internal elastomeric matrix. This action completely neutralizes the fatal residual tensile stress and actively injects a highly beneficial state of "Pre-Compression." Continuous torture testing on our Single-Channel Torsion, Dual-Channel, and Tri-Channel Fatigue Testing Platforms—subjecting parts to millions of X, Y, and Z-axis compound loads—proves unequivocally that GJBUSH’s swaged commercial bushings exhibit a stable 50% increase in fatigue rupture lifespan compared to standard unswaged variants.
Furthermore, GJBUSH secures this manufacturing excellence by deeply integrating a factory-wide Manufacturing Execution System (MES). From the specific rheometer curve of the raw compound batch and the real-time cavity pressure of the 400T injection press, to the exact micron-level stroke data of the swaging die, every critical process variable is converted into a digital barcode and permanently bound to that specific production batch. This extreme level of Industry 4.0 digital oversight ensures that every single bushing delivered to our OEM partners possesses the same impenetrable heavy-duty performance as the very first prototype.
Conclusion: Co-Developing Heavy-Duty NVH for Commercial Chassis Dominance
Improving the NVH ride comfort and durability of truck and pickup leaf spring suspensions is far more complex than simply adjusting rubber hardness; it is a profound industrial battle involving high-molecular polymer chemistry, complex fluid dynamics, and heavy-asset metal deformation. From leveraging Natural Rubber strain crystallization to resist heavy-load tearing, and utilizing automated cleanroom coating to prevent interfacial debonding, to deploying 400T injection molding and swaging processes to reverse fatal thermal stress—any compromise in this heavy-asset manufacturing chain guarantees catastrophic failure during field testing.
As a foundational manufacturing pioneer with over 40 years of specialized rubber-to-metal R&D heritage, GJBUSH operates relentlessly on the principle of "Creating Value for Customers." Backed by our SGS IATF 16949 certification, an arsenal of over 200 advanced smart-manufacturing machines, and world-class tri-channel fatigue testing capabilities, we have constructed an absolute barrier of quality from digital formulation to tens of millions of zero-defect mass production deliveries. If you are engineering a next-generation commercial vehicle or premium pickup platform that demands extreme payload durability combined with passenger-car NVH refinement, or if you are desperately seeking to resolve a bottleneck of frequent shackle bushing tearing and debonding, submit your 3D CAD models and DVP testing parameters to our engineering team today. GJBUSH will leverage our profound CAE co-development expertise and elite swaging mass production matrix to become your most trusted, strategic global partner!
