When summer arrives, extreme heat and frequent torrential rains subject vehicle chassis systems to brutal operating conditions. Drivers often complain of irritating squeaks, groans, or clunking noises when driving over speed bumps or muddy roads, which is typically a direct symptom of worn or friction-compromised stabilizer bar (anti-roll bar) rubber bushings.
Reducing summer stabilizer bushing noise requires structural upgrades tailored against heat softening and mud intrusion. Relying purely on self-lubricating rubber or Teflon fabrics leads to inevitable wear. Upgrading to high-interference clamp designs or fourth-generation secondary vulcanization bonding entirely replaces physical sliding with polymer torsional deformation, drastically improving NVH acoustics and steering response.
Anti-Roll Bar Bushing NVH Noise and Wear Analysis
Effectively resolving chassis NVH warranty claims requires Tier-1 suppliers to partner with a source manufacturer possessing profound co-development capabilities and heavy-asset manufacturing power. Founded in 1998, GJBUSH relies on a founder with over 40 years of specialized rubber-to-metal product development experience, particularly leading the industry in advanced bushing architecture. Operating as an SGS IATF 16949 and ISO 14001 certified facility, GJBUSH deploys over 200 high-end manufacturing machines, including 400T+ automated injection vulcanization presses and robotic surface treatment lines. Backed by an extensive proprietary material database (S/N, E/N) and a tri-channel fatigue testing laboratory, we deliver zero-defect, highly engineered anti-roll bar bushing solutions for global automotive OEMs and heavy-duty agricultural machinery enterprises.
1. Why Do Chassis Anti-Roll Bar Bushings Squeak in Summer? Sliding Friction and NVH Failure Analysis

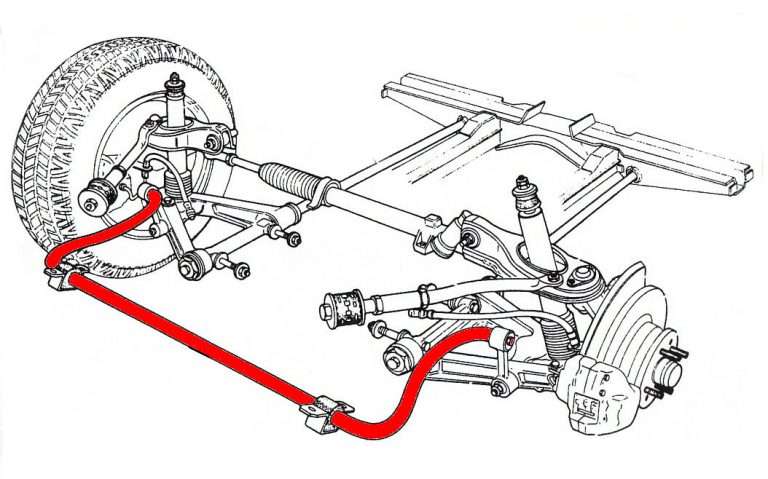

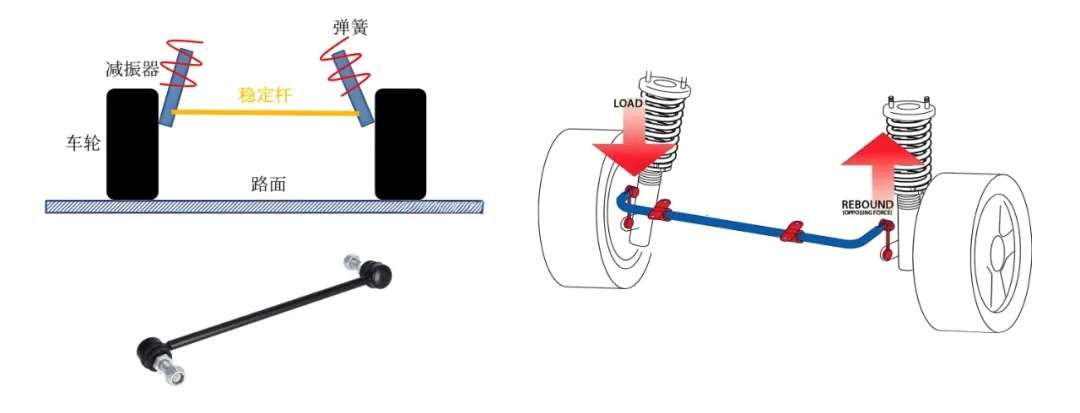

The stabilizer bar (anti-roll bar) is a U-shaped torsion spring mounted horizontally across the vehicle’s front and rear. It hinges to the subframe via rubber bushings. When the vehicle corners, the bar twists to provide anti-roll stiffness. During hot, rainy summer months, this specific friction interface becomes extremely vulnerable.
High summer temperatures soften the rubber compound, while rainwater and abrasive mud easily penetrate the assembly gaps of standard sliding bushings. This microscopic abrasive sliding not only accelerates rubber wear but triggers severe high-frequency NVH squeaks under multi-axial fatigue loads.

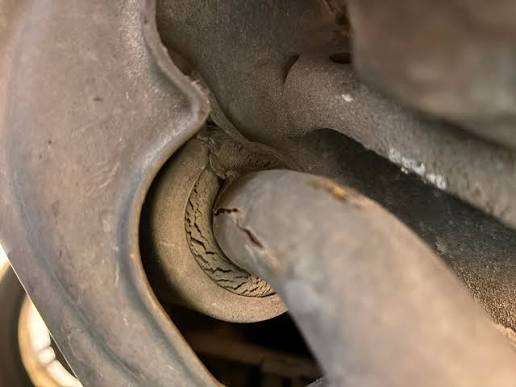

Mud Intrusion and Sliding Friction Failure in Anti-Roll Bar Bushings
Failure Mode Analysis (FMA) of Mud Intrusion and Micro-Abrasive Wear
For traditional split-type or sliding stabilizer bar bushings, the inherent assembly clearance between the rubber bore and the metal bar is the exact breeding ground for summer noise.
1. Three-Body Abrasive Wear Mechanics:
In dry, sterile conditions, the relative sliding between the rubber bore and the metal bar operates under smooth dry friction or boundary lubrication. However, when vehicles traverse flooded roads during summer storms, water heavily laden with hard quartz sand and grit penetrates the micro-gaps between the bushing and the stabilizer bar. Instantly, the friction interface transforms from "rubber-to-metal" to "rubber-sand-metal." As the suspension articulates up and down, these trapped sand particles act like microscopic milling cutters. They violently gouge and abrade the softer rubber bore. This rapid material loss increases the internal diameter, causing the bushing to lose its gripping force on the bar and resulting in low-frequency clunking upon impact.
2. High-Temperature Polymer Softening and the Stick-Slip Effect:
Summer tarmac temperatures frequently exceed 60°C. Prolonged exposure to this radiant heat causes the rubber matrix to physically soften and undergo mild thermal-oxidative aging. As the rubber softens, its surface coefficient of friction changes non-linearly. When the stabilizer bar twists, the interface experiences an alternating cycle of gripping and releasing—a phenomenon known as the "Stick-Slip Effect." This rapid physical stuttering converts low-frequency mechanical articulation into high-frequency acoustic resonance. This resonance travels directly through the subframe and into the cabin, manifesting as a highly irritating, high-pitched squeak.
3. Extreme Environment Simulation at GJBUSH:
Engineers cannot design based on assumptions. In the GJBUSH NVH testing center, we deploy industrial Heat Aging Chambers and Ozone Resistance Chambers. To replicate brutal summer conditions, we place fully assembled stabilizer bar test rigs into high-heat, high-humidity environments while periodically injecting a standardized abrasive mud slurry. Utilizing our 400Hz High-Frequency Dynamic Tester, we subject the assembly to tens of thousands of torsional cycles. Our empirical data clearly demonstrates that standard pure-rubber sliding bushings, lacking specialized sealing or chemical bonding, suffer a radial stiffness drop of over 25% within 120 hours of mud injection, accompanied by an exponential spike in decibel output.
2. Can Pure Rubber or Teflon Bushings Prevent Squeaks? Self-Lubricating Compounds vs. Teflon Wear Mechanisms
To combat sliding friction noise, early automotive engineering introduced first-generation (pure rubber self-lubricating) and second-generation (Teflon fabric-lined) bushings. Many aftermarket mechanics still falsely believe that a Teflon liner is a permanent cure for squeaks. This is a severe engineering misconception.
Both pure rubber and Teflon-lined bushings rely on a "sliding" design architecture. While they achieve excellent acoustic dampening when new via low friction coefficients, prolonged multi-axial fatigue eventually destroys the coating. Once the Teflon peels, severe metal-to-rubber dry friction causes explosive noise recurrence.

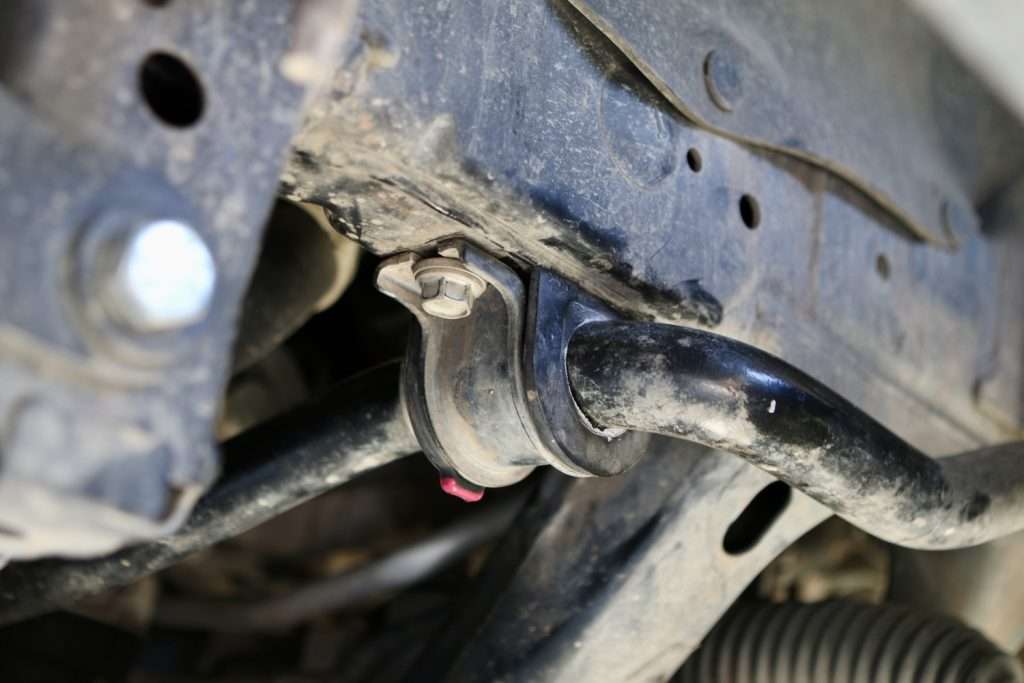

Teflon Liner Delamination and Abrasive Wear Mechanisms
The Lifespan Limitations of Sliding Friction Interfaces
Attempting to mask sliding friction by lowering the friction coefficient is merely a temporary bandage, not a structural cure.
1. The Limitations of First-Generation Self-Lubricating Rubber:
This architecture is the simplest and cheapest to manufacture. To facilitate sliding and mute noise, compounders blend specific ratios of paraffin waxes, silicone oils, or PTFE micro-powders directly into the rubber mixer. However, these internal lubricants rely on "migration" to reach the surface. Under intense summer heat, the exuded lubrication film is rapidly washed away by heavy rain and road spray. Once this fragile film ruptures, the dynamic and static friction coefficients diverge sharply. The previously smooth articulation turns into violent stick-slip friction, generating continuous groaning noises over uneven pavement.
2. Second-Generation Teflon (PTFE) Liner Delamination FMA:
To fix the flaws of pure rubber, engineers began bonding a layer of Polytetrafluoroethylene (PTFE/Teflon) fabric directly to the inner bore of the bushing. For the first two years of a vehicle’s life, this solution appears flawless. The ultra-low surface friction of PTFE delivers phenomenal NVH results.
However, PTFE processing faces two massive engineering hurdles: high manufacturing costs/low yield rates, and weak interfacial peel strength. PTFE is inherently non-elastic. When the vehicle is subjected to continuous high-frequency vibrations and multi-axial tearing on rough roads, microscopic asperities on the metal bar act like a rasp against the Teflon fabric. Over time, the Teflon layer cracks, wrinkles, and eventually suffers massive localized delamination.
3. Empirical Benchmarking Data:
GJBUSH utilizes our Dual-Channel Fatigue Testing Platforms to benchmark these legacy designs against modern requirements.
| Bushing Architecture | Initial Friction Coefficient | Friction Coefficient After 200k Mud Cycles | Risk of Noise Recurrence |
|---|
| Gen 1: Self-Lubricating Rubber | 0.45 – 0.55 | 0.85 (Lubricant washed away) | Extremely High (~1 Year) |
| Gen 2: Teflon (PTFE) Lined | 0.15 – 0.20 | 0.75 (Coating torn and delaminated) | High (~2-3 Years) |
Our tests reveal a fatal flaw: when the Teflon liner shreds, the hard PTFE debris becomes trapped in the gap, acting as a highly abrasive foreign body that aggressively destroys the remaining rubber. For modern chassis architectures demanding hundreds of thousands of miles of maintenance-free operation, sliding bushings are fundamentally obsolete.
3. How to Tune Clamp-Style Stabilizer Bushing Stiffness? High Interference Fit vs. High-Angle Rubber Torsion Fatigue
If relative sliding guarantees mud intrusion and abrasive noise, the logical next step is to clamp the rubber so tightly onto the metal bar that it cannot slide at all. This logic birthed the third-generation engineering solution: the clamped (high-interference) stabilizer bushing.
Clamp-style bushings utilize aggressive negative internal tolerances to generate massive radial clamping force, converting sliding friction entirely into the internal torsional shear deformation of the rubber. While this drastically cuts noise, it creates severe assembly line bottlenecks and risks early fatigue tearing under high articulation angles.
Interference Fit Assembly and Torsional Fatigue Analysis
The Engineering Compromise Between Torsional Shear and Fatigue Life
Preventing the metal and rubber from sliding means transferring 100% of the destructive kinetic energy directly into the polymer chains of the rubber matrix.
1. The Double-Edged Sword of High Interference:
To prevent the stabilizer bar from shifting axially or slipping circumferentially inside the bushing, clamp-style designs employ extreme negative bore tolerances. They are often reinforced with rigid metal outer brackets or hard plastic bases. This provides the vehicle with highly direct, immediate roll-stiffness response, making it highly favored for sport-tuned chassis setups.
However, this creates a nightmare on the OEM assembly line. The excessive interference fit makes the bushing incredibly difficult to install. Assembly line workers must apply massive external force or rely on specialized hydraulic jigs just to close the mounting clamps, severely bottlenecking the production Takt time.
2. FMA on Rubber Tearing Under High-Angle Torsion:
When an SUV articulates over a deep off-road rut, the stabilizer bar can experience extreme torsional angles, sometimes exceeding ±20 degrees. Because the inner bore of the rubber is gripping the bar with immense force and cannot slip, the internal polymer chains are subjected to catastrophic tensile and shear deformation. If the rubber formulation lacks elite elongation at break and tear strength, these extreme shear stresses instantly trigger microscopic ruptures between the inner and outer layers of the bushing. These cracks propagate rapidly under cyclic loading until the bushing is literally twisted in half. Once the rubber shears, the clamping force vanishes, the squeaks return, and the vehicle’s anti-roll capability drops off a cliff.
3. GJBUSH’s Material Database and CAE Optimization:
Developing high-interference clamp bushings requires precision, not guesswork. The GJBUSH CAE engineering team leverages our proprietary Rubber Material Database (S/N, E/N curves). We input hyperelastic constitutive models into our Finite Element Analysis (FEA) software to simulate 3D stress contours under varying interference loads and extreme twist angles. By strategically engineering internal void geometries, scalloped edges, and optimized chamfers, we successfully disperse the peak shear stresses without sacrificing radial stiffness. We then validate these digital models on our physical Single-Channel Torsion Testing Platforms, applying millions of high-angle twists to guarantee the polymer matrix will never rupture under peak strain.
4. How to Radically Drop Anti-Roll Bar NVH Complaints? Secondary Vulcanization Bonding Process and Chassis Dynamics
To simultaneously achieve effortless assembly line installation, razor-sharp roll response, and absolute, permanent silence over the vehicle’s entire lifecycle, premium European and North American OEMs have transitioned to the ultimate fourth-generation architecture: the Secondary Vulcanization (Bonded) Stabilizer Bar Assembly.
The secondary vulcanization process Abandons mechanical clamping entirely. Instead, chemical adhesives are applied directly to the stabilizer bar, and the rubber bushings are vulcanized onto the metal via heated tooling. This irreversible covalent bond creates a true "zero-slip" interface, permanently sealing out mud and water.
Secondary Vulcanization Bonding Process and NVH Optimization
The Absolute Barrier of Chemical Bonding and Dynamic Upgrades
Fusing individual bushings into a single, chemically bonded stabilizer bar assembly is a definitive technological paradigm shift in modern chassis NVH engineering.
1. The Total Eradication of Interfacial Debonding and Mud Intrusion (FMA):
The core principle of secondary vulcanization is upgrading the physical contact interface into a molecular-level chemical covalent bond. Because the rubber is literally "grown" onto the steel bar, there are zero physical gaps between the two materials. This means that no matter how deep the summer floodwaters are, or how muddy the off-road trail gets, moisture, abrasive sand, and corrosive road salts absolutely cannot penetrate the friction interface—because the interface itself has been eliminated. By totally preventing relative sliding between the metal and rubber, friction squeaks are fundamentally eradicated at the root, and abrasive wear becomes a physical impossibility.
2. Linear Stiffness Tuning and Superior Handling Response:
In vehicle dynamics, the speed at which the anti-roll bar engages dictates the crispness of the vehicle’s body control. Traditional sliding or even clamped bushings always exhibit a tiny degree of "dead zone" or micro-slip at the very beginning of articulation, causing a micro-delay in force transfer.
Conversely, a secondary vulcanized bushing relies purely on elastic deformation. The absolute millisecond the stabilizer bar rotates, the bonded rubber twists, generating a perfectly linear torsional counter-torque (Torsional Rate). This zero-latency energy transfer grants chassis engineers massive freedom to tune the suspension, resulting in exceptionally crisp, predictable body control during high-speed lane changes.
3. Automated Secondary Vulcanization at GJBUSH:
While this technology offers overwhelming performance advantages, it demands massive capital investment in heavy-asset manufacturing. GJBUSH has leveraged our internal equipment R&D capabilities to build custom secondary vulcanization matrices for our Tier-1 clients. The steel stabilizer bars are run through our fully automated shot-blasting and phosphating lines before robotic arms apply precision layers of Chemlok or Cilbond adhesives. The bars are then placed into split-cavity heating molds. Using high-precision temperature and pressure controls, we trigger the secondary cross-linking reaction. When the finished assemblies are subjected to destructive axial push-out tests on our 100KN/200KN Electronic Tensile Machines, the results are undeniable: the rubber body tears to shreds, but the chemical bond at the metal interface remains completely impenetrable.
5. What Are the OEM Testing Standards for Anti-Roll Bar Bushings? High-Temperature Mud Testing and 400T Injection Control
For global automotive brands and agricultural machinery titans, a single successful prototype is meaningless. They demand that the one-millionth product off the line possesses the exact same elite fatigue and NVH metrics as the very first. Bridging the gap from R&D to mass production requires a deeply integrated digital error-proofing system and a massive, automated hardware infrastructure.
Validating OEM-grade stabilizer bushings requires brutal physical bench testing and MES digital oversight. From simulating high-temperature summer mud environments to locking in real-time processing parameters across 200+ machines, executing closed-loop heavy manufacturing is the only way to guarantee zero-defect mass production.
OEM Testing Standards and MES Digital Mass Production Control
Industry 4.0 Quality Control and Full-Lifecycle Error Proofing
Without ironclad process control, the most advanced engineering designs will inevitably collapse on the factory floor.
1. DVP Extreme Condition Torture Testing:
To meet the stringent Design Verification Plans (DVP) of top-tier OEMs, the GJBUSH NVH testing center operates a comprehensive interrogation matrix. We do not just monitor the rheological baselines of our compounds using Mooney Viscometers and Rheometers; we simulate the exact hell the part will face in the real world. Prototype bushings are locked inside our Salt Spray Test Chambers and High-Temperature Aging Chambers for hundreds of hours of humid, corrosive torture. Immediately afterward, they are mounted to our Tri-Channel Fatigue Testing Platforms and pounded with synchronized X/Y/Z multi-axial dynamic loads. This psychotic level of testing ensures that whether the vehicle is operating in the scorching heat of the American Southwest or the monsoon mud of Southeast Asia, GJBUSH bushings will maintain absolute NVH silence without a hint of cracking or debonding.
2. Post-Processing Mastery and MES Digital Binding:
While stabilizer bars utilize secondary vulcanization, GJBUSH manufactures the entire ecosystem of chassis suspension links. For control arm bushings, we mandate the industry-leading "Swaging" (Pre-compression) process. By using massive hydraulic dies to crush the outer metal sleeve, we entirely reverse the lethal residual tensile stresses formed during cooling, rocketing the dynamic fatigue life by an additional 50%.
Crucially, every single one of these heavy-asset processes is governed by our factory-wide Manufacturing Execution System (MES). From the micron-level dimensional feedback of our CNC flexible machining centers to the precise adhesive thickness applied by the robotic coaters; from the exact T90 curing curve recorded every second on our 400T injection presses to the final torque data—every critical parameter is converted into a digital barcode and permanently bound to that specific part. If a single variable drifts out of the OEM tolerance band, the MES instantly locks down the machine. This profound integration of Industry 4.0 digital oversight with heavy physical manufacturing is the ultimate reason GJBUSH can confidently guarantee zero-defect delivery at scales of tens of millions.
Conclusion: Co-Developing NVH Anti-Roll Bar Durability and Driving Dynamics
Resolving summer NVH squeaks in automotive stabilizer bar bushings is never as simple as swapping in an aftermarket replacement. From the rapid wear of early pure rubber and Teflon sliding designs, to the extreme shear stresses of clamp-style fits, to the ultimate zero-slip performance of secondary vulcanization bonding—the evolution of chassis NVH technology is a brutal intersection of polymer science, interfacial chemistry, and heavy-asset precision manufacturing. In this high-stakes engineering arena, relying on advanced 400T injection molding, rigorous CAE stress modeling, and extreme mud/fatigue torture testing is the only way to build an impenetrable barrier against chassis noise.
As a foundational manufacturing pioneer with over 40 years of R&D heritage and an annual capacity in the tens of millions, GJBUSH operates relentlessly on the core value of "Creating Value for Customers." If you are engineering a next-generation vehicle platform that demands absolute silence in extreme temperature and mud conditions, or if you are currently battling warranty claims due to squeaking or delaminating stabilizer bushings, submit your 3D CAD models and DVP testing parameters to our engineering team today. GJBUSH will leverage our world-class CAE co-development capabilities and our elite secondary vulcanization mass production matrix to become your most trusted, strategic global partner!
Author Bio:
Scarlett is an Automotive NVH Engineering Strategist at GJBUSH with 14 years of chassis R&D experience. Working closely with manufacturing partners, she documents advanced rubber-to-metal bonding techniques, CAE simulations, and testing insights to assist global Tier-1 suppliers and OEMs in co-development.
