For automotive enthusiasts upgrading to a high-performance system like the Borla S-Type, the dilemma is always the same: how to secure the exhaust tips against "bouncing" on rocky roads without turning the cabin into a resonance chamber. The common aftermarket advice suggests a binary choice—stick with soft OEM rubber and accept the sway, or switch to rigid Polyurethane and suffer the vibration. For Purchasing Managers and R&D Engineers, however, the solution lies in a third option: precision-engineered rubber formulations.
The optimal solution for controlling exhaust movement while maintaining NVH isolation is not changing the material family to plastic, but tuning the cross-linking density of the rubber. Peroxide-cured EPDM with a Shore A hardness of 70-80 provides the necessary lateral stability to prevent swaying, effectively mimicking the stiffness of polyurethane without sacrificing the damping coefficient required to absorb high-frequency engine harmonics. This offers the durability of an aftermarket upgrade with the refinement of an OEM component.
EPDM Hardness Testing
While forums often debate "Rubber vs. Poly," the real engineering challenge is managing the trade-off between position control and transmissibility. Let’s analyze why high-durometer rubber is the superior engineering choice for daily-driven performance vehicles.
The Engineering Trade-Off: Displacement Control vs. Vibration Isolation
When a vehicle traverses uneven terrain—like the rocky country roads mentioned in user discussions—the exhaust system acts as a heavy pendulum. Standard OEM hangers prioritize isolation, using softer compounds to ensure zero vibration reaches the chassis. However, when you increase the pipe diameter or drive aggressively, this softness results in excessive displacement.
To solve this, the aftermarket often turns to Polyurethane. While "Poly" is excellent for static positioning, it fails in one critical metric: Transmissibility. In vibration engineering, transmissibility is the ratio of the force transmitted to the chassis versus the input force from the engine. Polyurethane acts almost as a solid link, transmitting nearly 100% of the high-frequency vibrations (NVH) from the exhaust piping directly into the cabin.
Vibration Transmissibility Graph
Dive Deeper: The Physics of "Sway" and Dynamic Stiffness
To understand why standard hangers fail on rocky roads, we must look beyond simple tensile strength and examine Dynamic Stiffness. This is the material’s resistance to deformation under a dynamic load. A standard OEM hanger typically uses a sulfur-cured Natural Rubber (NR) or low-grade EPDM with a Shore A hardness of roughly 50-55. This provides excellent comfort but lacks the lateral stiffness to resist the side-to-side G-forces experienced on rough terrain or during cornering.
The sensation of "bouncing" or "swaying" describes a system with a low Natural Frequency. When the excitation frequency (the road bumps or engine RPM) matches this low natural frequency, the exhaust system enters resonance, swinging violently. This can lead to the exhaust tips hitting the bumper cutout or, in severe cases, fatigue failure of the metal flanges.
At GJBUSH, we address this not by abandoning rubber, but by engineering High-Durometer EPDM. By increasing the carbon black loading and optimizing the cure package, we raise the Dynamic Stiffness of the hanger. This shifts the system’s natural frequency higher, away from the excitation frequencies of road bumps. The result is a hanger that feels "tight" like Polyurethane but retains the viscoelastic properties of rubber, allowing it to dissipate energy as heat rather than transmitting it as noise. This balance is critical for OEMs who cannot accept the warranty claims associated with melted bumpers (from sway) or customer complaints about cabin drone (from rigid mounts).
Material Science: Why High-Durometer EPDM Beats Polyurethane
Many enthusiasts believe Polyurethane is an "upgrade" simply because it is stiffer. However, stiffness without damping is a liability in automotive engineering. The goal is to maximize the Loss Factor (Tan Delta), which measures a material’s ability to dampen vibration.
The ideal exhaust hanger must act as a filter: it must be stiff enough to handle low-frequency, high-amplitude inputs (road bumps, cornering forces) but soft enough to block high-frequency, low-amplitude inputs (engine buzz, exhaust resonance).
Dive Deeper: Validation Strategy and Video Analysis

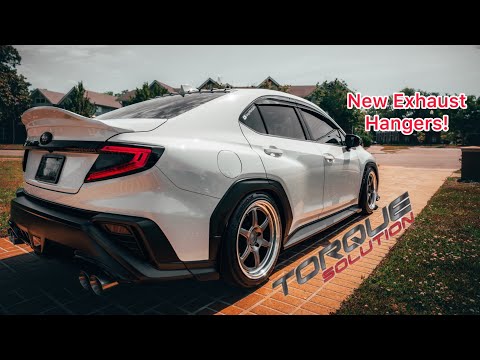

I recently analyzed a test video that perfectly illustrates the failure mode of standard rubber hangers on a Subaru WRX platform. The visual evidence below highlights exactly why purchasing managers need to look beyond standard OEM specs for performance applications.
In this video (specifically around the 0:50 mark), you can see the stock rubber hangers allowing the exhaust to oscillate wildly—the "floppy" behavior that concerns users driving on uneven surfaces. The material is clearly too compliant; it stretches significantly under the weight of the exhaust, leading to potential contact with the chassis. The aftermarket solution shown is a rigid mount. While it stops the movement, it introduces a new problem: harshness.
The GJBUSH Technical Solution (Option A):
Our approach to solving this "floppy" exhaust problem uses Peroxide-Cured EPDM formulated to Shore A 75±5.
- Damping Coefficient: unlike Polyurethane, which has a very low hysteresis (it springs back instantly, transmitting energy), our EPDM formulation has a tuned hysteresis loop. It absorbs the vibrational energy.
- Tunable Hardness: We achieve the requisite stiffness (Shore A 75) to prevent the "pendulum effect" seen in the video. This locks the exhaust tip position relative to the bumper, just like the rigid aftermarket part.
- Molecular Stability: By using a peroxide cure system instead of sulfur, we create carbon-carbon bonds between the polymer chains. This results in a material that maintains its stiffness curve even after millions of cycles.
For an OEM, this translates to Supply Chain Security. You are not relying on boutique polyurethane casting shops. You are utilizing a scalable, injection-molded rubber process that delivers the performance of a racing part with the reliability and cost-efficiency of a mass-produced component.
Thermal Endurance: The Hidden Failure Mode
The final, and often overlooked, factor in exhaust hanger selection is heat. The exhaust piping near the catalytic converter or mufflers can easily exceed 150°C (300°F).
Polyurethane is a thermoplastic. At high temperatures, it softens significantly. More importantly, it suffers from Creep—the tendency of a solid material to move slowly or deform permanently under the influence of mechanical stresses. Over time, a hot polyurethane hanger will elongate, causing the exhaust to sag permanently.
Thermal Imaging of Exhaust
Dive Deeper: Compression Set and Heat Aging
In the GJBUSH laboratory, we test according to ASTM D395 Method B to measure Compression Set. This test compresses the material at elevated temperatures for a set period and measures how much it recovers its original shape.
- Polyurethane: Often exhibits high compression set at temperatures above 100°C. If the exhaust hangs heavy and hot, the hanger stretches and never bounces back.
- Standard Sulfur-Cured Natural Rubber: Can harden and crack due to heat aging (oxidative degradation).
- GJBUSH Peroxide-Cured EPDM: This is the industry leader for heat resistance. EPDM (Ethylene Propylene Diene Monomer) has a saturated backbone, making it inherently resistant to heat, ozone, and weather.
The "Peroxide Cure" is the secret weapon here. Sulfur vulcanization bridges are thermally unstable and can break down, leading to reversion (softening) or hardening. Peroxide cross-links are thermally stable C-C bonds. This means a GJBUSH hanger installed today will maintain the same ride height and stiffness five years from now, even after repeated heat cycles on those rocky country roads.
For OEMs, this reduces Warranty Costs significantly. You avoid the "sagging exhaust" complaints that typically occur 2-3 years into ownership, ensuring the vehicle’s rear profile looks as precise as it did on the showroom floor.
Conclusion
For drivers like Lucy’s customer, the goal is simple: an exhaust that stays high and tight without vibrating the teeth out of their passengers. For the engineer, the solution is nuanced. It requires moving beyond the "Rubber vs. Poly" dichotomy and embracing advanced material science. By utilizing High-Durometer, Peroxide-Cured EPDM, GJBUSH delivers a component that offers the positional security of a race part with the longevity and NVH refinement of an OEM standard.
Ready to optimize your exhaust isolation system?
Don’t settle for off-the-shelf softness or aftermarket harshness. Contact our engineers today for a custom sample review, and let us formulate a specific Shore A hardness to match your exhaust system’s weight and frequency profile.
