For OEMs and Parts Managers, distinguishing between radius arms and control arms is more than a vocabulary exercise—it is about understanding suspension geometry and failure points. While both components link the wheels to the chassis, misidentifying their specific load-bearing requirements often leads to improper bushing selection and premature warranty claims，This article will tell you the key differences and functions between radius arm vs control arm.
A Control Arm primarily manages lateral (side-to-side) forces to control wheel camber, whereas a Radius Arm manages longitudinal (front-to-back) forces to locate the axle during braking and acceleration.
Suspension Geometry Inspection
While the visual difference is often obvious—A-shape vs. straight rod—the real engineering challenge lies inside the rubber-to-metal bonded bushings. Let’s dissect the specific functions and manufacturing requirements for each.
1. What Is a Control Arm and What Does It Do?
Control arms (often called A-arms or Wishbones) act as the primary hinge for the suspension system, connecting the steering knuckle to the vehicle frame. They are responsible for synchronizing the wheels with the vehicle’s body motion.
The critical job of a control arm is to resist lateral loads during cornering while allowing vertical movement for bump absorption, effectively dictating the wheel’s camber angle.
Control Arm Bushing Stress
Dive Deeper: The NVH Challenge and Stiffness Tuning
Understanding the control arm requires looking at what happens when it fails. I recently analyzed a diagnostic video that perfectly illustrates the consequences of poor bushing design in control arms:
In this video, you can see the excessive "play" and hear the clunking noise generated when a control arm bushing loses its stiffness. This happens because control arms are subjected to complex, multi-directional forces. They must be stiff enough laterally to maintain handling precision (cornering) but compliant enough vertically to absorb road noise.
At GJBUSH, we solve this contradiction through Stiffness Curve Tuning. Unlike generic manufacturers who use a solid block of rubber, we utilize anisotropic void designs (calculated cavities in the rubber). By engineering the shape and orientation of these voids during the mold design phase, we can decouple the stiffness rates:
- Radial Stiffness (High): To prevent the "play" seen in the video during cornering.
- Torsional Stiffness (Low): To allow the arm to swing up and down smoothly without tearing the rubber.
This precision is impossible with standard "off-the-shelf" molds. It requires R&D simulation to match the specific NVH (Noise, Vibration, and Harshness) requirements of the vehicle platform.
2. What Is a Radius Arm Then?
If the control arm handles the "side-to-side," the radius arm handles the "front-to-back." Typically found on trucks (like the Ford F-Series) or solid-axle SUVs, a radius arm is a heavy steel rod that extends longitudinally from the axle to the chassis.
A Radius Arm is a suspension link intended to control wheel motion in the longitudinal direction, preventing the axle from rotating or shifting backward under heavy loads.
Radius Arm Geometry
Because it runs parallel to the vehicle frame, it is the primary component resisting the forces generated when the wheels hit a bump or when the brakes are applied.
3. What Is the Specific Function of a Radius Arm?
The radius arm effectively locates the axle, ensuring it tracks straight. Without it, the axle would twist violently under its own power. Its most critical function, however, occurs during deceleration.
The radius arm absorbs the immense braking torque that attempts to rotate the axle housing, serving as a critical anti-dive mechanism to stabilize the chassis.
Radius Arm Bushing Replacement
Dive Deeper: Combating Shear Force with Phosphating & Chemlok
The forces acting on a radius arm are vastly different from a control arm. When a heavy truck brakes, the radius arm acts as a giant lever, transferring massive torque directly into the bushing. This creates extreme shear stress at the metal-rubber interface.

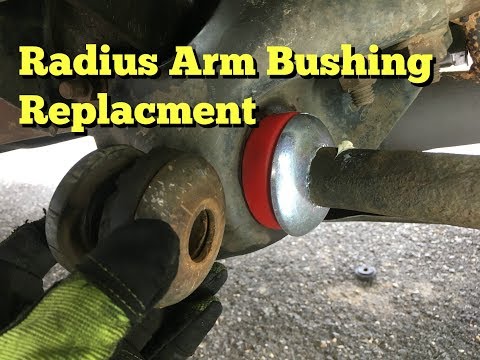

Observe the scale of the radius arm in this repair video of a Ford F150:
The technician has to wrestle with the component because of its size and the forces it holds. In inferior aftermarket parts, this shear force leads to Debonding—where the rubber cleanly separates from the metal sleeve. This is a catastrophic failure mode.
At GJBUSH, we prevent this via a strict Phosphating and Double-Coat Adhesive Process:
- Phosphating: We do not rely solely on sandblasting. We use a chemical phosphating bath to create a crystalline structure on the metal surface, increasing the surface area for bonding at a microscopic level.
- Chemlok Application: We apply two distinct layers—a primer to bond with the metal and a cover coat to bond with the rubber.
This process ensures that the Bonding Strength exceeds the Tear Strength of the rubber itself. In destructive testing, the rubber should tear apart before it peels off the metal. If a radius arm bushing peels clean, it is a manufacturing defect; if it tears, it has reached its material limit. Our process ensures the latter, guaranteeing safety under heavy braking loads.
4. Radius Arm vs Control Arm: What Are the Key Differences?
While both are suspension links, their roles in vehicle dynamics dictate completely different manufacturing approaches.
The main difference is directional load management: Control Arms manage lateral alignment (Camber/Toe), while Radius Arms manage longitudinal alignment (Caster/Axle position).
Dive Deeper: The Common Enemy – Material Fatigue
Despite their structural differences, both Control Arms and Radius Arms face a common enemy: Heat and Fatigue. Suspension components operate in a harsh environment, exposed to road salt, oil, and temperatures ranging from -40°C to +120°C (near engine/brakes).
Many low-cost competitors reduce costs by using "Recycled Rubber" (reclaimed material) mixed with standard EPDM or NBR. While this looks the same visually, recycled rubber has short polymer chains, leading to poor fatigue resistance and rapid hardening (aging).
The GJBUSH Material Advantage:
For both Radius and Control arm bushings, we utilize a High-Content Natural Rubber (NR) formula tailored for vibration isolation.
- Hysteresis Loss: Our NR formula is optimized for low heat generation. Continuous flexing generates internal heat; if the rubber cannot dissipate this, it becomes brittle.
- Vulcanization Consistency: We control the curing temperature within ±2°C. Over-curing makes the arm brittle; under-curing leaves it soft and prone to permanent deformation (Set).
By strictly using high-grade NR rather than recycled fillers, we ensure that both the intricate void design of the Control Arm and the heavy-duty bonding of the Radius Arm survive the 2-million-cycle fatigue benchmark required by Tier 1 OEMs.
Conclusion
Understanding the difference between a Radius Arm and a Control Arm allows for better sourcing decisions. The Control Arm demands precision in Stiffness Tuning for handling, while the Radius Arm demands superior Bonding Strength to resist braking torque.
At GJBUSH, we don’t just mold rubber; we engineer the chemical and mechanical bonds that keep these critical components secure. Whether you need the nuanced NVH performance of a control arm or the brute strength of a radius arm, our factory is equipped to deliver OEM-grade reliability.
