For OEMs and Purchasing Managers, a transmission mount is often viewed as a "Class C" hardware component. However, this seemingly simple rubber-metal bonded part is the critical gatekeeper between a vehicle’s powertrain and its chassis. Neglecting the quality of these mounts does not just result in customer complaints about vibration; it leads to catastrophic failures in the transmission assembly itself, driving up warranty costs and damaging brand reputation.
transmission mounts serves two critical engineering functions: it secures the transmission to the chassis to maintain drivetrain alignment under torque load, and it acts as a tuned damper to isolate high-frequency engine harmonics and road inputs.
Transmission Mount Structure
When a mount fails, it is rarely an isolated event. It triggers a chain reaction of mechanical stresses that travel down the driveshaft, affecting CV joints, differentials, and internal gearbox components. At GJBUSH, we engineer our mounts not just to hold weight, but to survive the rigorous duty cycles defined in modern automotive R&D standards.
What Do Transmission Mounts Actually Do? (The Engineering Perspective)
While the basic function is "holding the transmission," the engineering reality is far more complex. The mount must act as a precise filter for kinetic energy.
The transmission mount is designed to manage the "Roll Axis" of the powertrain, restricting movement during peak torque delivery while allowing enough compliance to absorb idle vibration.
Powertrain Torque Management
Vibration Isolation and Frequency Tuning
Every engine and transmission combination has a specific resonant frequency. If the rubber compound in the mount (typically Natural Rubber or a blend of NR/BR for fatigue resistance) is not tuned correctly, the mount’s natural frequency may overlap with the engine’s firing frequency.
- Idle Isolation: At low RPMs, the mount must be soft enough (low dynamic stiffness) to prevent the cabin from acting as a resonance chamber.
- Load Control: Under high torque (acceleration), the mount must stiffen to prevent the engine from physically twisting too far, which would strain the shift linkage and coolant hoses.
At GJBUSH, we utilize Finite Element Analysis (FEA) to predict these behaviors before the first mold is even cut.
Signs of Worn Transmission Mounts: Beyond Just Noise
Recognizing the signs of failure early is critical for R&D engineers validating a new platform or fleet managers maintaining service life.
The most definitive sign of a compromised transmission mount is "Drivetrain Shock"—a palpable clunk or lurch when shifting from Park to Drive or during aggressive acceleration.
Cracked Rubber Mount
1. Structure-Borne Noise Transfer
When the rubber element collapses or tears (known as "metal-to-metal contact"), the isolation barrier is breached. The transmission housing vibrates directly against the subframe. This manifests not just as noise, but as a high-frequency buzz felt in the steering wheel and floor pans.
2. Dynamic Misalignment
If a mount loses its tensile strength or shears completely, the transmission sits at an incorrect angle. This misalignment forces the input and output shafts to operate off-center, creating excessive friction in the universal joints and putting shear stress on the output seals.
The Role of Transmission Mounts in Longevity and Performance
This is where the difference between a generic aftermarket part and an OEM-grade component becomes clear. A transmission mount is a safety-critical component for the longevity of the entire gearbox assembly.
A failing mount allows excessive engine movement that mimics the effects of a collision, causing internal gearbox components like synchronizers and differentials to wear prematurely.
Dive Deeper: The Correlation Between Mount Stiffness and Gearbox Survival
At GJBUSH, we understand that a mount is not a standalone part; it is an integral variable in the Transmission Assembly Durability Test. Based on our experience supplying Tier 1 clients, a transmission must undergo rigorous testing steps including:
- Compliance Check: Ensuring all attachments are secure.
- Manual Shift Logic: Verifying robotic arm actuation.
- Durability Cycles: Forward, Reverse, and Differential fatigue tests.
If the transmission mount allows too much deflection during these tests, the internal components suffer. Specifically, we have seen that poor mount stiffness leads to "Tooth Surface Bonding" (Gear Scuffing) and "Pitting" on the gears. This happens because the shock loads are not dampened, causing the gear teeth to hammer against each other rather than mesh smoothly. Furthermore, excessive movement can cause "Seal Defects", leading to oil leaks which disqualify the unit during the post-test Teardown Inspection.
To prevent this, GJBUSH validates the rubber component’s life before it is installed on the transmission.
I recently analyzed a test video that perfectly illustrates this validation process:

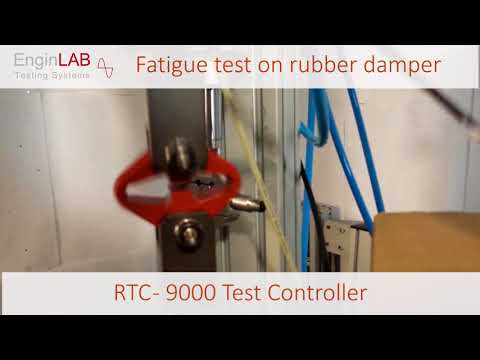

In this video, you can see a servo-hydraulic fatigue testing rig pushing a rubber damper to its limits. The machine applies high-frequency cyclic loads, simulating years of road abuse in a matter of days.
- Why this matters: We use similar protocols at GJBUSH. Before we ship mounts for your "Forward Gear Durability Test," our rubber formulations undergo millions of cycles on a test bench like this.
- The GJBUSH Standard: We verify that the Dynamic Stiffness remains stable and that no cracks initiate in the bonding layer.
- The Result: When you perform your final Teardown Inspection, you will find the Bolt Torque remains within spec and the movement components show no deformation or tearing, because our mount successfully absorbed the destructive energy. This rigorous pre-validation is how we help OEMs reduce warranty claims related to transmission failures.
How Worn Transmission Mounts Affect Your Vehicle’s Performance
The impact of a worn mount extends to the driving dynamics and efficiency of the vehicle.
Worn mounts result in "Parasitic Power Loss," where torque energy meant for the wheels is wasted shaking the heavy powertrain assembly.
Parasitic Power Loss Diagram
Compromised Cornering and Braking
The engine and transmission are the heaviest components in a vehicle. If they are loose, their shifting weight acts as a pendulum during cornering. This weight transfer destabilizes the chassis, making handling unpredictable. Under heavy braking, the powertrain may lurch forward, putting uneven stress on the front suspension bushings.
Stress on Ancillary Components
The excessive movement pulls on wiring harnesses, coolant hoses, and exhaust linkages. A common secondary failure mode of a bad transmission mount is a cracked exhaust manifold or a broken radiator neck, caused simply by the engine moving further than the hoses allow.
When Should You Replace Transmission Mounts?
For OEMs establishing maintenance schedules, or Fleet Managers planning overhauls, the replacement interval is crucial.
Transmission mounts should be inspected during every major drivetrain service and replaced immediately if surface cracking exceeds 2mm or if any delamination is visible.
While rubber naturally degrades due to heat cycles and ozone exposure (a process called oxidation), GJBUSH uses additives in our EPDM and NR compounds to extend this life. However, typically:
- Severe Service (Towing/Off-road): Inspect every 30,000 miles.
- Standard Duty: Inspect every 60,000 miles.
The goal is Predictive Maintenance. Replacing the mount before it fails protects the expensive transmission gears and differentials from the damage described in our durability testing section.
Conclusion
A transmission mount is not just a block of rubber; it is a precisely engineered component that protects the vehicle’s most expensive mechanical systems. At GJBUSH, we combine advanced material science with rigorous fatigue testing—mirroring the OEM assembly test standards—to ensure our mounts prevent gear pitting, seal failure, and NVH issues.
Are you experiencing high warranty rates on drivetrain components? Would you like GJBUSH to perform a fatigue analysis on your current mounting solution?
