In the automotive manufacturing sector, a suspension system is often reduced to a discussion of geometry—MacPherson versus Multi-Link. However, for OEMs and Purchasing Managers, the real challenge lies in the "soft points": the rubber-to-metal bonded components that dictate the system’s longevity. A suspension design is only as capable as the bushings and mounts that isolate it.
A Vehicle Suspension System is the complex network of springs, shock absorbers, and linkages that connects a vehicle to its wheels. Its primary engineering function is to maximize friction between the tires and the road surface while isolating the chassis from impact energy through controlled damping.
Vehicle Suspension System Overview
For seasoned automotive engineers, the suspension is not just about motion control; it is an energy management system. Every bump transfers kinetic energy that must be absorbed (by springs) or dissipated (by dampers and rubber bushings). If the rubber formulation within a control arm bushing is mismatched to the suspension geometry, the result is not just poor ride quality—it is critical component failure and costly warranty claims.
The Core Functions of a Suspension System
At GJBUSH, we view suspension systems through the lens of material science. While the steel arms define the motion path, the rubber components define the feel and durability.
The three critical deliverables of any suspension architecture are:
- Supporting Vertical Load: The system must carry the vehicle’s sprung mass.
- Absorbing Road Shock: Converting kinetic energy into heat (hysteresis) to protect the chassis.
- Maintaining Wheel Alignment: Resisting lateral and longitudinal forces during cornering and braking.
Vibration Isolation and Damping
The "Hidden" variable here is the Damping Coefficient of the rubber mounts. A stiff chassis requires softer mounts to prevent vibration transfer, but a performance suspension requires stiffer mounts for precise handling. Balancing this trade-off is where advanced rubber manufacturing comes into play.
Common Suspension Types & Their Rubber Challenges
Different suspension geometries impose radically different stress vectors on their rubber components. A "one-size-fits-all" bushing design is a guaranteed recipe for field failure.
1. MacPherson Strut Suspension
This is the most common independent suspension system, particularly for front axles in passenger cars. It uses the top of a telescopic damper as the upper steering pivot.
Challenge: Because the strut serves as a structural member, the Lower Control Arm (LCA) Bushing is subjected to immense lateral shear forces during cornering.

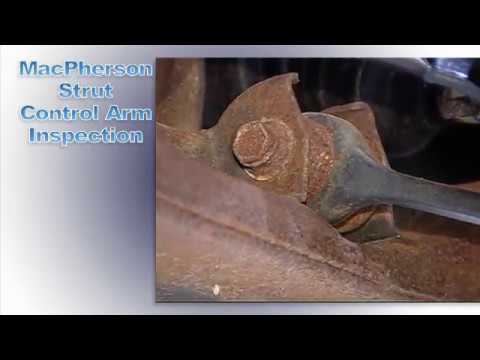

I recently analyzed a failure mode in a standard MacPherson setup. In a training video by Hunter Engineering, technicians inspect a worn control arm bushing. You can see how the rubber has detached from the metal sleeve due to excessive lateral movement. This "walk" allows the wheel alignment to shift dynamically, causing rapid tire wear and steering instability.
The GJBUSH Solution: For MacPherson applications, we do not simply use standard rubber. We increase the Shear Modulus of the compound specifically for the LCA position. By optimizing the cross-link density during vulcanization, we create a bushing that is radially stiff (to hold alignment) but axially compliant (to absorb road noise), preventing the detachment seen in the video.
2. Multi-Link Suspension
Common in premium vehicles and SUVs, this system uses three or more lateral arms and one or more longitudinal arms.
Challenge: The complexity implies that each arm manages a specific force vector. The bushings here require "Anisotropic Stiffness"—meaning they must be soft in one direction (for comfort) and extremely rigid in another (for handling). Standard molding processes often fail to achieve this directional variance.
Multi-Link Suspension Bushing
3. Leaf Spring & Torsion Beam
Found in heavy-duty trucks (Leaf) and economy compacts (Torsion Beam). These rely on beam deformation.
Challenge: The Spring Eye Bushings in leaf springs endure massive torsional twisting. If the rubber’s Elongation at Break is insufficient, the rubber will tear internally after repeated articulation cycles.
The "Hidden" Suspension: Transmission & Powertrain Mounts
When discussing suspension types, many Procurement Officers overlook the Transmission Vehicle Suspension System. However, the engine and transmission constitute the heaviest suspended mass in the vehicle.
If the Transmission Mounts are too stiff, they transmit gear whine and combustion vibration to the cabin (NVH failure). If they are too soft, the powertrain mass shifts violently during acceleration, compromising the handling of the main chassis suspension.
System Synergy:
The key is Frequency Separation. The natural frequency of the Transmission Mounts[^3] must be tuned (typically 7-12 Hz) to avoid resonance with the chassis suspension (typically 1-2 Hz) and the engine idling frequency (20+ Hz). At GJBUSH, we use CAE simulation to design hydraulic transmission mounts (Hydro-mounts) that actively dampen these specific frequencies, treating the powertrain as an integral part of the vehicle’s dynamic stability.
Transmission Mount Internal Structure
Dive Deeper: Customizing Rubber Formulations for Suspension Geometry
Why does a bushing that works on a Ford MacPherson strut fail on a Tesla Multi-Link system? The answer lies in the molecular engineering of the rubber compound.
At GJBUSH, we reject the industry habit of using generic "Natural Rubber" for all applications. We operate on the Option A Hypothesis: The rubber formulation must be chemically customized to the specific geometric stress vectors of the suspension type.
The Science of formulation
For high-stress suspension points, we often employ a blend of Natural Rubber (NR) and Butadiene Rubber (BR).
- NR (Natural Rubber): Selected for its low heat generation (hysteresis loss) and high tensile strength. This is crucial for mounts that undergo high-frequency vibration.
- BR (Butadiene Rubber): Added to improve abrasion resistance and low-temperature flexibility.
However, the "Magic" is in the Curing Package. We utilize a semi-EV (Effective Vulcanization) sulfur curing system. This creates shorter, more stable mono-sulfidic cross-links between polymer chains. The result is a material that resists "Creep" (permanent deformation under load) far better than standard polysulfidic cures used by budget manufacturers.
Validation: The Video Evidence
Theory is useless without verification. To ensure our customized formulations can survive the specific vectors of a Multi-Link or MacPherson setup, we subject them to rigorous multi-axial fatigue testing.
I want to call your attention to a test process similar to the one shown in this MTS Bushing Test System video. Watch how the machine applies force not just in one direction, but radially, axially, and torsionally simultaneously.
At the GJBUSH NVH Lab, we replicate this intensity. We run durability tests exceeding 300,000 cycles at frequencies ranging from 1Hz to 50Hz. We monitor the Dynamic Stiffness change throughout the test. If the stiffness drops by more than 10%, the batch is rejected. This ensures that when an OEM installs a GJBUSH component, the "New Car Feel" lasts for years, not months.
B2B Value for OEMs
By customizing the formulation to the geometry:
- Warranty Reduction: We eliminate the "early onset cracking" common in generic bushings.
- Supply Chain Security: Our in-house mixing ensures batch-to-batch consistency, critical for IATF 16949 compliance.
Conclusion
Understanding Vehicle Suspension System Types is not just about knowing the difference between a spring and a strut. It is about understanding how these systems transfer energy through their rubber connection points.
Whether you are designing a complex Multi-Link system for an EV or a rugged Leaf Spring setup for a truck, the reliability of the system hinges on the quality of the Rubber-to-Metal bonding. At GJBUSH, we combine 27 years of manufacturing experience with advanced material science to deliver solutions that survive the real world.
