For OEMs and fleet managers, the steering system is only as reliable as its weakest link. While often overlooked, the tie rods is the critical interface between the steering rack and the steering knuckle. It is not merely a connector; it is a precision component that must transmit tensile and compressive forces while accommodating complex suspension articulation.
A tie rod is a steering component that connects the steering rack to the steering knuckle on each front wheel. It transmits the force from the steering center link or rack gear to the steering knuckle, causing the wheels to turn. It consists of an inner tie rod (connected to the steering gear) and an outer tie rod end (connected to the wheel assembly).
Tie Rod Assembly Overview
Understanding the manufacturing nuances of these parts—specifically material selection like 42CrMo steel and Chloroprene rubber—is essential for purchasing managers looking to reduce warranty claims and ensure supply chain security.
What are tie rod ends?
The terminology often confuses procurement teams sourcing for complete assemblies versus service parts. The tie rod assembly is split into two distinct functional sections: the Inner and the Outer.
Tie rod ends (specifically the "Outer" tie rod) are the ball-and-socket joints that connect the tie rod assembly to the vehicle’s steering knuckle. They allow the steering to pivot horizontally while the suspension moves vertically.
Inner vs Outer Tie Rod Differences
At GJBUSH, we have observed a significant shift in OEM requirements toward Aluminum Alloy for the tie rod body. Unlike traditional cast iron, high-grade aluminum alloy reduces unsprung mass (the weight not supported by the suspension). For our clients in the EV sector (like Segway-Ninebot) and modern automotive OEMs, this weight reduction is critical for extending range and improving handling response without sacrificing structural integrity.
How do tie rods work?
The mechanics of a tie rod are deceptively simple but require high-precision engineering to prevent "play" (unwanted movement).
Tie rods work by transmitting the lateral force from the steering rack out to the wheels. As the rack moves left or right, the tie rods push or pull the steering knuckles, changing the angle of the tires. Simultaneously, the ball joints within the rod ends rotate to compensate for the up-and-down motion of the suspension.
When a driver turns the steering wheel, that rotational force is converted into linear motion by the rack and pinion. The tie rod is the rigid arm that delivers this linear motion. However, because the wheel moves up and down over bumps, a rigid bar would snap. This is why the "ball stud" design is crucial—it acts as a pivot point, maintaining the connection regardless of the wheel’s vertical position.
How are tie rods designed?
This is where the difference between a generic aftermarket part and a Tier-1 OEM component becomes visible. The design relies heavily on material science to balance fatigue strength with environmental resistance.
Tie rods are designed using a ball-in-socket architecture. The ball stud is machined from high-strength alloy steel, seated in a polymer or metal bearing, and encapsulated by a rubber dust boot to retain grease.
Tie Rod Internal Design
Dive Deeper: The 42CrMo & CR Advantage
At GJBUSH, we control the manufacturing process from raw material to final assembly. Based on our factory standards, two critical specifications define a high-performance tie rod:
1. The Ball Stud: 42CrMo Alloy Steel
While standard carbon steel (like C45) is cheaper, GJBUSH utilizes 42CrMo (Chromium-Molybdenum) Alloy Steel for the ball stud.
- Why? 42CrMo offers superior hardenability and fatigue resistance. After quenching and tempering, the yield strength is significantly higher than standard steels. This ensures that the stud does not snap under sudden impact loads (like hitting a deep pothole).
2. The Dust Boot: Chloroprene Rubber (CR)
The number one cause of tie rod failure is not metal fatigue, but seal failure. We use CR (Chloroprene Rubber) rather than Natural Rubber (NR).
- Why? The boot is constantly exposed to road grease, oil leaks from the engine, and ozone. NR degrades rapidly when in contact with oil, turning soft and spongy. CR provides excellent resistance to oils and ozone, ensuring the grease stays in and contaminants stay out for the life of the part.
Video Analysis: The Importance of Pull-Out Force
I recently analyzed a destructive test video that demonstrates a Ball Joint Pull-Out Test. In the footage, a hydraulic rig pulls the ball stud vertically away from the housing until failure occurs.
In inferior tie rods, the housing deforms, or the stud snaps prematurely. However, when using 42CrMo, the failure point is pushed to extreme loads—far beyond what a vehicle experiences on the road. At the GJBUSH laboratory, we perform this Static Tensile Test on every batch. We ensure the "Pull-out Force" exceeds OEM requirements, verifying that the ball stud will not separate from the housing even under catastrophic suspension impact. For an OEM, this material choice is the difference between a safe vehicle and a massive safety recall.
What are the signs of a bad tie rod?
Detecting early wear is vital for preventing cascading failures in the suspension system.
Common signs include a loose or vibrating steering wheel, uneven tire wear (often on the inner or outer edges), and a clunking or knocking sound from the front end when turning or going over bumps.

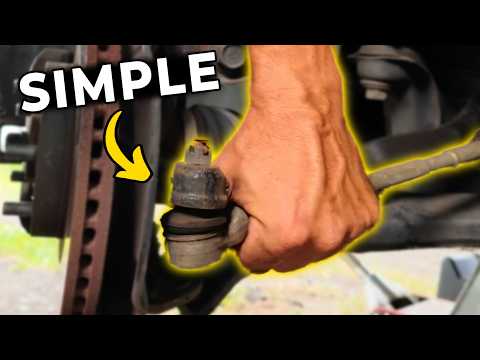

Checking for Wheel Play
The "Clunk" usually indicates that the polymer bearing inside the socket has worn down, creating a gap between the ball stud and the housing. This gap introduces play, destroying steering precision.
How long do tie rods last?
Lifespan is dictated by road conditions and the integrity of the rubber boot.
Tie rods typically last between 80,000 to 100,000 kilometers. However, driving on rough roads, exposure to road salt, or a torn dust boot can significantly shorten this lifespan.
From a manufacturing perspective, the limiting factor is the Grease Retention. Once the boot fails, abrasive road grit enters the joint, acting like sandpaper on the polished 42CrMo ball stud. This is why our focus on CR rubber quality is as high as our focus on steel hardness.
What happens if a tie rod fails?
Failure is not just an inconvenience; it is a critical safety hazard.
If a tie rod fails completely, the connection between the steering wheel and the tire is broken. The wheel will flop independently of the steering, causing an immediate and total loss of vehicle control.
Tie Rod Failure Consequence
For OEMs, a snapped tie rod is a "Class A" safety defect. Ensuring your supplier uses verified 42CrMo steel rather than cheaper substitutes is the only way to mitigate this liability.
Can I drive with a damaged tie rod?
The answer from an engineering standpoint is absolute.
No, you cannot safely drive with a damaged tie rod. A worn tie rod can fail without warning, and even minor wear will cause rapid, expensive damage to tires and other suspension components.
Unsafe to Drive
Continuing to drive creates excessive vibration that can loosen other fasteners and destroy the steering rack itself.
Conclusion
Tie rods are precision safety components that demand high-grade materials. By utilizing 42CrMo Alloy Steel for superior tensile strength and Chloroprene Rubber (CR) for robust sealing, GJBUSH ensures that our tie rods meet the rigorous demands of global OEMs.
Ready to upgrade your steering components? Contact GJBUSH today to discuss our Aluminum Alloy lightweight solutions and rigorous fatigue testing standards.
