For OEM purchasing managers and automotive engineers, the strut mount is often an undervalued component until warranty claims start rising. It serves as the critical interface between the vehicle’s suspension system and the chassis, responsible for insulating noise and ensuring precise steering response.
A strut mount is a suspension pivot point consisting of a rubber insulator bonded to a metal housing. It connects the suspension strut to the vehicle body, filtering out road vibrations while allowing the strut to rotate during steering maneuvers.
Strut Mount Anatomy
While the aftermarket focuses on replacement costs, manufacturers must focus on the engineering behind the part. A high-quality strut mount defines the vehicle’s NVH (Noise, Vibration, and Harshness) character and handling stability. Let’s analyze the engineering standards that separate a premium OEM component from a premature failure.
What is a strut mount?
At GJBUSH, we define a strut mount not just as a part, but as a composite engineering system designed to manage high-frequency loads.
A strut mount acts as a sandwich structure located at the top of the suspension tower. It typically contains a bearing (to allow steering rotation) and a thick rubber bushing (to absorb impact). Its primary function is to decouple the road inputs from the cabin, ensuring that the harsh impact of a pothole is dissipated as heat within the rubber rather than transmitted to the driver’s spine.
Strut Mount Assembly
Dive Deeper: The Science of Bonding (The "GJBUSH Standard")
In mass production, the most common failure mode for strut mounts is not rubber fatigue, but debonding—where the rubber separates from the metal plate. This catastrophic failure leads to immediate loss of damping and metal-on-metal impact.
At GJBUSH, we mitigate this through a specific chemical engineering process known as the Chemlok Bonding System. Many budget manufacturers simply clean the metal and inject rubber, relying on mechanical locking. However, under high shear stress (such as cornering forces), this physical lock fails.
Our process involves three critical steps:
- Shot Blasting (SA 2.5): We bombard the metal surface with steel grit to create a microscopic roughness. This increases the surface area for adhesion.
- Two-Coat Adhesive System: We apply a primer (Chemlok 205) followed by a cover coat (Chemlok 220). The primer bonds to the metal oxides, while the cover coat reacts with the rubber during vulcanization.
- Co-Vulcanization: The rubber is molded and cured simultaneously with the adhesive at 170°C+ temperatures.
This creates a molecular cross-link between the substrate and the elastomer. When we perform destructive testing in our lab, a GJBUSH mount will always exhibit "100% Rubber Tear"—meaning the rubber material itself tears before the bond releases. If your current supplier’s parts show clean metal after failure, their bonding process is insufficient for OEM standards.
How to install strut mounts?
Proper installation is as critical as manufacturing quality; even a perfect component can fail prematurely if pre-loaded incorrectly during assembly.
To install a strut mount, the technician must compress the coil spring, remove the top nut, and replace the mount assembly. Crucially, the final torque specification must only be applied when the suspension is loaded to its natural ride height, ensuring the rubber is in a neutral state.
Torque Specification Application
Dive Deeper: The Physics of Pre-load and Torsional Stress
From an engineering perspective, the installation process dictates the fatigue life of the rubber. A common error in both assembly lines and repair shops is tightening the central nut or mounting bolts while the vehicle is still lifted on the hoist (suspension at full droop).
Why is this fatal to the component? Rubber bushings work best in shear and compression. They are designed to oscillate around a neutral point.
- Scenario A (Incorrect): If torqued at full droop, the rubber is locked in a twisted position. When the car is lowered to the ground, the rubber is immediately twisted further into a "pre-stressed" state just to support the static weight.
- Scenario B (Correct): If torqued at Curb Weight (ride height), the rubber is neutral. It only twists when the wheel moves up or down during driving.
At GJBUSH, we advise our OEM clients to implement "1G Tightening" protocols. If a strut mount is pre-stressed by 20 degrees due to incorrect installation, the Fatigue Life (N) can drop by over 50%. The rubber material reaches its elastic limit much faster, leading to surface cracking and eventual rupture. This is why we provide specific angular torque specifications to our partners to ensure the End-of-Line assembly matches our R&D design intent.
Symptoms Of A Bad Strut Mount
When a strut mount fails, the vehicle communicates the failure through specific auditory and tactile feedback loops.
Drivers will notice clunking noises when driving over bumps, vague or stiff steering response, and visible tire wear anomalies due to alignment shifts. In severe cases, the strut shaft can punch through the mount, damaging the hood.
Damaged Strut Mount Example
Dive Deeper: NVH Spectrum and Material Damping
I recently analyzed a test video that perfectly illustrates the auditory signature of a failed mount. In the footage, you can hear a distinct, hollow "clunk" every time the suspension cycles.
However, at GJBUSH, we look beyond the "clunk." We analyze the NVH (Noise, Vibration, and Harshness) performance. The noise in the video indicates a total loss of dynamic stiffness.
Cheap aftermarket mounts often use recycled rubber or generic EPDM with poor damping characteristics. While they might pass a static durability test, they fail to filter high-frequency road noise (50Hz – 200Hz).
We utilize a High-Damping Natural Rubber (NR) formulation. The key metric here is the Loss Factor (Tan Delta).
- Standard Rubber: Low hysteresis. Acts like a spring, bouncing vibration back to the chassis.
- GJBUSH High-Damping NR: High hysteresis. Converts vibration energy into low-level heat.
By fine-tuning the carbon black content and curing agents, we optimize the Static-to-Dynamic Stiffness Ratio. This ensures the mount is stiff enough for precise steering (low static deflection) but soft enough to absorb road buzz (low dynamic stiffness). This balance is impossible to achieve without precise raw material control.
How Much Does It Cost to Replace a Strut Mount?
For the end-user, the cost is financial; for the OEM, the cost is reputation and supply chain security.
A typical replacement costs between $150 and $300 per side, with parts costing $50-$100 and labor taking up the majority. However, for an OEM, the "cost" of a low-quality batch is measured in massive recall expenses.
Dive Deeper: Total Cost of Ownership & Fatigue Verification
The true cost of a strut mount isn’t the purchase price; it’s the warranty risk. A mount that saves $2.00 in procurement but fails at 30,000 km destroys brand loyalty.

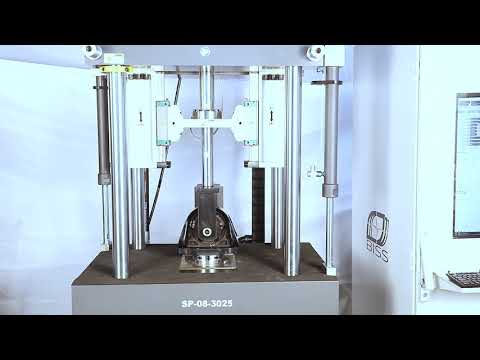

I want to highlight a video demonstrating the rigorous testing required to validate these components. This isn’t just a simple press test; it’s a Multi-Axial Fatigue Test.
At the GJBUSH NVH Lab, we replicate these conditions using MTS servo-hydraulic systems. We don’t just test for ultimate tensile strength; we test for Life Cycle Durability.
- Our Standard: We subject the mounts to a 3-Axis Load Spectrum (Vertical, Lateral, Longitudinal) simultaneously.
- The Cycle: 1,000,000 cycles at frequencies ranging from 1Hz to 50Hz.
- The Criteria: After the test, the Settling Rate (Creep) must be less than 3%, and there must be zero visible cracks >2mm.
Many lower-tier suppliers only perform static compression tests. These parts look identical on the drawing board but will collapse under the complex dynamic loads of real-world driving. By investing in valid fatigue testing, GJBUSH ensures that our clients avoid the exponential costs associated with field failures and recalls.
Conclusion
A strut mount is a complex chemical and mechanical engineering challenge disguised as a simple rubber part. From the Chemlok bonding process to High-Damping NR formulations and rigorous MTS Fatigue Testing, the difference between a 2-year part and a 10-year part lies in the manufacturing details.
GJBUSH combines 27,000 sqm of manufacturing capacity with an SGS IATF 16949 certified quality system to deliver suspension solutions that withstand global road conditions.
Ready to validate your supply chain? Contact our engineering team today for a custom sample review and fatigue test report.
