During the initial R&D phases of suspension architecture, junior engineers frequently question the necessity of chassis bushings: if a control arm’s primary function is to link the knuckle to the subframe, why not simply drill a hole and run a bolt through the metal? If a supplier misspecifies the design or engineering teams calculate press-fit tolerances incorrectly, what catastrophic structural failures await during road trials?
Multi-link suspensions mandate the integration of rubber-to-metal bushings because they simultaneously enable multi-axial kinematic articulation and high-frequency NVH isolation. Eliminating the bushing creates a rigid hard-mount, which rapidly elongates the metal bore under cyclic loads, triggering severe suspension clunking and transmitting unfiltered road harshness directly into the cabin.

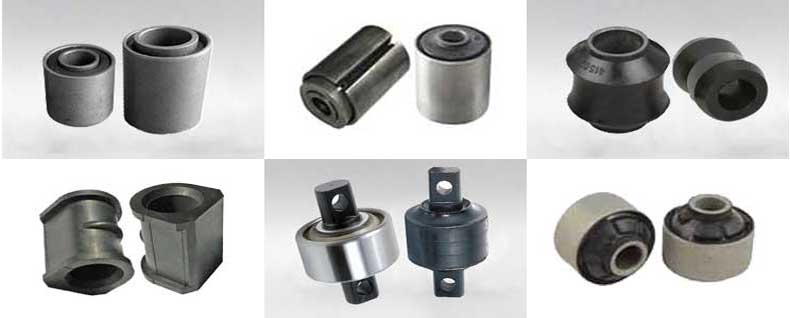

Automotive Chassis Metal Rubber Bushing
Serving as the critical pivoting node governing both dynamic handling and ride quality, the selection, compounding, and tolerance calibration of a rubber-to-metal bushing present severe engineering barriers. Founded in 1998, GJBUSH specializes in elastomeric vibration damping, guided by a founder with over 40 years of Tier-1 development pedigree. Operating under an SGS-certified IATF 16949 quality framework, our facility deploys over 200 precision manufacturing assets—including automated coating lines and massive 400T/800T vacuum injection presses—delivering tens of millions of components annually. Below, we break down the definitive engineering logic behind suspension bushing procurement and calibration.
What Is the Primary Purpose of a Bushing? Why Not Bolt Directly Through the Control Arm?
In standard, low-cycle industrial machinery, engineers routinely utilize direct pin-through-plate structural joints. However, automotive chassis components endure a dramatically more hostile dynamic load environment. Deploying a primitive rigid connection in a suspension system guarantees catastrophic mechanical decay and severe NVH failures within weeks of the vehicle leaving the assembly line.
The primary purpose of a chassis bushing is to act as a sacrificial elastomeric isolator that absorbs dynamic wear and provides flexible kinematic buffering. Direct rigid bolting transfers unfiltered transient shear loads, rapidly tearing the control arm mounting bore out of round and destroying wheel alignment parameters.
Control Arm Rigid Bolting vs Bushing Soft Connection
NVH High-Frequency Isolation and Control Arm Bore Wear Mechanisms
When conducting a Failure Mode and Effects Analysis (FMEA) on a hypothetical suspension devoid of rubber bushings, the immediate failure mode is bore distortion and kinematic slop. When a vehicle undergoes heavy acceleration, panic braking, or impacts a speed bump, the suspension articulation points are subjected to transient shear forces exceeding several tons. The resulting localized stress from metal-on-metal dry friction aggressively exceeds the yield strength of the aluminum or steel control arm. Within thousands of cyclic load transfers, the perfectly round mounting bore stretches into an oval. Once this physical free-play occurs, the vehicle’s camber and toe geometry permanently drift, causing unpredictable high-speed wandering and severe, uneven tire scrubbing.
The secondary critical failure lies in disastrous NVH (Noise, Vibration, and Harshness) transmission. As tires roll across coarse asphalt, they generate continuous high-frequency micro-vibrations ranging from 30 Hz to 200 Hz. Solid metal structures are highly efficient acoustic conductors; a rigid bolted joint acts as a broadband acoustic bridge, transmitting 100% of these high-frequency inputs directly into the body-in-white (BIW). This subjects the cabin occupants to an oppressive, low-frequency booming resonance and harsh mechanical impact noises.
When GJBUSH collaborates with Tier-1 integrators on forward engineering, we do not merely supply a physical component. We initiate front-loaded CAE (Computer-Aided Engineering) finite element analysis to precisely map the force vectors across all degrees of freedom at the mounting node. By vulcanizing a proprietary nano-filler elastomer compound between the inner and outer metal sleeves, we leverage the hysteresis (internal friction) of polymer chains to convert kinetic vibrational energy into trace amounts of dissipated heat. This mechanical decoupling protects highly expensive forged suspension components from impact fatigue while delivering executive-level acoustic refinement.

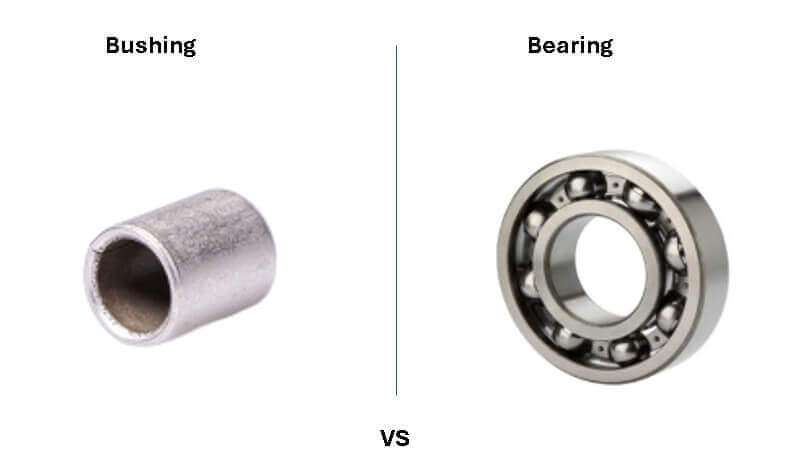

Why Do Suspensions Prefer Rubber Bushings Over Pure Metal Spherical Bearings?
To mitigate bore wear while retaining joint articulation, motorsport engineers and hardcore off-road builders frequently install pure metal spherical bearings (commonly known as Heim joints or uniballs). This raises a valid engineering question: why do global OEMs avoid standardizing these seemingly indestructible solid metal bearings in mass-market passenger and commercial vehicles?
Pure metal spherical bearings excel at low-friction singular rotation but completely lack shock absorption and acoustic isolation capabilities. Rubber-to-metal bushings accommodate axial rotation and torsion while critically providing radial and yaw compliance, effectively absorbing multi-dimensional spatial impacts and blocking road noise.

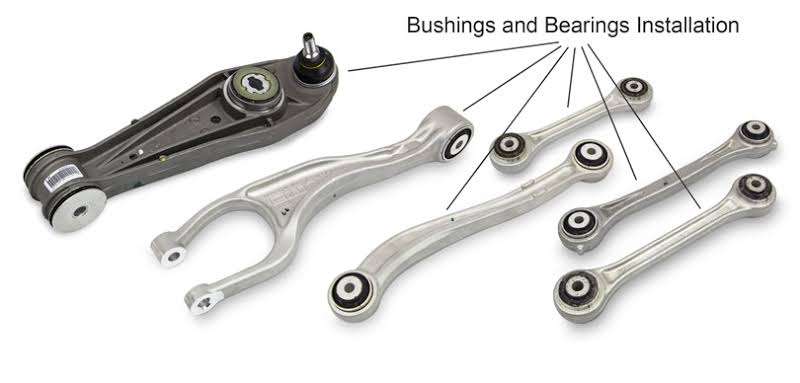

Chassis Rubber Bushing NVH Isolation
The Dynamic Road Test Trade-off Between Metal Heim Joints and Multi-Axial Elastomer Flexibility
Within the motorsport engineering paradigm, the absolute priority is unfiltered tactile feedback and hyper-rigid wheel geometry under extreme track loads; NVH comfort is entirely sacrificed. Solid metal spherical bearings achieve this by eliminating all compliance. However, applying this zero-tolerance architecture to a consumer production vehicle invites severe warranty risks. A metal uniball cannot compress to absorb micro-impacts; the shockwave of running over a simple piece of gravel transfers directly into the steering rack and the driver’s spine.
Furthermore, as a modern multi-link independent suspension cycles through its travel, the kinematic geometry is extraordinarily complex. A control arm does not merely pivot around a single bolt axis; it experiences radial tension and subtle axial yaw/twist within a three-dimensional spatial envelope. A metal spherical bearing is relatively constrained in its degrees of freedom. Forcing it through complex spatial binding creates massive stress concentrations, which can ultimately cause the control arm itself to fracture due to metal fatigue.
Rubber-to-metal bushings represent the optimal engineering compromise for complex multi-axial kinematics. Leveraging GJBUSH’s extensive elastomer material database (S/N and E/N curves), our engineers calibrate precise damping coefficients and directional stiffness ratios based on specific vehicle curb weights and dynamic targets. During aggressive cornering, the bushing’s high radial stiffness firmly anchors the control arm to prevent dynamic camber loss. Conversely, during pothole impacts, the elastomer’s compliance in the torsional and axial planes smoothly absorbs excess spatial strain. This material-driven multi-axial stiffness decoupling is a sophisticated engineering advantage that rigid metal bearings simply cannot replicate.
What Are the Core Advantages of Utilizing Suspension Bushings?
From the perspective of B2B supply chain economics and OEM aftermarket service networks, modern chassis components—such as forged aluminum control arms or stamped high-strength dual-phase steel subframes—are incredibly expensive to manufacture and ship. Requiring a consumer to scrap a high-value control arm assembly simply because a single mounting bore has worn out is commercially unviable.
The primary engineering advantage of a metal-rubber bushing lies in enabling low-cost, modular component replacement while safeguarding the high-value structural metal skeleton. It centralizes destructive kinetic wear into an inexpensive elastomeric cartridge that can be pressed out and replaced upon degradation.

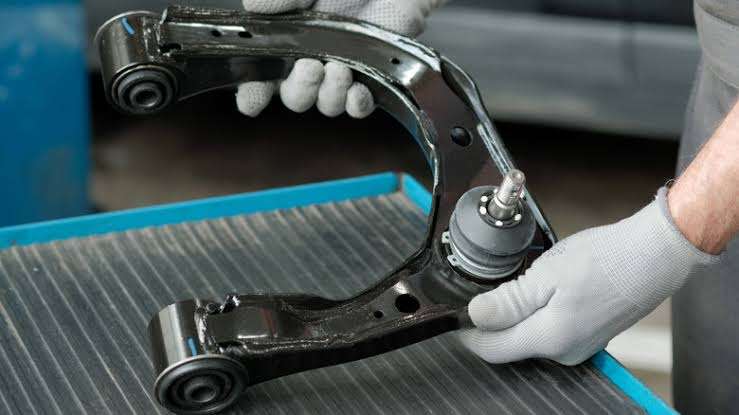

Control Arm Individual Bushing Press Fit Replacement
Modular Bushing Replacement Strategies to Reduce OEM Warranty Claim Rates
In the calculation of a vehicle’s Total Cost of Ownership (TCO), modular sub-assembly design is the fundamental strategy for minimizing both consumer maintenance burdens and OEM in-warranty claim expenditures. The undercarriage connection points are the most heavily abused fatigue zones on a vehicle, enduring continuous bombardment from grit, de-icing salts, and high-amplitude vibrations. By integrating a metal-rubber bushing, chassis engineers are effectively installing a mechanical "fuse" or "wear-isolation buffer" between expensive structural geometries.
As a vehicle surpasses 100,000 kilometers, the elastomer will inevitably exhibit surface micro-cracking or dynamic stiffness decay due to macromolecular fatigue and ozone degradation. Instead of replacing the entire arm, authorized service centers and large aftermarket chains utilize specialized hydraulic press tools to extract the exhausted bushing from the control arm eyelet. Pressing in a brand-new, precision-calibrated GJBUSH replacement bushing instantly restores the vehicle’s original tight handling characteristics at a fraction of the material cost.
To aggressively assist our Tier-1 clients in amortizing long-term procurement costs and mitigating warranty complaints, GJBUSH enforces elite manufacturing standards at the source. We mandate the deployment of the highly advanced Swaging (Shrinking) post-cure cold-forming process. After the vulcanized bushing exits the mold and cools to ambient temperature, high-precision hydraulic dies forcibly compress the outer metal sleeve radially inward. This physical reduction injects deep residual compressive stress into the internal rubber matrix. This critical barrier significantly slows the propagation rate of surface fatigue micro-cracks, effectively boosting the dynamic fatigue life of the bushing by approximately 50%. Delivering this extended-life durability greatly enhances a Tier-1 supplier’s technical weighting during OEM project bidding.
How to Select the Right Bushing for Specific Chassis Load Paths? Straight vs. Flanged Designs
A review of any commercial or passenger vehicle chassis BOM (Bill of Materials) reveals highly diversified bushing topologies. The foundational architectures are categorized primarily into Straight Cylinder profiles and Flanged (Shouldered) profiles. If an R&D engineer miscalculates the spatial load paths during the design phase, the bushing is highly susceptible to catastrophic axial slip-out during aggressive driving maneuvers.
Straight cylinder bushings are engineered for radially dominant load paths in tightly constrained axial envelopes. Conversely, Flanged bushings feature an extended metallic lip on one or both ends, specifically designed to withstand massive axial thrust loads and physically prevent the sleeve from slipping through the bore.

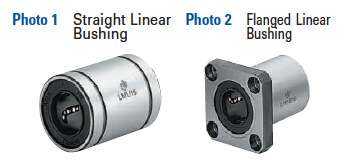

Chassis Flanged Bushing and Straight Bushing Structure
Flanged Edge Anti-Misalignment Designs Resolving Heavy-Duty Press-Fit Slippage
In forward chassis design, determining the correct bushing external geometry relies entirely on executing a precise CAE boundary analysis of the load spectrum across the X, Y, and Z coordinate axes.
Kinematic Profile of Straight Cylinder Bushings: These components feature a smooth, uniform outer metallic sleeve. When a suspension link (such as a toe-control arm in a multi-link setup) primarily endures radial forces (push/pull loads acting perpendicular to the bushing’s central axis), and axial drift forces are minimal within a compact packaging space, the straight cylinder is the most efficient choice. It benefits from lower tooling NRE costs and simplified bi-directional press-fit assembly procedures.
Kinematic Profile of Flanged (Shouldered) Bushings: In heavy-duty load zones such as subframe mounts or trailing arm pivots, the vehicle experiences extreme dynamic shifts during hard acceleration, heavy payload descents, or emergency evasive maneuvers. Beyond massive radial impacts, these events generate violent axial tear forces (thrust loads attempting to push the bushing linearly along its axis). If a straight bushing is misapplied here, the severe axial bias load can easily overcome the interference friction holding the outer sleeve inside the control arm eyelet. This causes the bushing to be forcibly extruded out of the bore, resulting in a total loss of suspension connectivity. The flared "skirt" of a flanged bushing seats firmly against the machined face of the control arm housing once pressed in, creating an absolute, failsafe mechanical stop against axial ejection.
GJBUSH commands an advanced tooling development ecosystem and a CNC flexible machining matrix. When tackling complex selection programs, our R&D center utilizes 3D topology optimization to help clients accurately calculate the exact flange thickness, lip angle, and internal rubber volume required, ensuring the component handles extreme axial bias loads flawlessly.
How to Determine Proper Press-Fit Tolerances for Suspension Bushings?
Securing a bushing with exceptional elastomeric properties is only the first step in the supply chain. If the OEM or Tier-1 assembly plant improperly specifies the machining tolerances for the control arm bore or the mounting bolt, the entire NVH engineering effort is rendered useless, leading to immediate assembly line failures or field clunking.
To guarantee absolute joint security, the outer metal sleeve and the control arm bore must utilize an Interference Fit (e.g., an H7 bore paired with an r6 or m6 outer sleeve) to ensure aggressive mechanical bite. Conversely, the mounting bolt passing through the inner sleeve must utilize a Clearance Fit (e.g., h6) to facilitate assembly and rely on clamping friction to lock the joint.

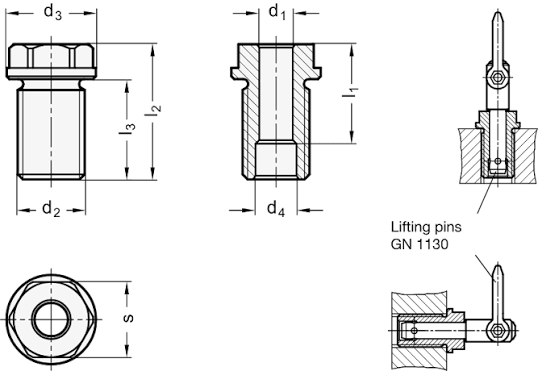

Automotive Bushing Outer Sleeve Interference Fit Dimensions
Chassis Tolerance Calibration Rules for Outer Sleeve Interference and Inner Bore Clearance
Tolerance calibration is an absolute engineering redline in mechanical manufacturing. For automotive metal-rubber bushings, the industry standardizes around the classic basic hole system for blueprint specification:
The Criticality of Outer Sleeve Interference Fit:
The outer metal sleeve of the bushing must be forcibly driven into the control arm eyelet using high-tonnage hydraulic presses. This mandates that the outer diameter of the sleeve is marginally larger than the inner diameter of the bore (typically featuring an interference margin of 0.05 mm to 0.15 mm, depending on the diameter and material properties). If the tolerance is specified too loosely (falling into a transition or clearance fit zone), high-frequency road vibrations will cause the sleeve to micro-slip within the bore, rapidly galling and destroying the expensive aluminum housing. Conversely, excessive interference will cause the thin-walled metal sleeve to buckle during pressing, or violently crack the cast control arm body. Therefore, the control arm bore is generally specified to an H7 tolerance class, while the mating bushing outer sleeve must be precision-ground to an r6, m6, or p6 interference tolerance band.
Inner Sleeve Clearance Fit and Clamping Logic:
The high-tensile bolt passing through the inner metal sleeve does not act as a rotational bearing journal. Its sole mechanical purpose is to generate immense axial clamping force when the chassis brackets are torqued down, physically locking the faces of the inner sleeve against the vehicle frame. Thus, a clearance fit (such as h6 or g6) is specified between the bolt shank and the inner bore. This ensures smooth, frictionless bolt insertion on the fast-paced vehicle assembly line. The kinematics of the suspension travel do not rely on the bolt slipping inside the metal tube; all pivoting motion is achieved purely through the torsional twisting of the vulcanized elastomer trapped between the inner and outer sleeves.
To guarantee zero-defect press-fit yield rates on our clients’ assembly lines, GJBUSH relies on banks of high-precision CNC centerless grinders. Governed by our MES network, we execute rigorous Statistical Process Control (SPC) tracking on every production batch, ensuring that the outer diameter of every single unit out of millions shipped lands perfectly centered within the exacting interference tolerance band.
How Is Press-Fit Reliability and Dynamic Fatigue Life Validated?
No matter how flawlessly a CAE model or blueprint tolerance is rendered digitally, seasoned OEM Supplier Quality Engineers (SQEs) know that physical validation is the only currency that matters. To survive the brutal realities of automotive duty cycles, prototype components must be subjected to extreme, violent physical torture on the test bench.
Validating press-fit security and chemical adhesion demands destructive Push-Out testing on massive 200 kN tensile machines. Verifying true dynamic fatigue life requires subjecting the component to over 1,000,000 continuous multi-axial variable load cycles on a tri-axial fatigue platform.
200KN Tensile Machine Bushing Push Out Test
200 kN Destructive Push-Out Force and Tri-Axial 1,000,000-Cycle Fatigue Benchmarks
Inside GJBUSH’s national-grade testing laboratory, every newly developed chassis bushing must survive a gauntlet of extreme physical destruction protocols before a PPAP (Production Part Approval Process) warrant is signed for mass production:
200 kN Destructive Push-Out Force Defining Adhesion Limits:
To identify potential interfacial debonding or weak press-fit retention, sample bushings are first subjected to hundreds of hours of aggressive ozone aging and Neutral Salt Spray (NSS) corrosion testing. The severely aged specimen is then locked into a massive electronic tensile testing machine with a capacity of up to 200 kN. A specialized mandrel applies extreme load to forcibly push the inner metal sleeve completely out of the outer sleeve. The passing engineering standard is utterly ruthless: the fracture plane must occur deep within the rubber matrix itself (a 100% cohesive tear), leaving thick, torn rubber residue firmly adhered to both metal boundaries. If even a microscopic sliver of shiny, bare metal is exposed, it indicates an interfacial adhesive failure—suggesting a deviation in our automated shot-blasting or dual-coating process—and the entire batch is rejected for immediate root-cause analysis.
The 1,000,000-Cycle Tri-Axial Fatigue Torture Test:
To correlate with, and often exceed, the full lifecycle of a vehicle operating on severe unpaved roads, we deploy single-axis, dual-axis, and industry-leading Tri-Axial Fatigue Testing Platforms. Mounted inside a thermal environmental chamber, the test specimen is simultaneously battered by heavy vertical crushing loads, violent longitudinal pulling, and extreme lateral torsional sweeping. A qualified chassis bushing must endure over 1,000,000 continuous complex load cycles while holding its static stiffness degradation curve strictly within a low single-digit percentage tolerance. Additionally, our 400 Hz high-frequency dynamic performance sweepers capture real-time micro-fluctuations in the dynamic stiffness curve, guaranteeing that volume production units will consistently deliver uncompromising NVH road-noise isolation.
Conclusion: Empowering Chassis Resilience Through Direct Manufacturing
The calibration of stiffness, the selection of component geometry, and the specification of press-fit tolerances for automotive suspension bushings constitute a hardcore, cross-disciplinary science merging mechanical drafting, polymer physics, and vehicle dynamics. In an era where superior chassis refinement dictates market dominance, relying on blind trial-and-error engineering or procuring from low-end contract assemblers is a guaranteed path to field failure.
Is your suspension R&D program currently bottlenecked by press-fit sleeve cracking, severe dynamic stiffness trade-offs, or repeated failures during 1,000,000-cycle fatigue validations? The GJBUSH NVH Co-Development Center is fully operational. We leverage an immense direct manufacturing capacity of over 200 precision machines and a rigorously audited IATF 16949 quality control system. We invite you to submit your 3D chassis CAD models, load boundary specifications, or press-fit challenges. Utilizing irrefutable bench test data and the ultimate cost-efficiency of a direct source manufacturer, we will deliver a customized, production-ready solution that permanently resolves your chassis engineering hurdles!
