The most reliable way to decide whether a rear knuckle bushing needs replacement is to connect a symptom with physical evidence. A worn bushing may contribute to repeated rear-wheel alignment changes, inner or outer shoulder tire wear, a clunk over bumps, or a rear-steer feeling during braking and cornering. None of those symptoms proves that the bushing is the failed part by itself.
Replacement becomes justified when inspection documents a structural failure, measurable movement beyond the vehicle maker’s limit, sleeve migration or metal contact, or alignment instability that remains after other suspension components have been ruled out. If the rear of the vehicle moves unpredictably, the wheel position is visibly unstable, or a link or knuckle is contacting metal-to-metal, stop normal driving and arrange a professional inspection or tow.
Quick answer: Treat noise and handling changes as screening clues. Confirm the condition with a loaded visual inspection, a controlled movement measurement, and alignment evidence. Follow the vehicle service manual for the limit and the approved repair method; do not use a universal mileage or age interval.

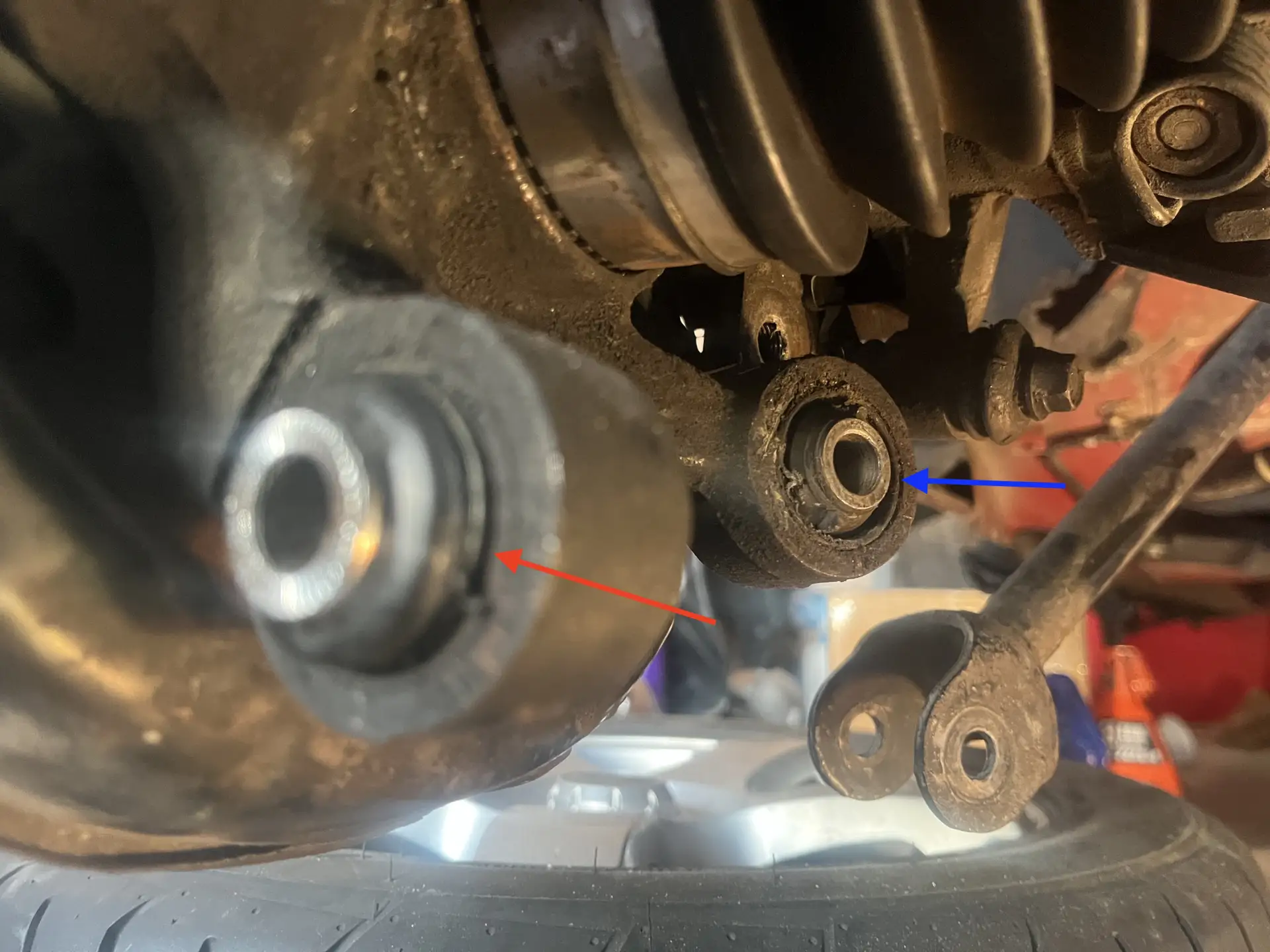

Rear knuckle bushing location
What a rear knuckle bushing does
The rear knuckle, also called a wheel carrier in some service literature, locates the wheel bearing and connects the wheel to links that control toe, camber, and wheel travel. A rubber-metal bushing at the knuckle provides a controlled elastic joint. It allows the small angular and axial movements required by the suspension while limiting unwanted translation and reducing shock and vibration transfer.
That compliance is part of the suspension design. SAE research describes bushings as elastic elements in the kinematics and compliance chain. Their stiffness and deflection under load affect the wheel’s relationship to the body and the vehicle’s handling response (SAE 2026-26-0094). A bushing that has lost material stiffness, separated from its sleeve, or developed excessive free movement can let the knuckle change position when the vehicle brakes, corners, or crosses a bump.
The exact design varies. Some vehicles use a replaceable cross-axis bushing in the toe-link connection. Others use a larger bonded bushing, a ball joint, or a complete wheel-knuckle assembly. The catalog name may therefore be “rear wheel knuckle bushing,” “wheel carrier bushing,” “toe-link bushing,” or part of a knuckle assembly. Verify the construction and service procedure by VIN or the manufacturer’s workshop information before ordering a part.
Symptoms that deserve an inspection
Repeated rear alignment change or uneven tire wear
A rear toe or camber reading that changes between alignment visits is a stronger clue than a single out-of-spec reading. Look for a pattern: the same corner drifts, the rear toe changes after a braking event, or the tire develops a wear pattern that returns after alignment. A loose bushing can allow the wheel carrier to move under load, so the static alignment rack reading may not show the full problem.
Uneven wear is not specific to a knuckle bushing. Tire pressure, bent wheels, a damaged control arm, a worn toe link, ride-height changes, and incorrect alignment hardware can create a similar pattern. Record the tire position, tread wear direction, alignment printout, and any recent impact before treating the bushing as the cause.
Clunking or knocking over bumps and during braking
A clunk can occur when a separated rubber element lets an inner sleeve shift against the outer housing. It can also come from a loose fastener, a toe-link joint, a control-arm bushing, a stabilizer link, a wheel bearing, or a brake component. Reproduce the noise under controlled conditions, then watch the suspected joint while the suspension is loaded. A sound heard with the vehicle on a lift is often different from a sound produced at ride height.
The existing GJBUSH steering knuckle bushing noise guide covers noise-focused failure analysis. This replacement decision article adds the evidence needed to decide whether the part should be replaced and whether it is safe to drive before that work.
Rear steer, wandering, or a change in the vehicle’s line
Some drivers describe a “loose rear,” a sideways step when braking, or a steering correction required after a bump. A change in rear toe under lateral or longitudinal load can create that feeling. SAE testing on rear axle bushings found that compliance can alter rear-axle alignment during cornering and affect lateral stability and understeer behavior (SAE 2013-01-0700).
This symptom has a high safety priority, but it still needs confirmation. A seized or fractured toe link, a loose wheel bearing, a bent knuckle, a tire defect, or a damaged subframe can produce the same sensation. If the rear movement is sudden, severe, or accompanied by a visible change in wheel position, avoid highway driving and have the vehicle recovered for inspection.
Visible cracking, tearing, or sleeve movement
Inspect the rubber at ride height. Look for a tear that reaches the load path, rubber pulled away from the metal sleeve, an inner sleeve that is no longer centered, extrusion from the housing, or polished metal where two components have been contacting. Oil, fuel, brake fluid, and road salt can accelerate deterioration.
Fine surface checking on an exposed rubber edge does not automatically mean the bushing has failed. A crack that opens when the joint is loaded, a void at the bond line, or a sleeve that moves separately from the housing carries more weight. Photograph the condition before disassembly and compare it with the opposite side, while remembering that some designs are intentionally asymmetric.

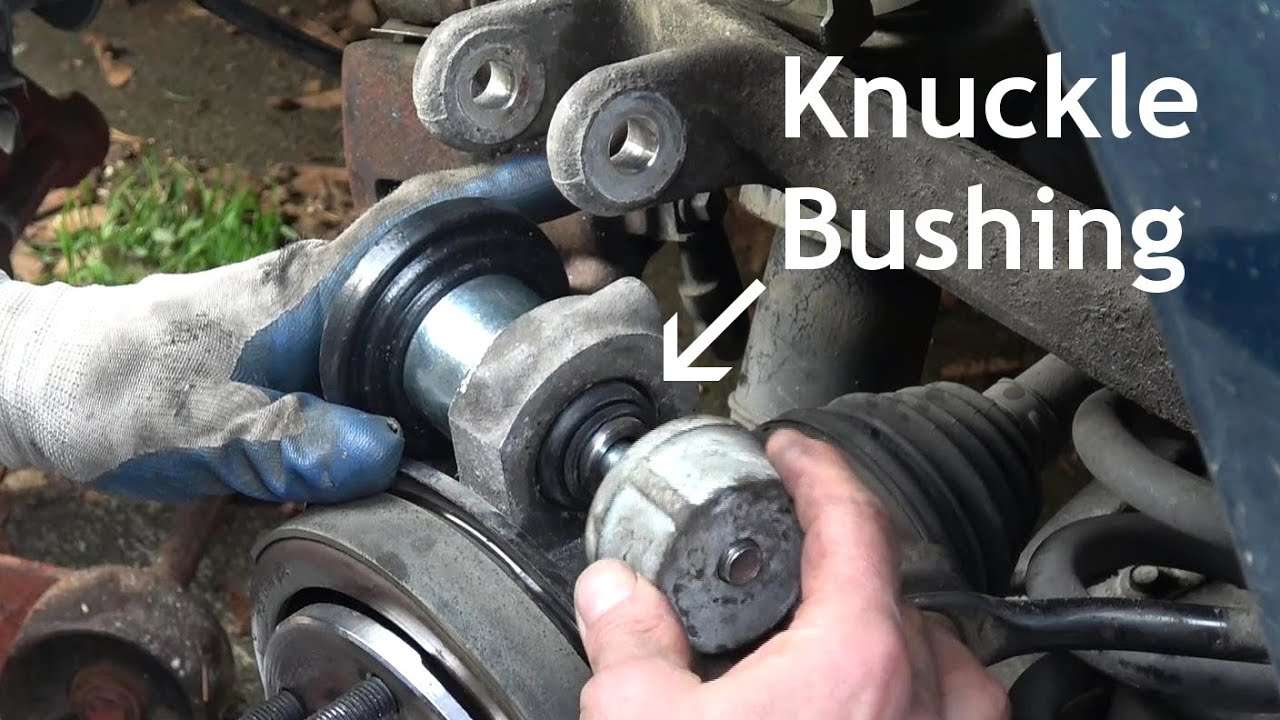

Rear knuckle bushing failure modes
Symptom-to-evidence decision matrix
Use the matrix as a triage tool. The vehicle-specific service manual and measured results control the final decision.
| Screening clue | Confirmation to seek | Practical action |
|---|
| One alignment reading is out of range | Check ride height, bent parts, fasteners, and repeatability; compare left and right readings | Correct the known cause and recheck before condemning the bushing |
| Alignment drifts or the same tire wears again | Compare alignment history, inspect under load, and measure relative movement | Schedule replacement when movement or structural damage is confirmed |
| Clunk over a bump or during braking | Reproduce at ride height and isolate the joint while applying controlled load | Repair the component that shows movement; do not replace from sound alone |
| Rear steer or sudden wander | Check wheel position, toe links, bearings, knuckle, and bushing movement | Stop normal driving if stability is compromised; arrange prompt inspection or towing |
| Surface checking only | Confirm that there is no open tear, sleeve migration, excess play, or alignment change | Monitor according to the service schedule and recheck under load |
| Torn rubber, bond separation, metal contact, or movement beyond the limit | Photograph, measure, and verify the approved part or assembly repair | Replace using the manufacturer’s procedure, then perform alignment and a controlled road test |
The strongest row is the last one because it combines a failure mode with evidence. A single subjective symptom is a reason to inspect; a structural defect or out-of-limit movement is a reason to plan the repair.
A confirmation process that works at ride height
1. Identify the actual joint and record the baseline
Confirm whether the suspected part is a bushing, ball joint, bonded link, or a complete knuckle assembly. Record the vehicle identification number, suspension layout, ride height, tire pressure, wheel size, and recent suspension work. Photograph the joint before cleaning it. If the vehicle has an alignment history, save the last two or three printouts and mark the tire position.
Ride height matters because a bonded rubber bushing is designed around a particular installation angle. A visual check with the suspension hanging can open gaps that disappear at normal load, while a joint that looks acceptable in the air may shift when the tire supports the vehicle.
2. Perform a loaded visual inspection
Use a level alignment rack or another safe method that supports the vehicle as specified by the workshop manual. Observe the joint at normal ride height and while a technician applies a controlled brake, drive, or lateral load. Look for:
- a tear that opens through the rubber web;
- separation between rubber and the inner or outer sleeve;
- an off-center or migrated sleeve;
- rubber extrusion, crushed edges, or a collapsed void;
- fresh witness marks from metal contact; and
- a damaged housing, link, fastener, or knuckle bore.
Do not place hands near a pinch point while the suspension is being loaded. A camera, inspection mirror, and paint marks on the sleeve can help show movement without putting a person beside a moving joint.
3. Measure relative movement, not just appearance
A pry bar can show that a joint moves, but the force and lever position must be controlled if the result is to be compared with a service limit. Use a dial indicator, displacement sensor, or the manufacturer’s specified fixture when available. Measure the movement of the knuckle or link relative to the fixed housing, and note the direction of movement.
Separate elastic deflection from free play. A healthy bushing can deflect and return under load. Free play, a step change, a delayed return, or a sleeve that moves without the surrounding rubber carrying load points toward damage. Record the initial position, applied direction, measured displacement, and temperature if the manual specifies them.

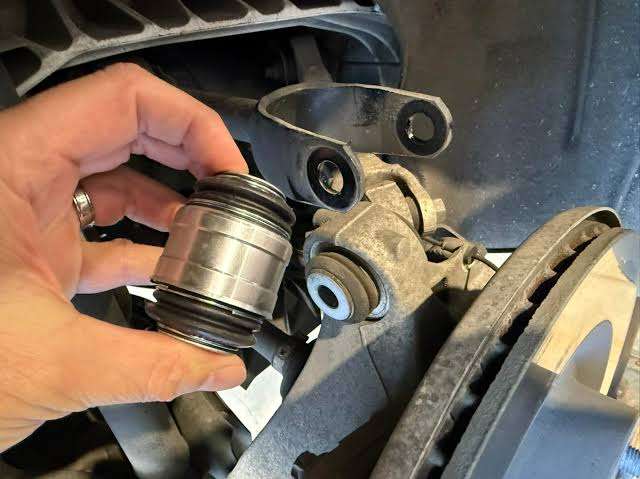

Measured knuckle movement
4. Compare alignment data with history and the opposite side
Check rear toe and camber at the specified ride height. Compare the two sides and compare the current printout with previous records. A small side-to-side difference can be normal, while a repeatable shift after braking or a large change after a bushing is loaded deserves investigation. Alignment data is evidence of the wheel’s position, not proof of which component caused it.
An NHTSA-hosted Audi recall circular shows why this step matters: rear-axle alignment displacement was linked to premature uneven tire wear and reduced traction, so the remedy included alignment and tire inspection (NHTSA recall circular 42L5). Use the same logic after a knuckle bushing repair: establish the baseline, repair the cause, and confirm the final geometry.
5. Exclude the neighboring components
Check the toe link, control-arm bushings, ball joints, wheel bearing, damper mount, subframe attachment, wheel, tire, and alignment adjuster. Confirm fastener torque and look for witness marks that show a bolt has moved in its slot. A wheel bearing may create play at the rim but no movement at the bushing sleeve. A toe-link joint may create a similar clunk while the knuckle bushing remains intact.
This exclusion step prevents a common repair error: replacing a bushing because it is easy to see while the actual looseness is in another joint. If a manufacturer requires a complete knuckle assembly, use that repair path. In a Ford/NHTSA program for certain Explorer configurations, the approved procedure distinguishes a ball joint from a bushing at the rear knuckle and specifies alignment after repair; the bulletin also warns that an incorrect aftermarket joint can restrict movement and overstress the toe link (Ford Regional Program 21R02). The example is vehicle-specific, but the diagnostic lesson applies broadly: part design and approved repair method matter.
6. Use a controlled road test only after the vehicle is safe
If the static checks show no immediate hazard, perform a short, low-speed road test on a known route. Repeat a gentle brake application, a low-speed bump, and a mild lane change. Record whether the symptom is repeatable and whether it occurs under braking, acceleration, lateral load, or vertical movement.
Do not use a road test to confirm a condition that already shows dangerous rear movement. The purpose of the test is to correlate a safe, controlled symptom with the inspection evidence, not to push a damaged suspension until it fails.
When replacement is the right decision
Arrange replacement when one or more of the following is documented:
- The rubber has torn through the designed load path, the bond has separated, or the sleeve has migrated.
- The measured relative movement exceeds the vehicle maker’s specified limit, or the joint has clear free play rather than controlled elastic deflection.
- The bushing allows metal-to-metal contact, creates a repeatable alignment change under load, or causes the wheel position to move visibly.
- A qualified inspection has ruled out links, bearings, ball joints, tires, and loose hardware, and the bushing is the remaining source of the symptom.
- The vehicle maker specifies replacement of the bushing or complete knuckle assembly for that failure mode.
Plan the repair soon when there is an open crack or progressive deterioration but no current instability. A vehicle with only light surface aging, stable geometry, and no measurable excess movement can usually be monitored according to the service schedule. The inspection record should state what was seen, what was measured, and when it will be rechecked.
Do not set a universal “replace every 60,000 miles” rule. Rubber aging depends on temperature, ozone, salt, oil exposure, road impact, load, and the bushing’s strain history. A vehicle that spends its life on smooth roads can age differently from one that carries heavy loads over broken pavement.
Replacement and post-repair checks
Use the correct bushing orientation, sleeve length, void direction, and approved lubricant or press method. Do not assume that a visually similar bushing has the same compliance curve. A replacement that is too stiff, too soft, or installed in the wrong direction can change rear toe compliance and create a new handling or NVH problem.
Set bonded bushing fasteners at the design ride height when the service manual requires it. A Ford/NHTSA procedure measures hub-to-fender height before disassembly and tightens suspension bushing fasteners with the suspension supported at ride height; it recommends an alignment rack (Ford rear suspension service procedure). Preloading a bonded joint at full droop can twist the rubber at rest and shorten its life.
After installation, verify that the sleeve is seated, the housing has no damage, and all single-use hardware has been replaced where specified. Perform four-wheel alignment, save the printout, and compare it with the baseline. Check the tire for existing damage, then repeat a controlled road test. Reinspect after the first service interval if the vehicle experienced severe corrosion, an impact, or a complex knuckle assembly repair.

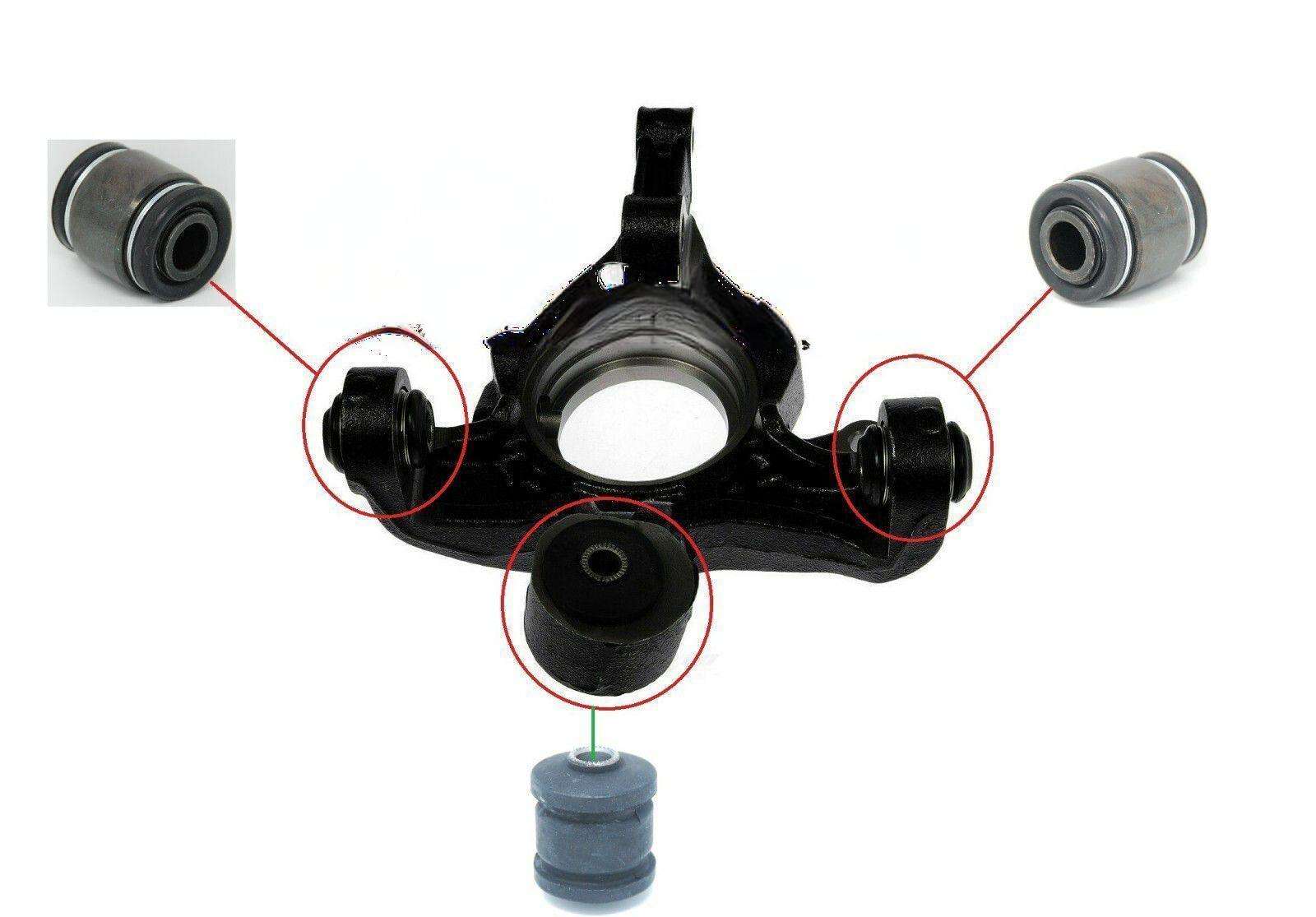

Installation and validation
How GJBUSH supports an OE-level replacement decision
For a custom rear knuckle or wheel-carrier bushing, the part must be matched to the vehicle’s load directions, motion envelope, rubber compound, sleeve geometry, bonding system, and durability target. GJBUSH / Jiangxi Guangyi approaches rubber-metal bushings as tuned elastic joints. Its automotive NVH engineering program describes system-level analysis, rubber-to-metal bonding, CAE simulation, stiffness and fatigue validation, and chassis tuning. The rubber bushing capability page lists dynamic and static stiffness, tri-axial durability, aging, salt-spray, and bond testing.
Those capabilities matter when a replacement must reproduce the original wheel-location behavior. The engineering request should include the drawing or sample, vehicle and axle loads, installation direction, ride-height condition, required movement, target stiffness by direction, environment, and the validation plan. A replacement should be judged by its measured function in the assembly, not by dimensions alone.
Frequently asked questions
Can a clunk alone prove that the rear knuckle bushing is bad?
No. A clunk is a reason to inspect. Confirm the source by loading the suspension and checking the bushing, toe link, control-arm joints, bearing, fasteners, and brake hardware. Replace the part that shows structural damage or out-of-limit movement.
Is a cracked bushing always unsafe to drive?
The crack’s depth and location matter. Surface checking with stable geometry may be monitored. A tear through the load path, bond separation, sleeve migration, metal contact, or rear-wheel movement calls for prompt repair. If the vehicle wanders or the rear moves suddenly, stop normal driving and arrange recovery.
Should both sides be replaced together?
Follow the vehicle maker’s procedure. Pair replacement can be sensible when both sides share the same exposure and one side has confirmed fatigue, but a blanket rule is not appropriate for every design. Inspect and document both sides before ordering parts.
Do I need an alignment after replacing a rear knuckle bushing?
Usually, yes. The work can change the wheel carrier’s position, and many procedures require alignment or rear-toe adjustment. Measure before disassembly when possible, tighten at the specified ride height, and save the post-repair alignment result.
Can I press in an aftermarket bushing instead of replacing the knuckle assembly?
Only when the manufacturer’s service information permits it and the replacement matches the joint’s motion and load requirements. Some assemblies are designed to be replaced as a unit. Confirm the approved repair path before pressing a part into a knuckle.
