A shackle bushing sits around the pin or bolt at a suspension shackle pivot. In a rubber design, it carries load and allows controlled movement. The rubber can also reduce vibration passed between the connected metal parts. Rubber shape, metal sleeves, and how the joint is fitted all affect its response.

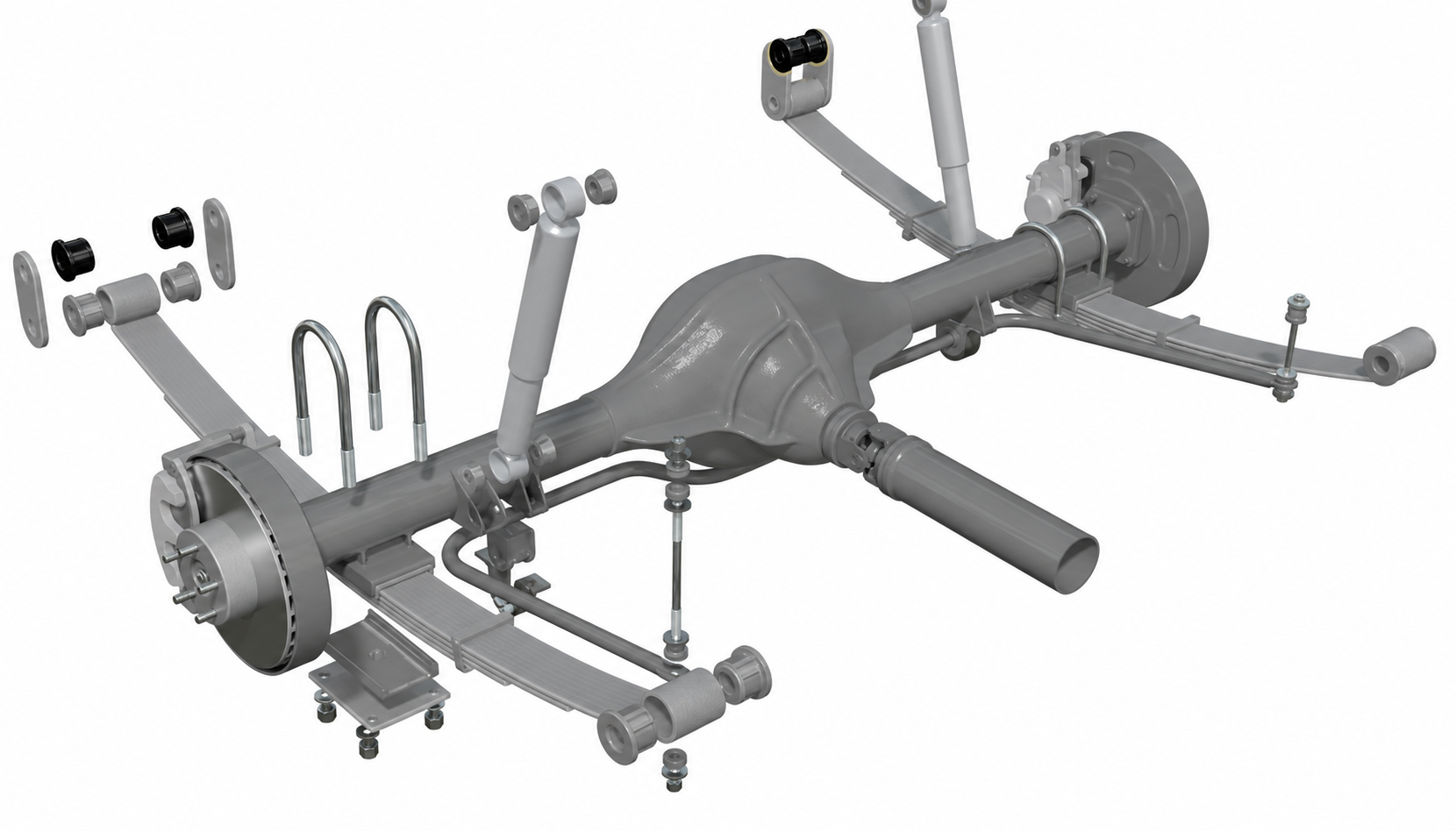

A common use is in leaf-spring suspension. Here, the shackle forms a moving link between the spring and its support. Ford identifies one leaf-spring mounting part as a shackle bushing. This use explains the name. It does not establish a standard size, rubber grade, or stiffness.
This guide covers the rubber and rubber-to-metal product itself. It explains how to specify the part for original equipment (OE) use. The focus is its construction, mounting interfaces, performance targets, and test evidence.
How a Shackle Bushing Is Constructed
First, check which surfaces are bonded, clamped, press-fitted, or free to move. Parts that look alike may work in different ways. A photograph alone cannot show all these details.
A bonded, sleeved design has an inner metal sleeve and a rubber section. It may also have an outer metal sleeve. The bolt passes through the inner sleeve. The rubber forms the flexible link between the metal parts. An outer sleeve, where used, fits into the receiving bore.
When the rubber is bonded to both sleeves, check how the inner sleeve is held. If it is clamped, movement comes mainly from the rubber deforming between the sleeves. The bolt should not turn freely inside that clamped sleeve. This sets a limit on the joint’s twist and makes its initial angle important.
Other designs use a rubber insert without a separate outer shell. Some use pieces with flanges. For each design, establish what holds the insert in place and where it contacts the surrounding parts. A flange may take axial load, but its shape alone does not establish how much.
Show the full joint on the drawing, including sleeves, washers, shoulders, and brackets. State where movement should occur. A bonded joint takes motion through rubber strain. A joint with sliding contact needs a different review of friction, wear, and any required lubrication.

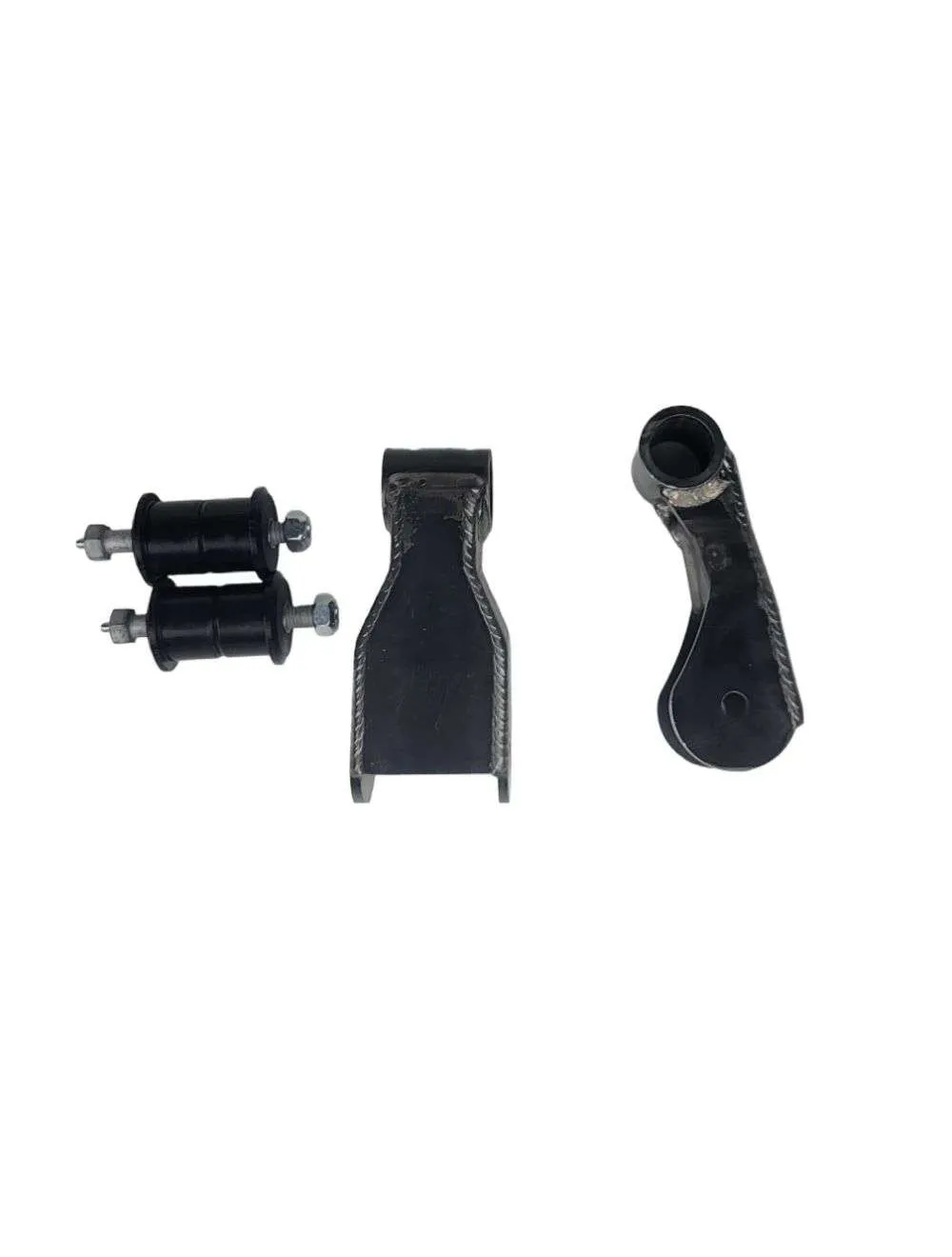

Shackle bushing product construction
Define the Mounting Interfaces Before Selecting the Compound
Outside diameter, inside diameter, and overall length are basic dimensions. The fitted joint needs more detail.
For a sleeved part, check the bore and the fit between it and the outer sleeve. Specify the insertion direction and lead-in shape. Show where the press tool should apply force. Also check the inner sleeve length against the bracket spacing and washer contact. These features set the clamp load path through the joint.
The wrong sleeve length can change how the joint clamps, even if the bolt fits. Poor press support can distort a shell or put unwanted load into the rubber. Review the assembly method while developing the part, before the first vehicle build.
For a bonded design, set the reference angle and the joint position used during final tightening. Clamping at the wrong angle can leave the rubber already twisted at rest. This reduces the twist available during normal travel. Use the released assembly specification for torque and position; both depend on the design.
Add an orientation datum if the part has directional features. Agree how to measure each critical dimension. Both teams need the same datums and inspection methods.
Mounting dimensions and clamping conditions
Specify Load, Motion, and Stiffness by Direction
A useful specification states what the joint must support and how it must move. Radial movement is across the bushing axis. Axial movement is along it. Torsion is twist about that axis. Conical motion is tilt between the inner and outer axes.
These needs must work together. A joint may need firm radial support while allowing repeated twist. More restraint in one direction can change the loads passed into the bracket. Set the targets around suspension positioning and noise, vibration, and harshness (NVH) needs. Check them against the full motion range.
Use a requirement-and-evidence matrix to make that balance reviewable:
| Product requirement | What to define | Evidence to request |
|---|
| Radial support | Load direction, working range, and allowed movement. | Load-displacement curves with fixture details. |
| Axial restraint | Side load, travel, and flange or shoulder contact. | Axial response and contact checks. |
| Torsional motion | Starting angle, travel range, and resisting torque. | Torque-angle curves from the intended assembly. |
| Conical movement | Tilt range and load applied during tilt. | Motion checks with the correct constraints. |
| Dynamic response | Preload, amplitude, frequency, and temperature. | Dynamic stiffness and damping at those conditions. |
| Durability | Load sequence, motion range, exposure, and pass criteria. | Before-and-after test results and damage records. |
Keep the measured curves as well as the reported values. Rubber response can be nonlinear: its slope may change as load increases. State how stiffness is calculated and over which part of the curve.
Hardness measures something different. ASTM D2240 describes durometer indentation testing, which measures how far an indenter enters the material under set conditions. A Shore A value does not establish the part’s stiffness, twist range, or fatigue life. Test these separately.
Directional stiffness and motion requirements
Select the Rubber, Geometry, and Bonding System Together
Material selection starts with the working conditions. Define normal and peak loads, repeated movement, and temperature range. List contact with water, road salt, oils, or other fluids. State which exposures are frequent and which are occasional.
A rubber compound is a formulated mix. It may use natural rubber, synthetic rubber, or a blend. Select it for the intended duty. Metal sleeves are often steel. Specify their grade, wall thickness, finish, and protective treatment too. Assess the rubber and metal as one working assembly.
Review that compound in the proposed shape. Rubber thickness, sleeve size, end shape, and relief features affect how the rubber deforms. A new compound can change several responses at once. A change in shape can also alter response, even if hardness stays the same.
Link each material property to a product need. Flexibility in cold conditions, resistance to a named fluid, and fatigue under repeated twist are separate questions. Ask for data that addresses each need. A label such as “heavy-duty rubber” gives too little detail.
Review the bonding system alongside the compound. This includes metal preparation, the adhesive, molding conditions, and rubber cure. Together, they must form an interface that carries the intended load. Check for unwanted separation or slip.
If a sample fails, record where it failed. Did the rubber tear? Did the bond separate? Did a sleeve move in its bore? These findings point to different causes and corrective actions.
For a review involving GJBUSH’s rubber bushing product family, provide fit and performance requirements with the drawing. Include the working conditions so the review can address more than hardness.
Validate the Product in Its Intended Assembly
Material tests help screen candidates. Product approval also needs tests on the part in a suitable fixture. Match the bore, sleeve clamping, orientation, and load direction to the intended joint. The fixture must represent the conditions that affect the result.
Establish the initial response
Measure load-displacement and torque-angle curves before the endurance test. Record how the sample was conditioned and fitted. Also record temperature, loading rate, and starting angle. These details allow a fair comparison with later results.
Dynamic tests need a defined setup too. Published SAE research on nonlinear bushing behavior describes how response depends on frequency, amplitude, and preload. Agree these conditions before comparing parts. A static curve at room temperature cannot establish behavior across a vibration range.
Check the interfaces and durability
Choose a bond test that suits the part and the question. The public overview of ASTM D429 rubber-to-rigid-substrate adhesion methods lists several sample and loading arrangements. Select the applicable method and agree the pass criteria. Citing the standard alone does not set a bond-strength target for the product.
For durability, agree the load and motion sequence, fixture, temperature, test duration, and inspection points. Include relevant exposure before or during the test. Set the severity around the intended duty and the failure modes being assessed.
After the test, check stiffness change, permanent movement, rubber damage, and bond condition. Confirm that the mounting fits still hold as intended. Record these findings alongside the completed cycle count.
Then confirm the part in the suspension and vehicle programme. Check that its flexibility works with the surrounding geometry. Assess ride, handling, and NVH against the agreed targets.
Installed product validation
Carry the Approved Performance into Serial Production
Use the approved prototype as a reference for serial production. Retain its drawing revision, compound ID, metal and coating requirements, and tooling status. Keep the process settings and test results with that record.
Build the control plan around features that affect fit and function. These may include sleeve sizes, rubber shape, compound consistency, metal preparation, adhesive application, and cure conditions. Add assembly orientation where the design requires it.
Check dimensions and materials alongside agreed functional sampling. Correct dimensions alone do not prove that dynamic response or bond durability matches the approved sample. Choose functional checks that address the product’s main risks.
Where required, agree the scope of Advanced Product Quality Planning (APQP) and the Production Part Approval Process (PPAP). Set out who approves each deliverable. Link inspection and test records to batch IDs. An unexpected result can then be traced to its materials and process history.
Changes need a review path too. A new compound, adhesive, coating, metal source, or process may require fresh evidence. Agree which features and tests need review before releasing the change.

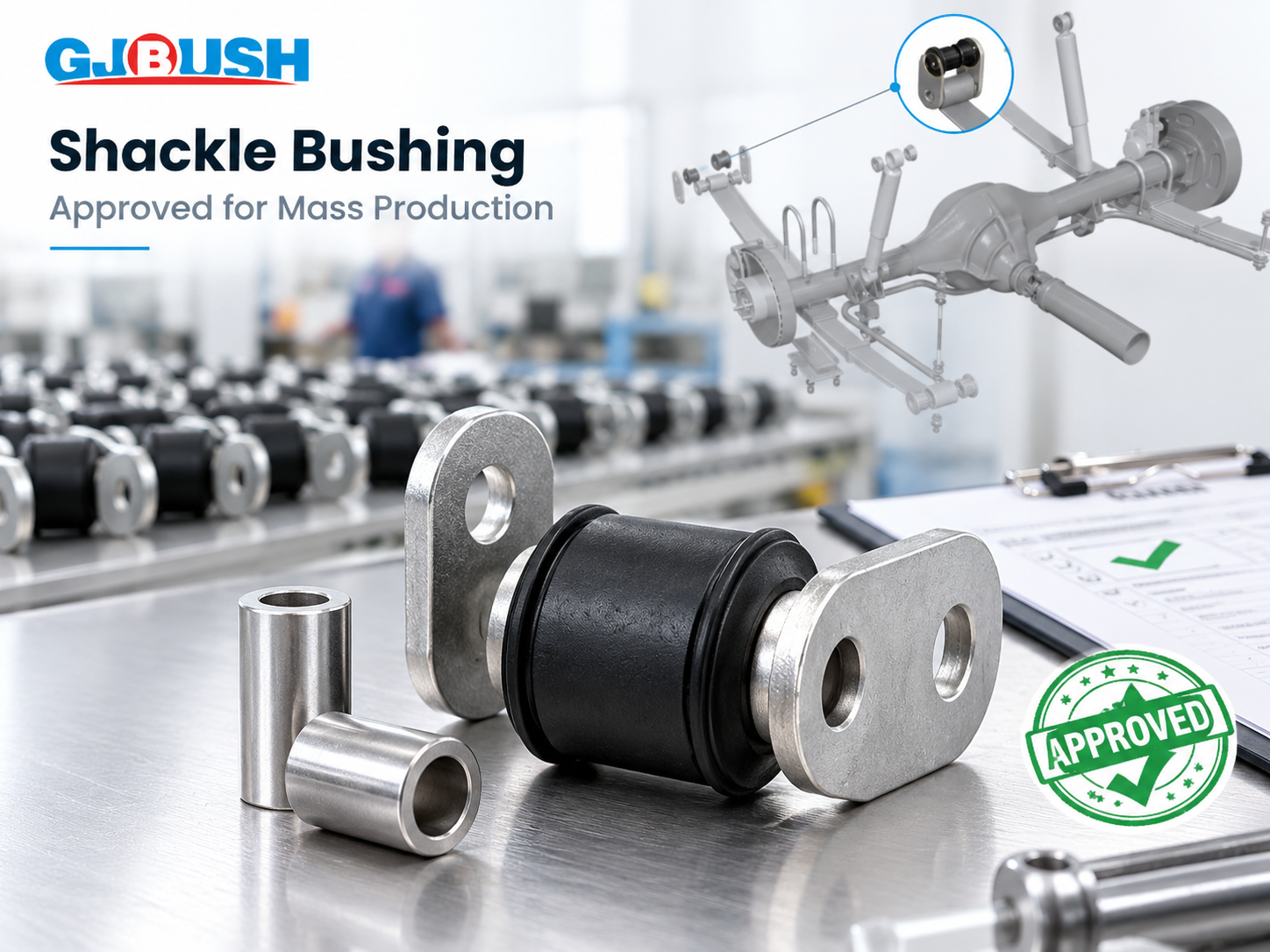

Approved sample to serial production
What to Provide for a Shackle Bushing Development Review
An OE enquiry should describe the joint as well as the part. Start with the information available and identify the gaps:
- Application and identity: vehicle or equipment platform, installation position, OE reference, and drawing revision.
- Interfaces: mating bore, pin or bolt, bracket spacing, sleeve clamping, and orientation.
- Operating conditions: load directions, working and peak loads, angular travel, temperature, and environmental exposure.
- Performance and evidence: target curves or a reference part, NVH requirements, durability expectations, and customer test methods.
- Programme inputs: sample availability, any existing failure evidence, annual volume, and development timing.
A sample can help define the starting point. State whether the goal is to match its measured response, fix a known weakness, or change behavior within the same space.
To discuss a shackle bushing project with GJBUSH, submit the drawing, sample information, and operating requirements for review. These inputs help define the product’s construction, targets, and test plan.
