Steering knuckle bushing replacement cost is usually driven more by access, press-fit work, and related suspension parts than by the rubber bushing itself. A straightforward bushing-only repair may be a few hundred U.S. dollars for one corner. If the job requires a control arm or link, a wheel bearing, a hub, or a complete steering knuckle assembly, the same diagnosis can become an $800–$1,600-plus repair per side in current U.S. market examples.
Those figures are planning bands, not a quote. Vehicle design, region, shop rate, corrosion, part source, and whether the bushing is separately serviceable can change the bill substantially. A defensible estimate should show the diagnosis, part numbers, labor hours, press or special-tool work, alignment, and any related repairs as separate lines.

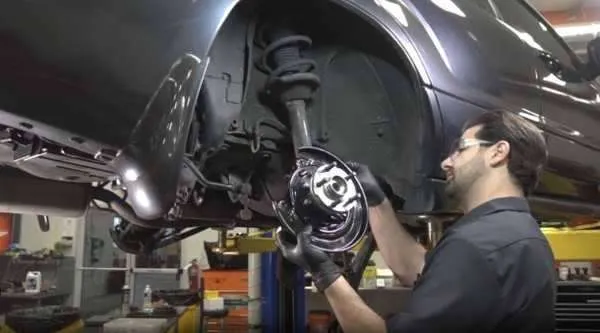

Steering knuckle bushing replacement inspection
What Part Is Actually Being Replaced?
In passenger cars and light trucks, a steering knuckle bushing is generally a rubber-to-metal elastomeric joint located in, or directly connected to, the steering knuckle or wheel carrier. Depending on the suspension layout, it may be pressed into a knuckle bore, a control-arm eye, or another link that is bolted to the knuckle.
The name can be confusing. In a heavy-duty steering axle, “steering knuckle bushing” may mean a lubricated kingpin bushing. That is a different service operation with different wear limits and tooling. A kingpin bushing may require axle disassembly, a hydraulic press, seal replacement, lubrication alignment, and a much larger labor allowance.
Before discussing price, confirm the exact part on the drawing or service estimate. Ask whether the quote is for:
- a rubber bushing only;
- a control arm, link, or knuckle carrier with the bushing installed;
- a bare steering knuckle that requires bearing and hub transfer; or
- a loaded knuckle or hub assembly that already includes bearings, seals, shields, or sensors.
For a general explanation of the component and its interfaces, see What Is a Steering Knuckle Bushing?.
A Practical Cost Planning Range
The table below gives broad U.S. planning bands for one corner. It combines current estimator examples and common repair structures, then separates the variables that make the result move. It is not a vehicle-specific quote, and taxes, shop supplies, diagnostic charges, and related repairs may be additional.
| Repair configuration | Illustrative planning band | What usually drives the range |
|---|
| Bushing only, housing and link reusable | About $250–$650 | Bushing price, access, press time, corrosion, and local shop rate |
| Bushing plus alignment and post-repair checks | About $350–$850 | Alignment equipment, before/after measurements, and road verification |
| Link or control-arm assembly with bushing installed | About $450–$1,000 | Assembly price, additional joints, fasteners, and reduced press work |
| Knuckle, hub, or bearing work included | About $800–$1,600+ | Bearing transfer, seized parts, loaded assemblies, sensors, and alignment |
| Heavy-duty kingpin bushing service | Vehicle-specific; often substantially higher | Axle disassembly, kingpin condition, press tooling, seals, lubrication, and downtime |
These bands are intentionally wide. A current RepairPal estimate for a related press-fit control-arm bushing repair shows how a parts/labor split can be presented, while vehicle-specific knuckle estimates show that hub, bearing, and alignment work can dominate the final total. See the RepairPal control-arm bushing estimator for an example of the format, not a promise for a steering knuckle bushing.
The U.S. Bureau of Labor Statistics reported a May 2025 median wage of $50,620, or $24.34 per hour, for automotive service technicians. A customer-facing shop rate is not the technician’s wage. It also covers equipment, rent, benefits, training, service information, warranty exposure, administration, and profit. The BLS figure helps explain labor economics; it should not be multiplied directly into a repair quote. See the BLS Occupational Outlook Handbook.

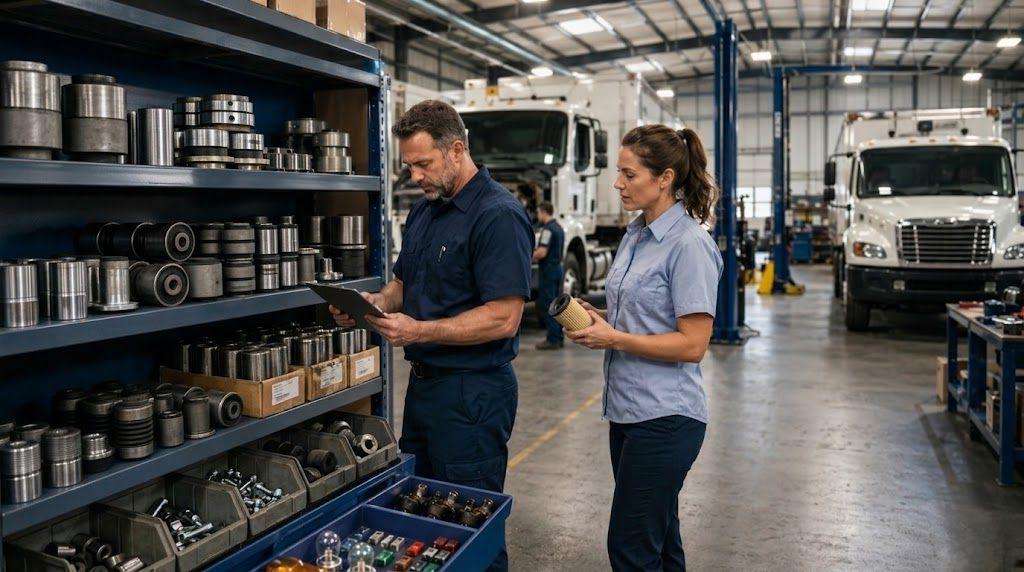

Parts and labor cost breakdown
The Four Cost Layers on a Good Estimate
1. Diagnosis and access
The first charge should establish what has failed. A cracked bushing can resemble a loose ball joint, tie-rod end, wheel bearing, fastener, or subframe mount. The technician may need a lift inspection, a loaded visual check, a play measurement, a road test, or alignment readings before recommending parts.
Access then determines the labor path. The technician may need to remove the wheel, brake caliper, rotor, dust shield, tie rod, ball joint, drive axle, control arm, or sensor wiring. A strut-based layout may expose the knuckle quickly; a multi-link layout may require several links and fasteners to be removed. Corrosion and seized hardware can add time even when the replacement bushing is inexpensive.
2. Parts and part sourcing
The quote should identify the exact part number and whether it is OE, an approved replacement, remanufactured, or used. A bushing-only part may have a low unit cost, but the part is only suitable when the housing and mating surfaces remain serviceable.
An assembly may cost more but reduce press work and the risk of damaging a new bushing during installation. Some knuckles include a hub or bearing; others require the old bearing to be pressed out and a new one installed. If the bearing is damaged during transfer, the parts total changes.
3. Press-fit, bonding, and installation work
Press-fit work is a process, not a simple bolt-off, bolt-on operation. The technician must support the correct shell, apply force along the intended axis, preserve the bore, and stop at the specified depth. A bushing with an orientation mark, void direction, lubrication groove, or asymmetric sleeve must be aligned correctly.
A damaged bore, incorrect support, excessive press force, or wrong installation direction can create a repeat failure. The labor line should therefore reflect the equipment and skill required, rather than treating all bushing replacements as interchangeable.
For heavy-duty kingpin bushings, NHTSA recall documentation illustrates the additional steps that may be involved: pressing the old bushing from the knuckle, installing a presized bushing with the correct groove orientation, and replacing seals and related hardware. See the Mack kingpin bushing procedure.
4. Alignment and verification
Suspension work can change wheel position even when the replacement part is dimensionally correct. A proper estimate may include a pre-repair alignment check, final alignment, steering-wheel centering, sensor inspection, and a controlled road test.
An OEM service campaign for a front steering knuckle replacement requires a new hub nut, a before-and-after alignment printout, and confirmation of normal steering operation. That procedure shows why alignment and verification can be legitimate line items rather than unexplained add-ons. See the NHTSA-hosted service campaign document.

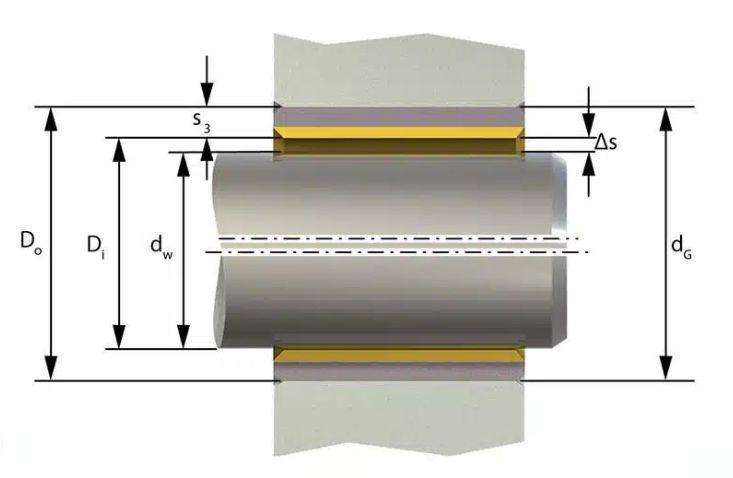

Press-fit bushing installation
Why Labor Can Exceed the Bushing Price
Rubber and metal are inexpensive compared with the time required to reach, remove, press, inspect, and validate the joint. The labor bill rises when:
- the bushing is buried behind several suspension links;
- the inner sleeve is seized to a bolt or the outer shell is corroded in the bore;
- the wheel bearing or drive axle must be removed;
- the bushing requires a hydraulic press or a vehicle-specific tool;
- the housing must be cleaned, measured, or repaired before pressing;
- the assembly contains ABS or wheel-speed sensor hardware; or
- alignment and post-repair road checks are required.
This is why a quote that lists a $40 or $90 bushing can still contain several hundred dollars of labor. The price does not automatically indicate overcharging; it should be judged against the actual procedure and evidence.
Bushing Only or Complete Assembly?
Evaluate a bushing-only repair when the housing is sound
Replacing only the bushing can be the efficient choice when the knuckle, control-arm eye, link, bore, and mating surfaces are within specification. It also makes sense when the shop has the right press fixtures and can control installation direction, depth, and seating.
The lower parts price should be balanced against process responsibility. If the shop cannot support the shell correctly or measure the bore, a low-cost bushing can produce a high-cost comeback.
Consider an assembly when damage or access changes the risk
An arm, link, knuckle, or loaded hub assembly may be the better repair when the housing is damaged, the bushing is not sold separately, the bearing cannot be reused, or disassembly creates a high risk of seized hardware and rework. The assembly price is higher, but it can reduce press operations and shorten the time the vehicle is disabled.
Do not choose the assembly only because the part is easier to sell. The estimate should identify what additional parts are included and why they are needed.
Verify alignment after either repair
Part selection does not complete the repair. Whether the shop installs a bushing or a complete assembly, verify fastener torque, wheel position, steering-wheel center, alignment, tire clearance, and sensor routing. A road test should confirm that the vehicle tracks and responds normally.
How Bushing Design Connects to Cost and Handling
The bushing is part of the wheel-location chain. Its stiffness and damping are selected to manage wheel movement, steering response, ride, and durability. When the rubber formulation, sleeve geometry, void pattern, or bonding area changes, the component can meet one target while moving another.
SAE research describes bushing elasticity as a factor that changes wheel orientation under external forces. Lateral-force steer and brake-force steer are connected with stability and safety. See SAE 2023-01-0638.
Stiffness also depends on direction and test amplitude. A 2026 SAE paper explains that measured bushing stiffness and the test methodology influence axle elasto-kinematics and K&C correlation. That is one reason a replacement part should be checked against the application’s load directions and installation conditions, rather than judged only by its outside dimensions. See SAE 2026-26-0094.

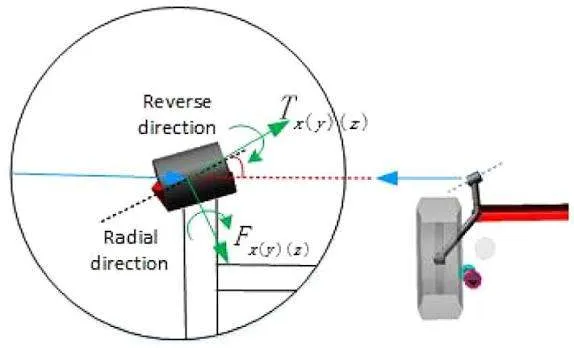

Bushing stiffness directions
What Evidence Should Be on the Quote?
Ask the repair provider to show the following before authorizing work:
- Damage evidence. Request photos of the torn rubber, sleeve movement, damaged bore, corrosion, or contact marks. If the diagnosis is based on play, ask how it was measured.
- Component identification. Confirm the exact location, side, part number, and whether the estimate covers a bushing, link, control arm, bare knuckle, or loaded assembly.
- Line-item labor. The quote should show labor hours, the shop’s hourly rate or flat-rate basis, and the operations included in that labor.
- Press and special-tool work. Ask whether a hydraulic press, vehicle-specific fixture, bearing transfer, or sensor procedure is included.
- Alignment and verification. Confirm whether alignment, before/after readings, steering-wheel centering, and road testing are included or billed separately.
- Related parts and warranty. Ask about ball joints, wheel bearings, fasteners, seals, brake hardware, and the warranty responsibility if a press-fit installation fails.
The goal is to compare equivalent scopes. A quote that excludes alignment cannot be compared directly with one that includes alignment. A bushing-only quote cannot be compared directly with a loaded knuckle assembly.

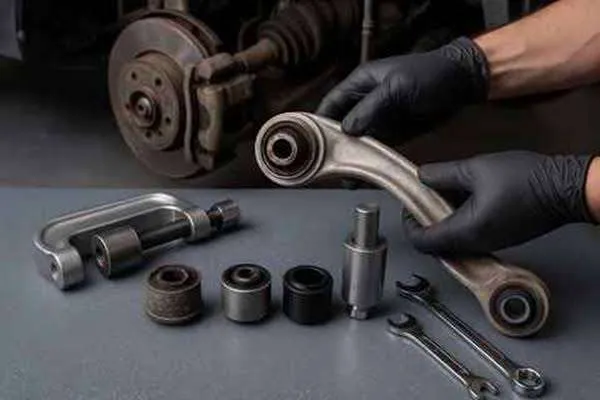

Repair quote comparison checklist
Common Reasons the Final Bill Changes
A neighboring fault is found after disassembly
The initial symptom may be caused by more than one worn part. Once the knuckle is accessible, the technician may find a loose ball joint, rough wheel bearing, damaged tie rod, stretched brake hose, or fastener that cannot be reused. The shop should pause, document the finding, and explain how it changes the repair scope.
Press damage creates rework
Wrong support, wrong direction, or excessive force can damage the new bushing or the housing. Rework can erase the apparent savings of a bushing-only repair. Ask how the shop controls press depth, orientation, bore condition, and final seating.
Alignment or road verification is listed separately
Alignment, a before/after printout, steering-wheel centering, and a road check are reasonable after work that can alter wheel geometry. The estimate should state what each line includes and whether a second adjustment is covered if the first measurement shows a related fault.
A fixed online price does not match the vehicle
Online prices often assume a specific model, labor region, part configuration, and repair scope. Treat them as a starting point. The vehicle identification number, suspension layout, side of the vehicle, corrosion, and included parts matter more than a generic headline.
How a Supplier Can Reduce Programme Cost
For an OE or replacement programme, the lowest unit price is not always the lowest total cost. A bushing that is difficult to press, sensitive to orientation, or inconsistent in stiffness can add labor, warranty claims, and vehicle downtime.
A supplier should define the application load cases, installation constraints, material targets, rubber-to-metal bonding requirements, stiffness directions, fatigue exposure, and inspection plan. CAE and prototype testing can identify a geometry or hardness change before it becomes a production issue. Assembly validation should confirm press-in force, seating, orientation, and post-installation behavior.
GJBUSH can contribute as a rubber-to-metal bushing engineering and validation resource. The relevant work may include compound selection, bonding design, static and dynamic stiffness, fatigue, press-fit behavior, process control, and change management. This capability does not establish a universal retail price or approve a generic bushing for a specific vehicle; the drawing, loads, installation method, and validation criteria still govern the programme.
Frequently Asked Questions
What is the cheapest way to replace a steering knuckle bushing?
If the housing and link are reusable, a bushing-only repair can reduce parts cost. It is economical only when the shop can diagnose the joint correctly and control the press-fit installation. A low-priced part that causes damage or repeat labor is not a low-cost repair.
Is a complete steering knuckle assembly worth the extra cost?
It can be when the housing is damaged, the bushing is not separately serviceable, a bearing is already compromised, or access makes press work high risk. Compare the total installed scope, including alignment and related hardware, rather than comparing part prices alone.
Should wheel alignment be included in the estimate?
Ask for it whenever the repair can change wheel position or steering geometry. The estimate should state whether it includes measurement only, adjustment, a before-and-after printout, and any required steering-wheel or sensor checks.
Why did the shop quote more labor than the cost of the bushing?
The part may be inexpensive while access, seized hardware, press work, cleaning, measurement, and verification take several hours. A written procedure and itemized labor line make that difference easier to evaluate.
Can I compare a dealership quote with an independent shop quote?
Yes, if the scopes match. Compare part source, included components, labor basis, press or bearing operations, alignment, warranty, and diagnosis. A lower total may simply omit one of those items.
References
- SAE International, “Target Driven Bushing Design for Wheel Suspension Concept Development,” SAE 2023-01-0638. https://saemobilus.sae.org/papers/target-driven-bushing-design-wheel-suspension-concept-development-2023-01-0638
- SAE International, “Influence of Bushing Stiffness Measurement Methodology on Axle Elasto-Kinematics,” SAE 2026-26-0094. https://saemobilus.sae.org/papers/influence-bushing-stiffness-measurement-methodology-axle-elasto-kinematics-2026-26-0094
- U.S. Bureau of Labor Statistics, “Automotive Service Technicians and Mechanics,” May 2025 wage data. https://www.bls.gov/ooh/installation-maintenance-and-repair/automotive-service-technicians-and-mechanics.htm
- RepairPal, “Suspension Control Arm Bushings Replacement Cost Estimate,” updated September 2026. https://repairpal.com/estimator/suspension-control-arm-bushings-replacement-cost
- NHTSA-hosted service campaign document, “Front Left Steering Knuckle Inspection/Replacement.” https://static.nhtsa.gov/odi/rcl/2022/RCRIT-22V906-3306.pdf
- NHTSA/Mack, “Safety Recall SC0361,” kingpin bushing replacement procedure. https://static.nhtsa.gov/odi/rcl/2012/RCRIT-12V017-4455.pdf
