In the United States, replacing external steering rack mounting bushings commonly costs about $300–$800 for parts and labor. An accessible vehicle may fall near the lower end. A design that requires the rack or front subframe to be lowered can cost $800–$1,300 or more. Wheel alignment, diagnosis, taxes, shop supplies, and electronic calibration may be extra.
That range applies only when the bushings are separately available and the steering rack itself is still sound. If the manufacturer supplies the mount only with the complete steering gear, or if the rack also leaks, binds, has internal play, or has an EPS fault, the job can become a complete rack replacement. RepairPal’s September 2026 national estimate puts that much larger repair at $2,307–$2,572 before taxes, fees, location adjustments, and related work.
The important question is therefore not simply, “How much is the rubber part?” It is: Can this vehicle receive a safe bushings-only repair, and what must be removed to perform it?

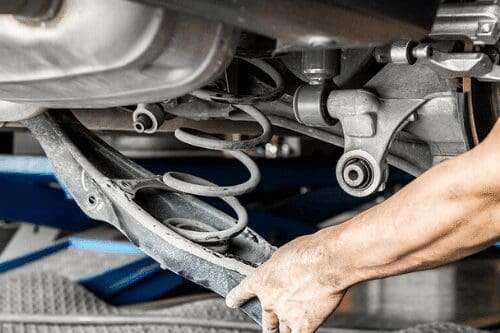

Steering rack repair cost paths
Steering Rack Bushing Replacement Cost at a Glance
Use these figures as planning ranges, not as a quote for a specific vehicle.
| Repair path | Typical U.S. planning range | What usually drives the price |
|---|
| Accessible external bushings only | $300–$600 | Low-cost bushings, direct access, limited disassembly |
| Bushings with difficult rack access | $600–$1,000 | More labor, seized hardware, brackets or shields removed |
| Bushings requiring major rack or subframe movement | $800–$1,300+ | Subframe support, steering-shaft separation, line or connector handling, alignment checks |
| Complete steering rack replacement | About $2,307–$2,572 national estimate | Expensive rack assembly plus extensive removal and installation |
| Wheel alignment, when required | About $186–$273 national estimate | Vehicle type, local labor rate, and two- or four-wheel service |
Published service estimates show why a single average can mislead. YourMechanic’s vehicle examples range from roughly the mid-$300s on some applications to more than $1,000 on others, even though the replacement part itself may be inexpensive. Its broader steering rack mounting bushing service page displays an all-vehicle price range of $374.56–$1,112 at the time of review.
RepairPal’s current wheel alignment estimate is $186–$273 nationally. Alignment is not automatically required for every clamp-style bushing job, but it should be included when the OEM procedure calls for it or when the repair disturbs tie rods, the subframe, or another geometry-setting interface.
Why Can a Small Bushing Produce a Large Labor Bill?

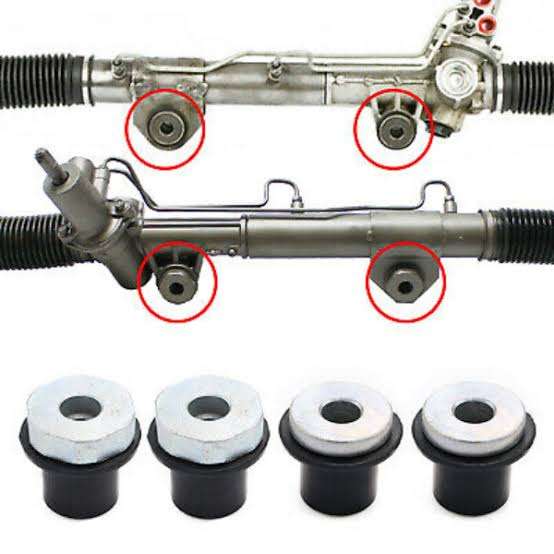

The rubber or rubber-metal component may cost far less than the labor needed to reach it. Steering racks sit low in the vehicle, between the front wheels, and often behind the engine, exhaust, underbody panels, braces, or front subframe.
On one vehicle, a technician may remove a clamp, support the rack, exchange split bushings, and reinstall the fasteners. On another, the job may require several additional operations:
- support or lower part of the front subframe;
- disconnect the steering intermediate shaft;
- move hydraulic lines or EPS electrical connectors;
- remove heat shields, braces, or exhaust components;
- press a bonded bushing from a mounting ear;
- replace torque-to-yield or corroded fasteners;
- refill and bleed a hydraulic system;
- perform a steering-angle or EPS initialization; and
- check or correct wheel alignment.
This is why two quotes for “rack bushings” can differ by hundreds of dollars without either shop necessarily being wrong. The estimates may describe different access procedures or even different parts.
What creates steering rack bushing labor

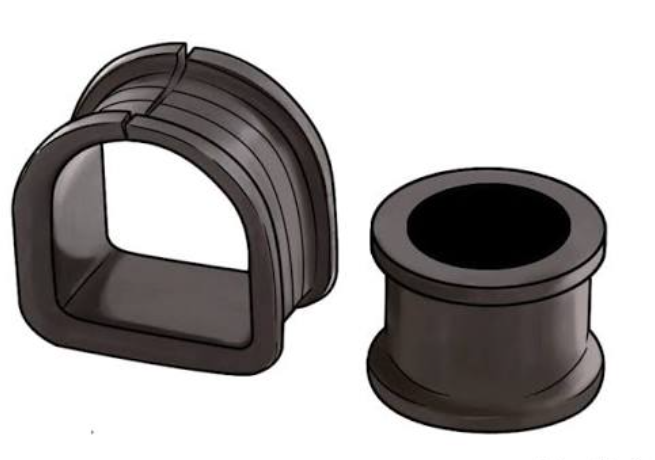

Confirm Which “Rack Bushing” the Quote Covers
The term rack bushing is ambiguous. For this cost guide, it means the external isolator that attaches the steering rack or steering gear housing to the subframe, crossmember, or body.
It does not mean:
- the internal guide bushing that supports the sliding rack bar;
- an inner or outer tie-rod joint;
- a steering-column coupling;
- a subframe bushing; or
- the complete rack-and-pinion assembly.
Ask the shop to identify the moving interface on an inspection video or with the vehicle raised safely. The technician should distinguish controlled rubber deflection from a loose bolt, a sleeve moving inside the rubber, bond separation, bracket movement, or movement inside the rack.
An OEM bulletin available through NHTSA shows that steering gear mount bushings can be serviced separately on defined GM applications. The bulletin describes a clunk or knock during steering and directs technicians to replace the steering gear bushing. That evidence proves separate service is possible on those listed vehicles; it does not mean every rack uses the same construction or procedure.
When Is a Bushings-Only Repair Reasonable?
A bushings-only repair makes sense when all of the following are true:
- The unwanted movement is confirmed at an external mounting bushing.
- The mounting bracket, rack housing, and bolt locations are not damaged.
- The rack has no material internal looseness, binding, or leakage.
- The EPS motor, torque sensor, wiring, and control system pass applicable checks.
- The correct bushings are available separately for that exact application.
- The repair method is supported by service information or a defensible engineering procedure.
This path preserves a functional steering gear and avoids paying for a complete assembly. It can also reduce the number of hydraulic, electrical, and alignment interfaces disturbed during service.
Do not select bushings-only repair merely because it is cheaper. Replacing sound mounts will not correct a leaking rack seal, worn inner gear support, damaged rack teeth, binding input shaft, failed EPS electronics, loose tie rod, worn column joint, or moving subframe.
Bushings only or complete rack decision

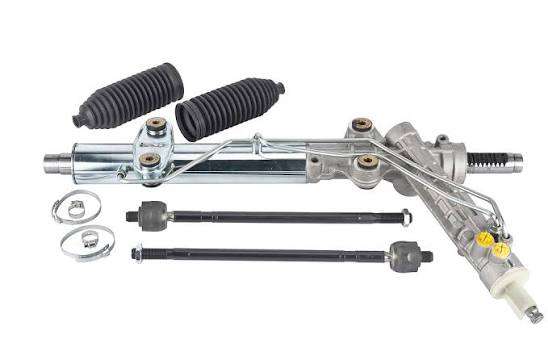

When Does the Complete Steering Rack Need Replacement?
Complete rack replacement may be justified when the steering gear has a confirmed internal or integrated-system fault, or when the mounting bushings are not supplied and approved as separate service parts.
Common reasons include:
- hydraulic fluid leaking from the rack rather than a hose connection;
- internal free play after tie rods and external mounts are isolated;
- binding, roughness, or inconsistent assist inside the gear;
- a damaged housing or mounting ear;
- an EPS motor, sensor, or controller fault that is integral to the assembly;
- collision or corrosion damage; or
- no supported way to remove and install the bushing without damaging the rack.
The cost jump is substantial. RepairPal’s rack-and-pinion replacement estimate lists $2,307–$2,572 nationally as of September 3, 2026, including $1,770–$1,784 in parts and $537–$787 in labor. The source notes that taxes, fees, location, and related repairs are not included. Vehicle-specific totals can sit well outside that range, especially for integrated electric steering gears.
Before authorizing a complete rack because “the bushings are bad,” ask whether the shop found an additional rack failure or whether the bushings are simply unavailable as approved separate parts. Those are different reasons and should appear separately on the estimate.
What Should a Written Quote Include?
Compare scope, not just the bottom-line number. The U.S. Federal Trade Commission advises consumers to ask for a written auto-repair estimate, understand whether non-original equipment parts will be used, and obtain a completed repair order.
For this job, ask the shop to list:
- the exact failed part and its location;
- whether the quote covers one bushing, a set, a bracket, or the complete rack;
- OE, OEM-equivalent, remanufactured, or other part status;
- book labor hours and the shop labor rate;
- the access work included, such as lowering the subframe;
- new bolts, nuts, sleeves, clamps, seals, or fluid;
- diagnostic charges and whether they are credited toward the repair;
- wheel alignment and before/after readings, when applicable;
- EPS initialization, steering-angle calibration, or scan work;
- taxes, shop supplies, core charges, and disposal fees; and
- parts and labor warranty terms.
A low quote that omits alignment, one-time-use fasteners, calibration, or hydraulic fluid may become the higher invoice later. A higher quote may be reasonable if it includes those items and documents why they are needed.
Does Replacing Rack Bushings Always Require an Alignment?
No universal rule covers every vehicle. If a split isolator can be replaced without disconnecting tie rods, moving the subframe, or changing rack position, the OEM procedure may call only for a steering and alignment check. If the rack, tie rods, or subframe move, an alignment is normally prudent and may be required by the service procedure.
Ask two questions:
- Which geometry-setting parts will be loosened or moved?
- Does the estimate include a before-and-after alignment report?
The same conditional logic applies to electronic procedures. Some EPS vehicles may require initialization or calibration after rack movement or battery disconnection; others may not. The year, model, steering system, and OEM instructions decide the requirement.
How to compare steering rack bushing quotes

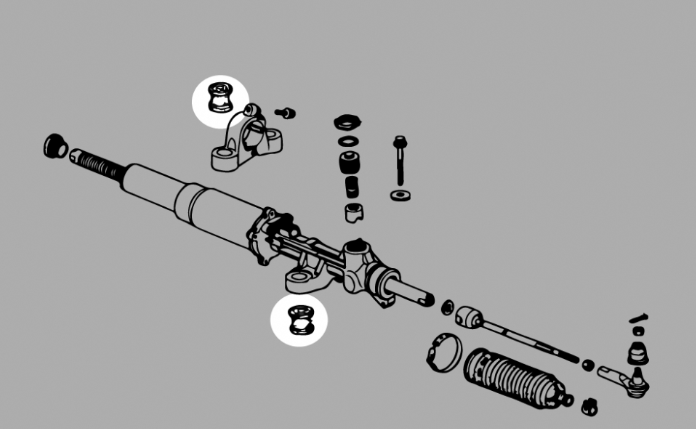

Why OE Design Decisions Affect Future Repair Cost
Service cost begins at the architecture stage. A rack mount designed with replaceable split bushings and clear tool access may be inexpensive to service. A bonded bushing inside a mounting ear, a restricted fastener path, or an integrated EPS assembly can increase labor or make the mount non-serviceable in the field.
For an OE programme, serviceability reviews should consider:
- whether the bushing is replaceable without removing the rack;
- tool and hand clearance around bolts and clamps;
- whether fasteners can be extracted with the powertrain installed;
- tolerance stack and rack-position repeatability after service;
- protection of hydraulic seals, EPS connectors, and sensors;
- the need for alignment or electronic calibration; and
- safe error-proofing for bushing orientation and sleeve installation.
The bushing still has to meet its primary engineering target. A softer mount may isolate more vibration but allow excessive rack movement. A harder mount may improve positional control but transmit more road texture, gear excitation, or impact harshness. Cost reduction cannot come from deleting the compliance needed for steering feel and NVH.
For background on that balance, see GJBUSH’s automotive NVH solutions. For work involving the complete assembly, the steering rack replacement guide explains the wider removal, installation, and verification boundaries.
How Should an OE Rack Mount Be Validated and Controlled?
An external rack bushing is a load-path component, not just a piece of rubber. Validation should connect the installed interface to vehicle behavior.
A practical plan can include:
- directional static load-displacement testing;
- dynamic stiffness or transmissibility at defined frequency, amplitude, temperature, and preload;
- fatigue testing under representative multi-axis loads;
- heat, ozone, fluid, corrosion, and aging exposure;
- sleeve retention and rubber-to-metal bond checks where applicable;
- installation-force, seating, orientation, and clamp-load verification; and
- vehicle confirmation for response, returnability, noise, vibration, and harshness.
Serial controls should then protect the approved result. Relevant controls may include compound identification, metal preparation, adhesive application, curing windows, critical dimensions, stiffness sampling, traceability, and formal change control. A material, tooling, geometry, or sub-supplier change should not be treated as harmless merely because the bushing still fits the bracket.
OE steering rack bushing development flow
Final Decision: Repair the Bushings or Replace the Rack?
Choose a bushings-only repair when the external mounts are the confirmed fault, the rack is otherwise healthy, and the correct bushings have an approved service path. A reasonable U.S. planning budget is about $300–$800, with difficult-access applications reaching $800–$1,300 or more.
Choose complete rack replacement when the rack has an internal, hydraulic, structural, or integrated EPS fault, or when the mount is not separately serviceable. The current national planning estimate is about $2,300–$2,600, before location-specific additions.
For a repair quote, provide the shop with the VIN and ask for the failed interface, parts list, labor hours, alignment/calibration scope, fees, and warranty in writing. For an OE or custom rack-mount project, send GJBUSH the application, interface drawing or sample, steering-system type, load directions, stiffness/NVH targets, environment, validation requirements, programme volume, and timing. That information allows the mount to be evaluated as an engineered joint rather than only as a replacement part.
Frequently Asked Questions
Are steering rack bushings expensive?
The bushings themselves are often inexpensive. Access, disassembly, corrosion, alignment, and calibration usually create most of the bill.
Can I replace only one steering rack bushing?
It depends on the service procedure and the condition of the remaining mounts. Many kits are supplied as a set because the bushings share the same age and load history. Follow the application-specific parts listing and inspect every mounting point.
Can bad rack bushings feel like a bad steering rack?
Yes. Mount movement can create a clunk, delayed response, or a loose sensation. Similar symptoms can also come from tie rods, column joints, the subframe, or internal rack wear, so the moving interface must be observed before parts are ordered.
Is it safe to drive with worn steering rack bushings?
Steering is safety-critical. If the rack housing moves visibly, fasteners are loose, steering response changes, or the vehicle clunks under steering load, arrange a professional inspection promptly. Stop driving if control is unpredictable or a technician identifies an unsafe mounting condition.
