A steering rack mounting bushing supports the steering-gear housing on the frame or subframe. A tie rod bushing, where the linkage actually uses an elastomeric joint, works at a connection within the steering linkage. The first controls housing movement relative to its support; the second controls relative movement at a steering-force-transmitting connection.
The names alone are not enough to identify the parts. “Rack bushing” may also mean an internal rack support bearing. “Tie rod bushing” may be used for a joint liner, an elastomeric connection or even an incorrectly identified dust boot.
This comparison uses steering rack bushing to mean an external housing mounting bushing. It uses tie rod bushing for an actual elastomeric linkage connection where specified by the design. Conventional tie rod ball joints remain a separate component category.
Identify the Connection Before Comparing the Parts
Start with an assembly drawing and ask which two components the part connects.

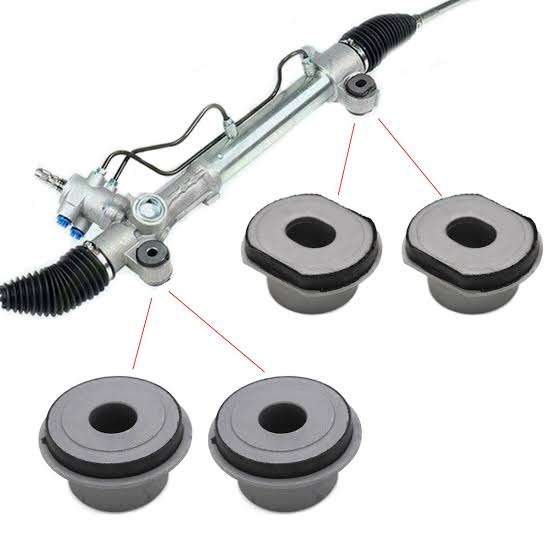

An external rack mounting bushing sits between the steering-gear housing and its mounting structure. An internal rack support bearing guides the moving rack inside the housing. These parts have different interfaces and functions despite sharing the word “rack.”

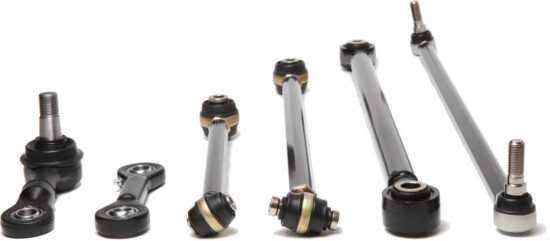

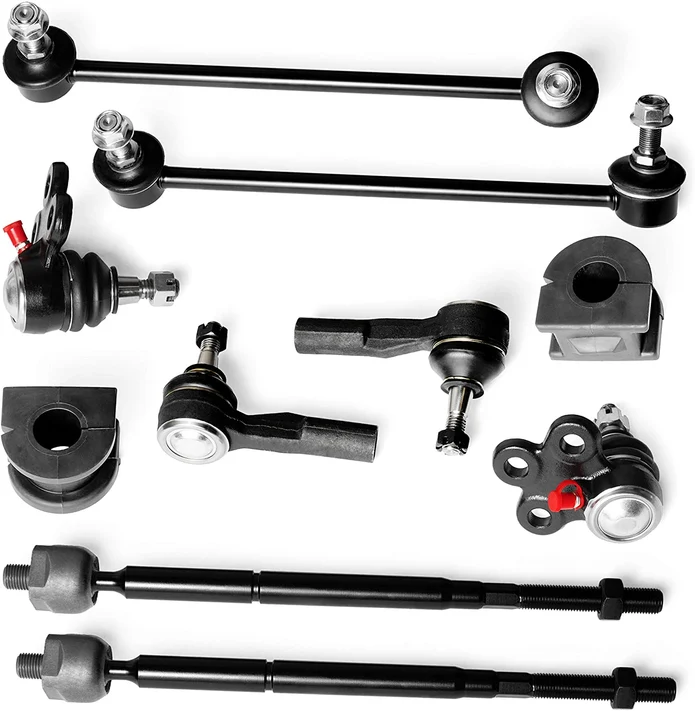

A conventional tie rod end contains a ball-and-socket joint that permits angular movement while transmitting steering force. Its bearing liner supports the ball. Its flexible boot helps retain lubricant and exclude contamination. Neither should automatically be described as a rubber-to-metal isolation bushing.
Volkswagen’s 2014 CC steering-gear overview, printed page 64, separately identifies the tie rods, tie rod ends, boots and bonded rubber bushings. That separation is useful: parts located on the same assembly do not perform the same job.
Elastomeric connections within steering linkages are a distinct design possibility. For example, published steering-linkage design KR19980058059U describes a rubber bushing at a tie-rod-to-knuckle-arm connection. It demonstrates an architecture, not widespread production use or applicability to a particular vehicle.
If a drawing shows a ball joint, analyze a ball joint. If it shows a bonded or otherwise retained elastomeric joint, analyze that specific connection.
Identify the steering connection
The Main Differences at a Glance
The linkage column below applies only to a design that actually specifies an elastomeric joint.
| Comparison point | Steering rack mounting bushing | Elastomeric tie rod or linkage bushing |
|---|
| Connected components | Steering-gear housing and frame, cradle or subframe | Two members at a specified linkage connection |
| Main mechanical role | Locate the housing and carry mounting reactions while controlling vibration transmission | Transmit steering force while accommodating the connection’s permitted relative movement |
| Movement of interest | Housing translation and rotation relative to its support | Relative displacement and rotation across the local joint |
| Engineering consequence of deformation | Changes the position of the housing from which rack travel is delivered | Changes the relationship between the two connected linkage members |
| Important interfaces | Housing, bushing, sleeve or clamp, fastener and supporting bracket | Joint members, elastomer, retaining features and any sleeves or shells |
| Useful measurement | Housing movement relative to the local frame or subframe | Movement across the two sides of the actual joint |
| Basis for specification | Mount reaction loads, housing-motion limits and vibration targets | Joint loads, required articulation, displacement limits and retention requirements |
Neither component can be selected from outside diameter or rubber hardness alone. A suitable design depends on the load direction, installed constraints, available travel and effect on the complete steering system.
Different Positions Create Different Load Paths

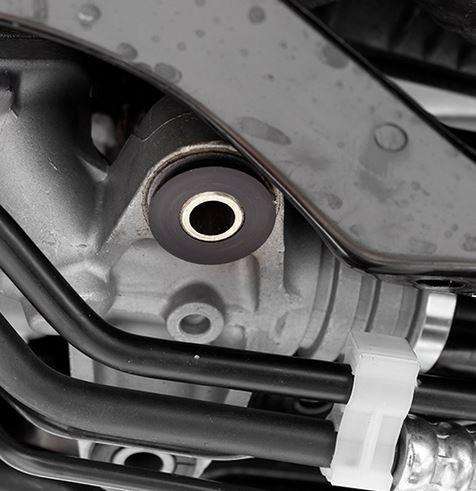

Rack Mounts Establish the Housing’s Reference Position
The rack bar moves inside the housing to actuate the linkage. The housing must react the forces associated with that operation through its mounting system.
If the housing translates or rotates under load, its movement combines with the rack’s travel relative to the housing. The linkage therefore sees a different motion than it would with an ideally fixed housing.
Multiple mounts share forces and moments. Their spacing, directional stiffness and supporting bracket stiffness all influence the result. A single axial stiffness value for one loose bushing cannot describe the installed mounting system.
An SAE study of steering-housing rubber bushings used a three-dimensional vehicle model to investigate how steering-system compliance affects handling response. It supports evaluating housing support as part of the vehicle system; it does not supply a universal mounting-stiffness target.
A Linkage Bushing Acts at a Local Force-Transmitting Connection
Where an elastomeric joint is used in the linkage, its deformation occurs between the connected members. Depending on its orientation, displacement may change the joint-center position, the effective linkage geometry or the way articulation is accommodated.
Consider a sleeve-type bonded joint as one possible arrangement. Relative movement between its inner member and outer member strains the rubber. That behavior differs from angular movement produced by a ball sliding or rotating in a bearing seat.
The relevant stiffness directions come from the installed geometry. “Radial” and “axial” usually refer to the bushing’s own axes; they do not automatically correspond to vehicle lateral and longitudinal directions.
Vibration Transmission Is Also a System Question
GM’s bulletin 16-NA-339, December 2017, page 7 documents a vibration path through the tie rods, steering rack, mounting bushings, frame and body structure for specified vehicles. It describes a revised hydraulic rack mounting bushing for that application.
The bulletin also requires the tire-related source to be addressed first. Its engineering lesson is to distinguish the excitation source from the path carrying the vibration. It does not establish that changing either type of bushing will cure every steering or cabin vibration.
Housing support and linkage load paths
How a Small Displacement Can Affect Wheel Angle
A useful first estimate separates two steps: force produces displacement, then the steering geometry converts that displacement into angular change.
For an idealized, locally linear connection:
u = F ÷ k
Here, F is force in the chosen direction, k is effective stiffness in that same direction and u is relative displacement.
For a small wheel-angle change:
Δθ ≈ Δs ÷ r_eff
Here, Δs is the equivalent steering-link displacement affecting the wheel, and r_eff is the effective steering lever arm for that displacement. The angle is in radians.
Importantly, u and Δs are not automatically equal. A housing translation, a housing rotation and a local joint displacement have different geometric effects. A vehicle model must transform each measured displacement into its contribution at the wheel.
A Hypothetical Example
Assume a single connection is loaded in a direction that maps one-to-one into equivalent steering-link displacement. Hold all other geometry fixed.
Use these invented inputs:
- Force: 600 N.
- Effective connection stiffness: 3,000 N/mm.
- Effective steering lever arm: 120 mm.
Then:
u = 600 ÷ 3,000 = 0.20 mm
Δθ ≈ 0.20 ÷ 120 = 0.001667 rad ≈ 0.0955°
With stiffness increased to 6,000 N/mm, the same imposed force gives 0.10 mm displacement and approximately 0.0477° angular change.
These numbers are illustrative. They are not GJBUSH test results, vehicle specifications or acceptance limits.
The example shows why submillimeter connection movement can matter. It does not predict total toe change, steering-wheel free play or dynamic response. Those require the actual left/right geometry, boundary conditions and contributions from other components.
For the rack mounting system, use its reaction forces and housing-motion geometry. For a linkage bushing, use the local joint force and motion relationship. Do not assume they carry the same force merely because both are in the steering system.
Higher Stiffness Is Only One Part of the Decision
The simple calculation holds force constant. In a complete vehicle, changing a stiffness can redistribute loads and alter vibration transmission.
It also says nothing about damping, frequency dependence or articulation limits. Doubling a static stiffness does not establish that steering quality has doubled or that vibration isolation has improved.
From connection displacement to wheel angle
Elastic Compliance, Hysteresis and Play Are Different
A healthy elastomeric joint is intended to deform. Observing movement is therefore not enough to classify it as loose.
Elastic compliance describes deformation under force. In the ideal elastic case, removing the force removes the deformation.
Hysteresis means the unloading path differs from the loading path. Rubber can show this behavior through its material response, without a mechanical gap opening between parts. Experimental research on rubber-spring amplitude and frequency dependence illustrates why stiffness, energy loss and loop shape need defined test conditions.
Mechanical play involves clearance that permits relative motion before the relevant surfaces carry load in the opposite direction. It is different from continuously resisting a load through elastic deformation.
Interface slip is another possibility. A sleeve, shell or clamped surface may move relative to a surface intended to retain it. That movement can add a loop or offset to the assembly response.
The engineering implication is that a force–displacement loop alone cannot identify which mechanism is responsible.
| Observation during controlled testing | Possible explanation | Evidence needed to distinguish it |
|---|
| Smooth, repeatable movement with a load-dependent slope | Intended compliance | Compare with the approved response under the same conditions |
| Different loading and unloading paths | Material hysteresis, friction or both | Measure interface motion and control loading rate and temperature |
| Motion near reversal with little force change | Clearance, low local stiffness or friction-related behavior | Locate movement across individual interfaces; do not infer a gap from curve shape alone |
| A shifted position after unloading | Delayed recovery, permanent set or interface slip | Measure recovery over a defined time and inspect the retention interfaces |
| A sudden change in response | Contact engagement, slip or damage | Correlate the event with local displacement and physical inspection |
A bonded joint can have zero designed clearance and still be compliant. Conversely, a damaged assembly can retain substantial stiffness after a gap has closed. One stiffness measurement at a high load may therefore miss a problem near reversal.
Measure Across Interfaces to Locate the Movement
An engineering test should distinguish the movement of each connection from the movement of the fixture and surrounding structure.
1. Define the Installed Boundary Conditions
Record the mounting arrangement, clamp condition, sleeves, installation orientation, steering position and relevant preload. Define temperature, loading direction, rate, amplitude and conditioning history.
A loose component test and an installed assembly test may constrain the rubber differently. Their results should not be treated as interchangeable without accounting for those differences.
2. Measure Housing Movement Against a Local Reference
Measure the steering-gear housing relative to the frame or subframe close to its supports.
Use enough measurement points to separate translation from rotation. A single displacement reading can miss housing rotation or combine it with translation.
If the supporting structure also moves, measure that separately. Referencing the housing only to the test-machine base may combine mount deformation, subframe deformation and fixture deflection.

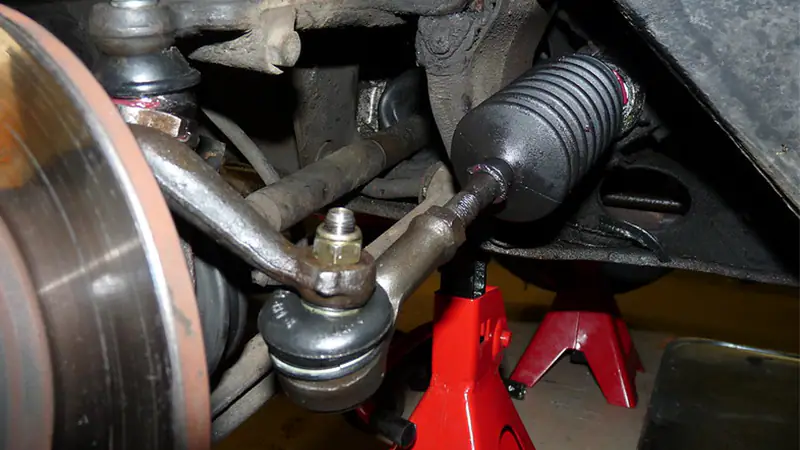

3. Measure Across the Actual Linkage Joint
For an elastomeric linkage joint, measure relative movement between the two members it connects. Where accessible, additional measurements can distinguish rubber deformation from sleeve, shell or fastening-interface movement.
For a ball joint, use the applicable joint-clearance and articulation measurements. A measurement across its dust boot does not measure the load-bearing connection.
Record wheel or knuckle angle as a separate output. This allows the local displacements to be related to the complete assembly response.
4. Apply Controlled Load Reversals
Load in both directions within the defined test envelope, then unload. Record force, local displacement and angular response together.
Use repeatable conditioning cycles and a stated recovery interval. Otherwise, a difference between two tests may reflect material history or temperature instead of a changed component.
Check sensor resolution, fixture stiffness and alignment against the movement being investigated. A small apparent dead zone is not meaningful if the measurement setup has comparable looseness.
Locate movement with interface measurements
Compare Function Before and After Durability Testing
A new bushing can meet dimensional and hardness requirements yet change its functional response during service. Validation should therefore compare more than appearance before and after the specified loading and environmental exposure.
Establish a baseline, perform the defined test sequence, then repeat the functional measurements under matched conditions.
| Measurement | Why the before/after comparison matters |
|---|
| Force–displacement response | Detects changes in stiffness, nonlinearity and asymmetry |
| Reversal response | Helps identify new lost motion or changes in friction and contact behavior |
| Unloaded position after a stated recovery time | Separates immediate response from longer-term recovery or persistent displacement |
| Dynamic stiffness and loss behavior at specified conditions | Checks whether vibration-related behavior has changed |
| Local interface movement | Helps distinguish material changes from loss of retention |
| Bond and component condition | Correlates the measured response with cracking, separation or physical damage |
ASTM D5992 provides guidance for dynamic testing of vulcanized rubber and similar materials. It can inform measurement planning, but it does not define a universal steering-bushing durability limit.
The sequence should reflect the project’s question. Environmental conditioning followed by fatigue investigates a different history from fatigue followed by conditioning. Testing at an elevated temperature and retesting after cooling also answer different questions.
Define allowable changes from the steering-system requirements and the validated design. Avoid generic rules such as “a certain percentage of stiffness loss is acceptable for every bushing” or “no visible crack means the function is unchanged.”
Transfer the Validated Boundary Conditions Into Production
The approved component response depends on more than compound hardness. Geometry, sleeve position, bonded interfaces and manufacturing variation can affect its installed behavior.
Identify the characteristics that support the validated response and control them through the production plan. Confirm that the production measurement method can detect relevant variation.
For assembly-controlled characteristics, such as clamping and orientation, the component supplier and assembly team need a shared definition. A capable component process cannot compensate for an undefined installation condition.
Verify retained steering function
What to Include in an OE Engineering Discussion
For a discussion with GJBUSH about a rubber bushing project, identify the connection before specifying the material.
Provide the assembly location, the two connected members, interface drawings, load directions, required movement and installed constraints. Add the target force–displacement response, relevant vibration conditions and before/after durability criteria.
If the part is described as a “tie rod bushing,” include its section drawing or assembly reference. This establishes whether the project concerns an elastomeric linkage joint, a bearing liner or another component.
For the wider relationship between chassis connections and vibration, see GJBUSH’s automotive NVH solutions.
The practical distinction is the connection being controlled: a rack mounting bushing governs housing movement relative to its support, while an elastomeric linkage bushing governs movement across its particular joint. Their performance should be compared through those interfaces and their contribution to steering response.
