A steering rack bushing mounts the steering rack or steering gear housing to the vehicle structure. It has two jobs that must work together: keep the rack correctly located under steering load and reduce unwanted noise, vibration, and harshness (NVH) passing into the body and steering wheel.
The bushing should not let the whole rack shift loosely. It provides controlled elastic movement, not free play. Its stiffness, shape, sleeve design, clamp condition, and installation geometry affect steering response as well as cabin comfort.
This article covers the external mounting bushing between the rack housing and the subframe, crossmember, or body. It does not cover the low-friction guide bushing inside the rack housing.

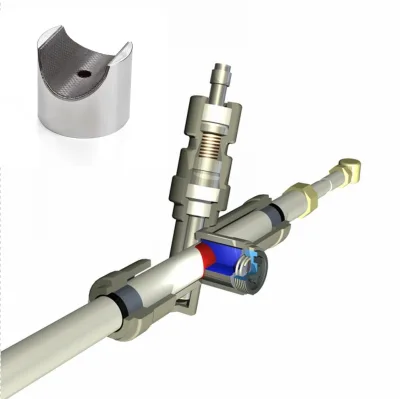

External mount versus internal rack guide

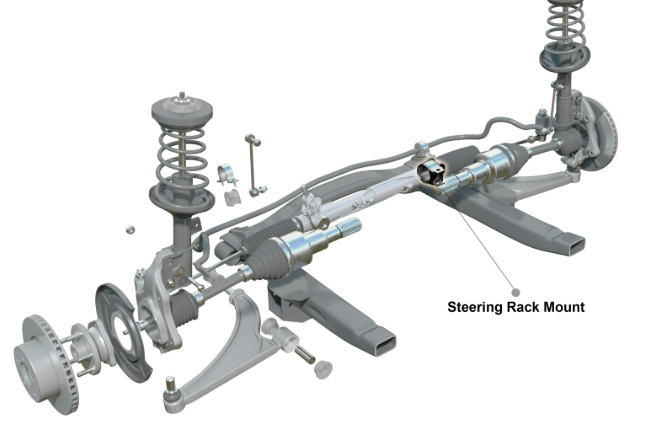

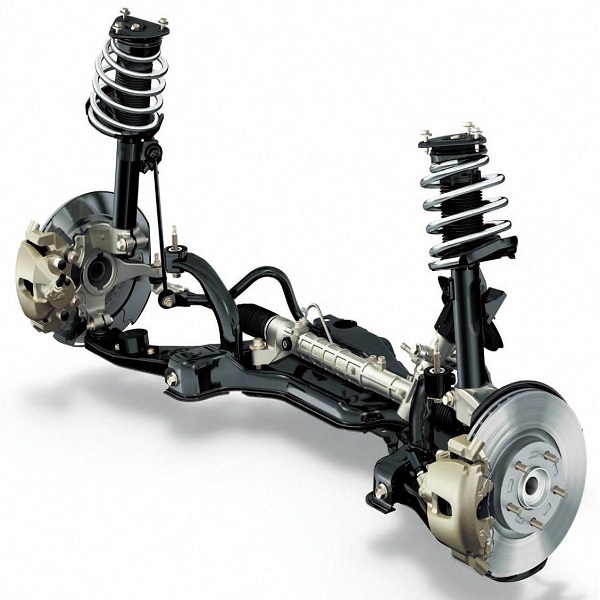

Where Is the Steering Rack Bushing Located?
The steering rack connects the left and right tie rods. As the driver turns the wheel, the pinion and assist system move the rack laterally. The tie rods then steer the road wheels. The rack housing needs firm attachment points so that this motion becomes wheel movement instead of housing movement.

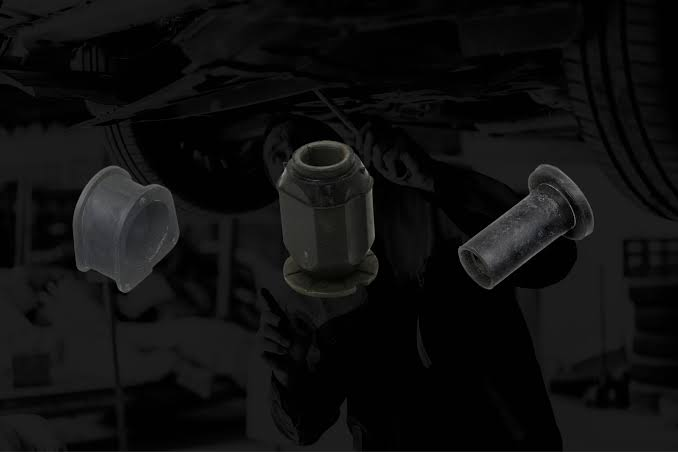

External rack bushings sit at those attachment points. Common designs include:
- rubber around a metal inner sleeve;
- rubber-metal bushings pressed into a steering gear mounting ear;
- split isolators clamped around part of the housing;
- bonded or mechanically retained bushings; and
- hydraulic bushings tuned for a defined vibration range.
Names vary by vehicle. Parts catalogues may use steering rack mounting bushing, rack-and-pinion bushing, steering gear mount bushing, or steering rack insulator.
| Part often called a “rack bushing” | Location | Main job |
|---|
| External mounting bushing | Between rack housing and vehicle structure | Locate the housing and manage vibration transfer |
| Internal rack guide bushing | Inside the rack tube | Support sliding rack motion and control internal clearance |
| Tie-rod joint or bushing | Between rack end, tie rod, or steering linkage parts | Transfer steering force through a joint |
These parts are not interchangeable. A search result or repair note that says only “rack bushing” is incomplete until the location is confirmed.
The Four Main Functions of a Steering Rack Mounting Bushing
1. Hold the rack housing in a controlled position
Steering forces enter the rack through the pinion, assist mechanism, tires, and tie rods. The mounting system reacts those forces into the subframe or body. If the housing moves more than intended, some steering input is spent moving the rack assembly before it changes road-wheel angle.
The bushing therefore helps control rack position under left and right steering loads, road impacts, braking inputs, and structural movement. The mounting brackets, bolts, sleeves, and surrounding structure are part of the same load path.
2. Preserve steering response and feedback
The rack is a major link in the steering feedback path. An SAE study on steering rack force and driver feedback explains that road-induced tie-rod and rack forces contain information used in the steering system response.
Mount compliance influences how clearly and how quickly those forces pass through the system. Excess housing displacement can make response feel delayed or vague. A fully rigid path, however, may transfer disturbances that the driver does not need.
3. Reduce unwanted NVH transmission
Road inputs can travel from the tires through the tie rods and rack into the vehicle structure. Electric motor activity, gear mesh, hydraulic pressure pulsation, tire force variation, and surface impacts may also excite the steering system.
An OEM bulletin for specified GM light-duty SUVs documented a vibration path from the tie rods through the rack, rack bushings, frame, body mounts, floor, and seats. GM released a revised hydraulic mounting bushing tuned for the identified vibration frequency. The bulletin also required the primary tire-related source to be corrected first. This application-specific steering gear bushing case shows two important points: the mount can be part of an NVH path, and a tuned bushing is not a universal cure for vibration.
4. Protect interfaces from direct metal contact
Where the design uses an elastomeric isolator, it can prevent direct metal-to-metal contact between the steering gear and its mounting structure. The sleeve and clamp system also distribute the bolt load through the intended surfaces.
This function depends on correct assembly. A missing sleeve, damaged bracket, wrong bolt, poor seating, or insufficient clamp load can change the joint even when the rubber itself appears usable.
Steering load and NVH paths
Why “Harder Is Better” Is the Wrong Rule
A rack mount has to balance position control and isolation. The correct target is not the highest possible hardness.
If the mount is too compliant for the application, the rack housing may move too far under force. This can reduce on-center precision or change the relationship between steering-wheel input and road-wheel response. If the mount is too stiff, more road texture, impact energy, gear noise, or motor-related vibration may pass into the structure.
The useful specification is a load-displacement or stiffness target under defined conditions, not a material name alone. Engineers may need to consider:
- stiffness in lateral, vertical, fore-aft, and torsional directions;
- dynamic stiffness over relevant frequency and amplitude ranges;
- damping or vibration transmissibility;
- rubber geometry, voids, flanges, and metal sleeves;
- installed compression and bolt clamp load;
- temperature and aging state; and
- interaction with subframe and body-mount compliance.
Rubber is viscoelastic, so its response changes with time, temperature, frequency, and deformation. ISO 4664-1:2022 gives general guidance for determining the dynamic properties of vulcanized and thermoplastic rubber through free- and forced-vibration methods on materials and products.
Steering rack bushing stiffness trade-off
Does the Bushing Work Differently in EPS and Hydraulic Steering?
The core job remains the same: locate the steering gear and control vibration transfer. The design inputs can differ.
| System | Relevant design considerations |
|---|
| Electric power steering (EPS) | Motor and gearbox mass, electrical connector clearance, motor/gear excitation, software-assisted steering feel, and the complete rack-force feedback path |
| Hydraulic power steering (HPS) | Hydraulic-line routing, pump and pressure pulsation, fluid or oil exposure, temperature, leakage risk, and hose-generated loads |
For HPS, a leak should be corrected rather than treated only as a bushing problem. The elastomer must be compatible with the actual fluids and temperatures at the installation. For EPS, assembly procedures must protect motor housings, connectors, sensors, and wiring.
No stiffness value or material choice can be copied safely from one steering system to another without confirming geometry, mass, load, frequency, and vehicle targets.
Normal Elastic Movement Is Not the Same as Failure
Rubber is supposed to deform. Visible movement under load is not automatically a defective bushing. The question is whether the movement is controlled, repeatable, and within the vehicle-specific acceptance method.
Possible warning signs include a clunk during steering load reversal, delayed response, an unusual steering-wheel vibration, or visible separation at the mount. None of these signs confirms the bushing by itself. Similar complaints can come from:
- loose or damaged mounting hardware;
- inner or outer tie-rod joints;
- ball joints or control-arm bushings;
- tire and wheel force variation;
- subframe or body-mount movement;
- internal rack clearance;
- steering-column joints; or
- EPS motor, sensor, or hydraulic-system faults.
A useful inspection identifies the exact moving interface. It should distinguish rubber deflection from sleeve movement, bolt movement, bracket deformation, bond separation, or housing shift. The vehicle must be supported and loaded as required by the OEM procedure.
Normal movement versus mounting failure
How Should an OE Steering Rack Bushing Be Validated?
One test cannot represent the complete function. A practical validation plan connects the component, assembly, and vehicle levels.
| Validation level | What to measure | Why it matters |
|---|
| Interface review | Mount geometry, tolerance stack, sleeve and bracket contact, fastener path | Confirms that the part can be installed and clamped as designed |
| Static load-displacement | Directional force versus movement in the installed state | Checks rack-location and compliance targets |
| Dynamic response | Dynamic stiffness, damping, or transmissibility at defined frequency, amplitude, and temperature | Evaluates the NVH path under realistic excitation conditions |
| Durability and aging | Cyclic loading, temperature, ozone, corrosion, and applicable fluid exposure | Checks whether performance remains stable over service conditions |
| Assembly verification | Seating, orientation, installed compression, clamp load, and process repeatability | Prevents a correct part from becoming a poor joint |
| Vehicle confirmation | Steering response, returnability, on-center feel, noise, vibration, and objective measurements | Confirms that component results work in the complete system |
Test conditions must be recorded. A dynamic-stiffness number without direction, frequency, amplitude, temperature, and preload is not a complete acceptance criterion.
From Prototype to Stable Production
After approval, the supplier must transfer the target into repeatable production controls. The control plan may need to cover:
- rubber compound identification and batch traceability;
- metal sleeve and housing dimensions;
- metal preparation and rubber-to-metal bonding where applicable;
- molding or curing process windows;
- installed geometry and orientation features;
- static and dynamic performance sampling;
- durability or aging audit tests;
- nonconformance handling; and
- formal approval of material, geometry, tooling, process, or sub-supplier changes.
AIAG’s current APQP guidance highlights sourcing, change management, risk mitigation, gated management, and part traceability. Its APQP and Control Plan overview also describes the Control Plan as a separate tool linked to the APQP process.
GJBUSH’s automotive NVH solutions provide the wider rubber-to-metal engineering context for this type of project. If the task is a complete rack service rather than bushing development, use the separate steering rack replacement guide and the vehicle’s official repair information.
Steering rack mount development flow
What Information Should an Engineering RFQ Include?
For a new or revised steering rack mounting bushing, provide:
- vehicle platform, steering system type, installation position, and OE reference;
- interface drawing, CAD data, tolerance stack, or physical sample;
- load directions and target load-displacement curves;
- dynamic-stiffness or transmissibility targets with test conditions;
- temperature, fluid, ozone, corrosion, and durability requirements;
- rack, subframe, fastener, and installation details;
- required component and vehicle validation;
- prototype and production volumes; and
- programme timing, documentation, and PPAP level.
These inputs turn a vague request for a “harder bushing” into a measurable steering and NVH requirement.
Frequently Asked Questions
Does a steering rack bushing move?
Yes. An elastomeric mount can deform under load. That controlled deformation is different from loose bolts, sleeve slip, bracket movement, torn rubber, or bond separation. Use the vehicle-specific inspection method to decide whether movement is acceptable.
Will a stiffer steering rack bushing improve steering feel?
It may reduce rack-housing displacement, but it may also transmit more noise, road impact, or vibration. The result depends on direction, frequency, amplitude, installation, and the complete steering and body system.
Is a steering rack mounting bushing the same as an internal rack bushing?
No. The mounting bushing connects the steering gear housing to the vehicle structure. An internal guide bushing supports the sliding rack inside the housing and controls internal clearance and friction.
Can bad rack bushings cause loose steering?
Excess movement at a failed mount can contribute to delayed or inconsistent response. However, steering looseness has many possible causes. The rack mounts, fasteners, tie rods, joints, steering column, tires, and internal gear condition must be checked before assigning the fault.
